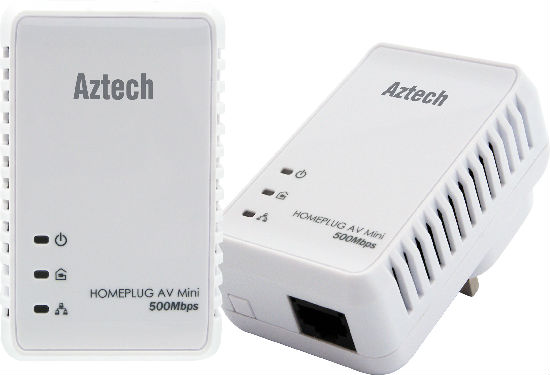

HomePlug AV 500Mbps Ethernet Adapter
Model No.: HL117E

The HomePlug extends Internet access through powerline, thus providing a fast and reliable cable-free solution to extend Internet access of up to 500Mbps. With a "Simple Connect" button, Aztech HL117E allows users an easy and hassle-free set up without configuration or software required. In addition, it is supported with 128-bit AES Hardware encryption, which ensures that the network communications is secure and free from eavesdroppers and hackers.

 Standards

• IEEE 1901/HomePlug AV compliant
• Co-existence with HomePlug 1.0 nodes
• Compliant to EuP requirements
• IEEE 802.3 10/ 100/1000 Ethernet
• IEEE 802.3az support

Frequency Band

• 2MHz to 68MHz band

Modulation Support

• Supports OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK and ROBO modulation schemes

Data Transfer Rate

• UP to 500Mbps over powerline

Frequency Band

• 2MHz to 30MHz band

Modulation Support

• Supports OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK and ROBO modulation schemes

Security

• 128-bit AES link encryption with key management

Hardware

• Qualcomm Atheros AR7420 + AR1540 chipset

LED Indicators

• Power, powerline and Ethernet LED indicators for displaying the current mode.

External Connectors

• 1 x Electrical power plugs
• 1 x RJ45 for 10/100 Ethernet

Push Button/Switch

• 1 x Configuration push button (for simple connect and factory default reset)

Measurements

• Dimension: 85(H) x 53(W) x 30(D)mm

Power Consumption

• 2.5 Watt (230Vac)

Power Supply

• Switch mode 100V-240V Supply for Europe/UK/US/AUS plugs

Temperature

• Operating: 0°C to 40°C
• Non-operating: -25°C to 70°C

Humidity

• Operating: 30% to 80% relative humidity (Non-condensing)
• Non-operating: 30% to 95% relative humidity (Non-condensing)

Operating Systems

• Windows 98SE/ME/2000/XP 32bit/Vista 32bit, Window 7(32/64-bit)
