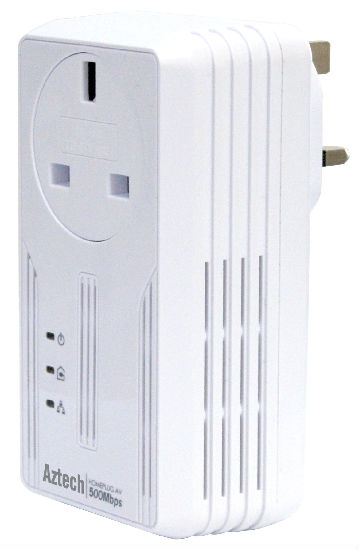

HomePlug AV 500Mbps Pass Through
Model No.: HL115EP

This power-line adapter is capable of delivering wired data transfer rates of up to 500Mbps. It also comes with an encryption key for protecting the network from unauthorized wire-tapping. Plug this adapter directly into a power outlet and instantly transforms your home's existing electrical circuit into a stable wired network.

Standards

• Powerline: HomePlug AV
• Ethernet: IEEE 802.3 10/ 100/1000 Ethernet (1Gbps)
• Energy saving: EuP compliance

Protocals

• Powerline: CSMA/CA over powerline in your home

Modulation Support

• Powerline: OFDM 4096/1024/256/64/16/8 QAM, QPSK, BPSK and ROBO modulation scheme

Data Transfer Rate

• UP to 500Mbps over powerline

Range

• Up to 200m over powerline

Security

• Utilise Windows 98SE, 2000, ME, XP 32bit, Vista 32bit, Window 7 to enable encryption

Hardware

• Atheros AR7400 + AR1500 chipset

LED Indicators

• Power, powerline and Ethernet LED indicators for displaying the current mode.

External Connectors

• 1 x Electrical power plugs
• 1 x RJ45 for 10/100/1000 Ethernet (Auto MDI/MDI-X)
• 1 x AC Pass-through power socket

Measurements

• Dimension: 62mm x 116mm x 42mm
• Weight: 200g

Power Consumption

• Normal: 4.5 Watt (230Vac)
• Power save: 0.44 Watt average

Power Supply

• Switch mode 220V-240V supply for Europe/France/Germany/UK plugs

Temperature

• Operating: 0°C to 40°C
• Non-operating: -25°C to 70°C

Humidity

• Operating: 30% to 80% relative humidity
• Non-operating: 30% to 95% relative humidity

Operating Systems

• Windows 98/98SE/ME/2000/XP/Vista (32/64-bit)

Regulatory Approvals

• Asia Pacific/Europe: CE, IEC60950, IDA
