HomePlug AV 500Mbps with Pass Through
Model No.:
HL117EP
Brand:
Aztech
Size:
116(H) x 62(W) x 42(D)mm
Description
Contact Supplier
Description

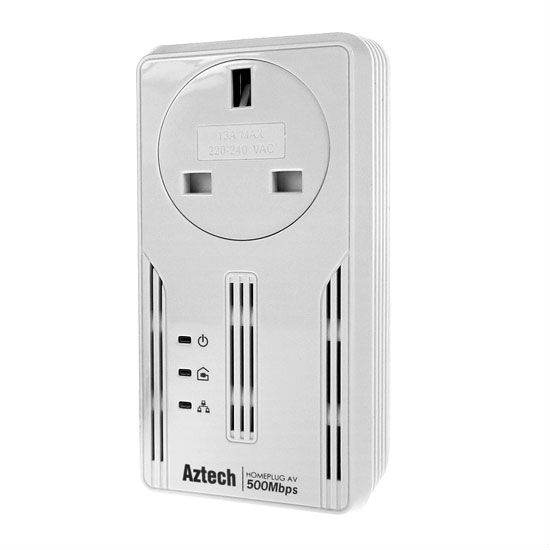

HomePlug AV 500Mbps with Pass Through
Model No.: HL117EP
The HomePlug extends Internet access through powerline, thus providing a fast and reliable cable-free solution to extend Internet access of up to 500Mbps. With a "Simple Connect" button, Aztech HL117EP allows users an easy and hassle-free set up without configuration or software required.
Protocal/Standards
Model No.: HL117EP
The HomePlug extends Internet access through powerline, thus providing a fast and reliable cable-free solution to extend Internet access of up to 500Mbps. With a "Simple Connect" button, Aztech HL117EP allows users an easy and hassle-free set up without configuration or software required.
Protocal/Standards
- IEEE 1901/HomePlug AV compliant
- Co-existence with HomePlug 1.0 nodes
- Compliant to EuP requirements
- IEEE 802.3 10/ 100 Ethernet
- IEEE 802.3az support
- UP to 500Mbps over powerline
- Supports OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK and ROBO modulation schemes
- 2MHz to 68MHz band
- Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
- Integrated Quality of Service (QoS) Enhancements
- Hardware pocket classifiers for ToS, CoS and IP port number
- Supports IGMP managed multicast session
- HomePlug AV generic and vendor specific Management Message Entries (MME)
- 128-bit AES Link Encryption with key management
- Frequency band 2MHz to 68MHz (TBD)
- Filter characteristics: -25dB to -45dB (TBD)
- Current rating: 13A max(UK), 16A max(DEU), 10A max(AUS)
- SPI Flash: 2MB
- Qualcomm Atheros AR7420 + AR1540 chipset
- OS Independent with TCP/IP protocol installed
- Switch mode 100V-240V supply for Europe/UK/AUS plugs
- 1 x Electrical power plugs
- 2 x RJ45 for 10/100 Ethernet
- Polycarbonate, FR rating UL94-Vo
- 2.5 Watt (230Vac)
- Windows 98SE/ME/2000/XP 32bit/Vista 32bit, Window 7(32/64-bit)
- Operating: 0°C to 40°C
- Non-operating: -25°C to 70°C
- Operating: 30% to 80% relative humidity (Non-condensing)
- Non-operating: 30% to 95% relative humidity (Non-condensing)
