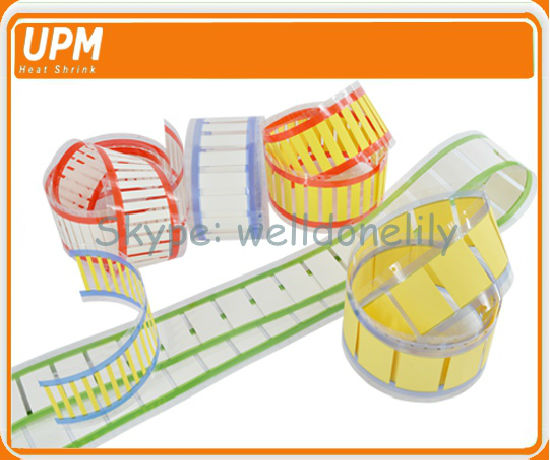

IDS-HF125 halogen free heat shrinkable polyolefin identification sleeves
Features
• Cross linked polyolefin
• Flexible, flame retardant
• Excellent printing property, permanent identification
• Easy to be printed Excellent electrical, physical, chemical and printing properties.
• Halogen free, RoHS and REACH compliant
• Operating temperature: -55~125 ℃
• Shrink temperature:110 ℃
• Shrink Ratio：2:1& 3:1
Typical application
• Special designed to meet the requirements of identification of wire and cables
Ordering
• Standard color : White, Yellow

Dimensions
Reference As supplied(mm)After recovered(mm)Size for conductor
UPM IDS-HF125 IDmin. ID max. mm
Shrink ratio: 2:1
2.4 2.4 1.2 1.3-2.3
3.2 3.2 1.6 1.7-3.1
4.8 4.8 2.4 2.5-4.7
6.4 6.4 3.2 3.3-6.3
9.5 9.5 4.8 4.9-9.0
12.7 12.7 6.4 6.6-12.0
19.1 19.1 9.5 10.0-18.5
25.4 25.4 12.7 13.0-24.5
38.1 38.1 19.1 21.0-37.0
50.8 50.8 25.4 27.0-48.0
Shrink ratio: 3:1
2.4 2.4 0.8 0.9-2.0
3.2 3.2 1.1 1.1-2.7
4.8 4.8 1.6 1.8-4.1
6.4 6.4 2.1 2.3-5.5
9.5 9.5 3.2 3.5-8.1
12.7 12.7 4.2 4.6-10.8
19.1 19.1 6.3 7.0-16.3
25.4 25.4 8.5 9.3-21.6
