IEC 62620 LFP14500-600 3.2V 600mAh

US $0.80 - US $1.00

Production Lead Time:

25 day(s)

Shipping Method:

Air/Sea

Application:

Lighting, Personal Care, Medical Device

Brand:

JYH

Model No.:

LFP14500-600

IEC Designation:

IFpR15/50

Description

Contact Supplier

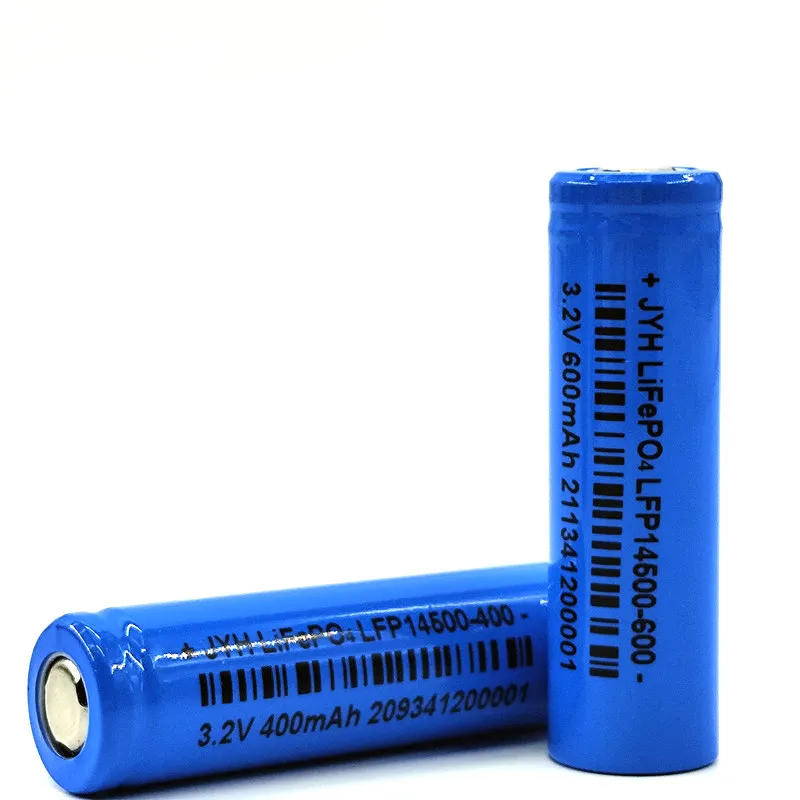

EMERGENCY LIGHTING SYSTEM LFP14500-600 Battery

Product Features

LiFePO4 has a good performance in high temperature environment, when the temperature arrives at 60℃, the discharge capacity increases almost 10%, while cycle life performance better than at room temperature.

CERTIFICATES:

CB (IEC 62133-2), IEC 62620, UL1642

Comply with IEC/EN 60598-2-22, IEC 61347-2-7

Battery Directive (2006/66/EC and its Article 4 amendment of Directive 2013/56/EU)

New Battery Regulation (EU) 2023/1542, heavy metals and CE marking

MSDS

UN38.3, sea and air transportation reports

Model	LFP14500-600
IEC Designation	IFpR15/50
Nominal Voltage	3.2V
Nominal Capacity	600mAh
Typical Capacity	630mAh after standard charge and standard discharge
Minimum Capacity	580mAh after standard charge and standard discharge
Standard Charge	Constant current at 300mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤6mA
Fast Charge	Constant current at 600mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤6mA
Standard Discharge	120mA to 2.0V
Fast Discharge	600mA to 2.0V
Maximum Continuous Charge Current	600mA
Maximum Continuous Discharge Current	1800mA
Operating Temperature	Charge 0℃ to 60℃ Discharge -20℃ to 60℃
Storage Temperature	<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃
Typical Weight	18g
