IP Camera
| Specification | |

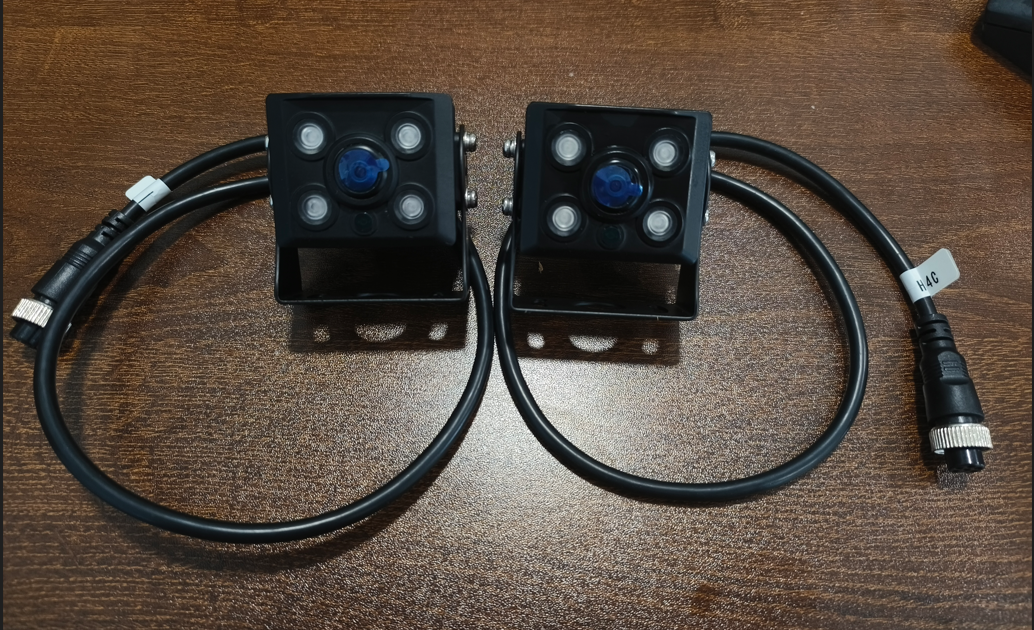

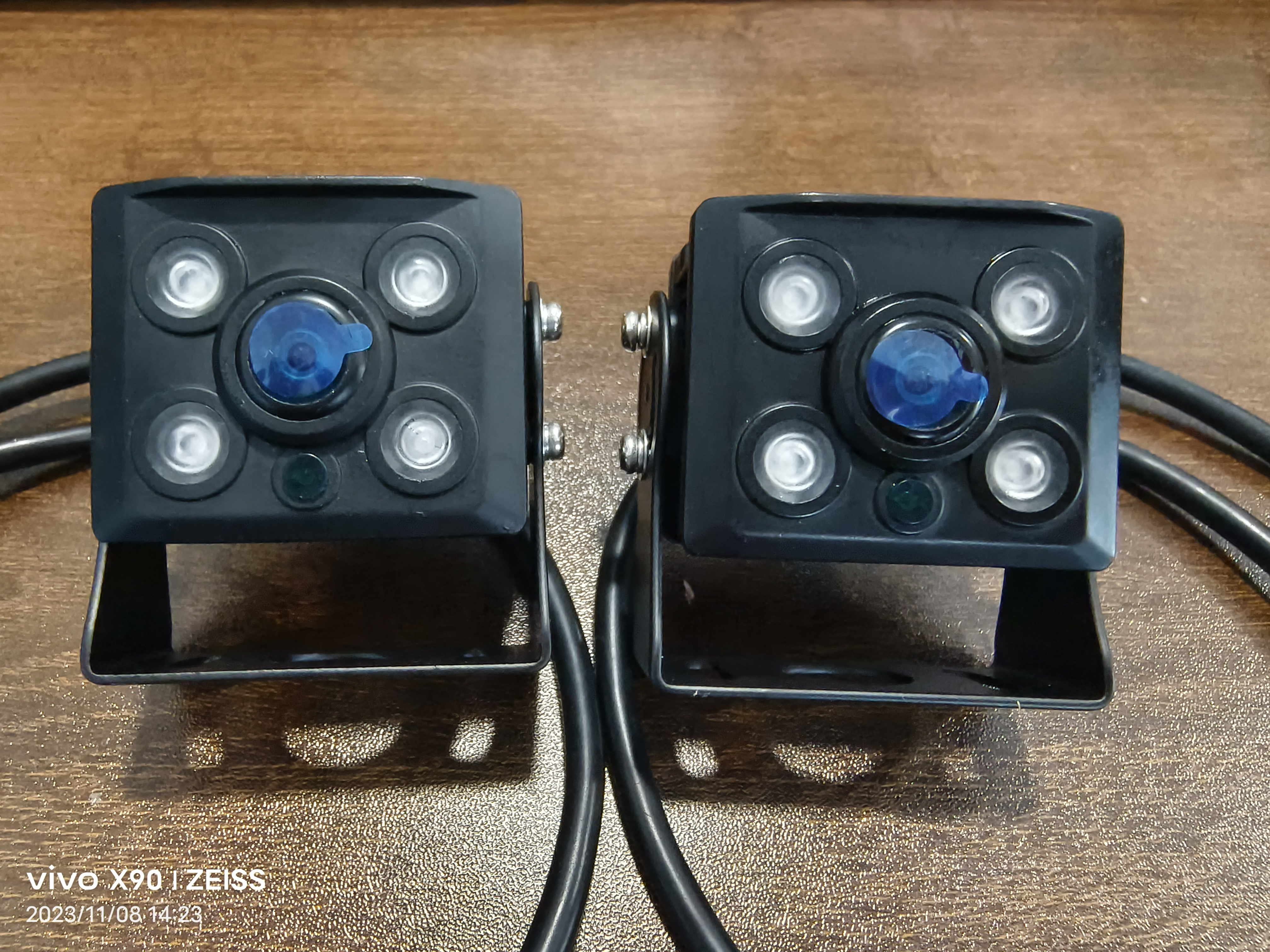

| Camera Model: CAR universal model H2C | |
| Hardware | |
| Sensor | 1/3" 3MP CMOS Sensor |
| Resolution | 3MP |
| Minimum illumination | Color 0.05Lux@F1.2; Black and white 0.005Lux@F1.2 |
| SNR | ≥50db (AGC OFF) |
| Wide Dynamic Range | > 80db |
| Interface | |
| Audio Input | Built-in Mic |
| Audio Output | Not support for onboard analog audio output |
| Light Mode | CDS hard IR Light, soft IR light, soft white light (soft photosensitive supports PWM) |
| IO function | IRCUT, reset |
| Video & Audio | |
| Video Compression | Smart H.264 |
| Main Stream | 2304*1296@15fps |
| 1920*1080@20fps, 1280*720@20fps | |
| Sub Stream | 704*576@20fps, 800*448@20fps, 640*480@20fps, 640*360@20fps, 352*288@20fps |
| Video compression bit rate | 128kps-8192bps Continuing Adjust |
| OSD | Supports channel name, date time, bit rate, resolution, and 4-line character stacking |
| Data transmission and storage | |
| Data storage | Video, picture |
| Storage mechanism | Loop recording, alarm recording |
| Alarm data transmission | Browser,administration software |
| Protocol | ONVIF |
| Client Browser | Supports IE6 and above browser browsing, mobile client browsing |
| Mobile Operating System | OS, Android |
| General | |
| Power Supply | DC12V / 100mA |
| Power Consumption | 1.2 W |
| Working Environment | –30℃ to +60℃ Less than 90% RH |
