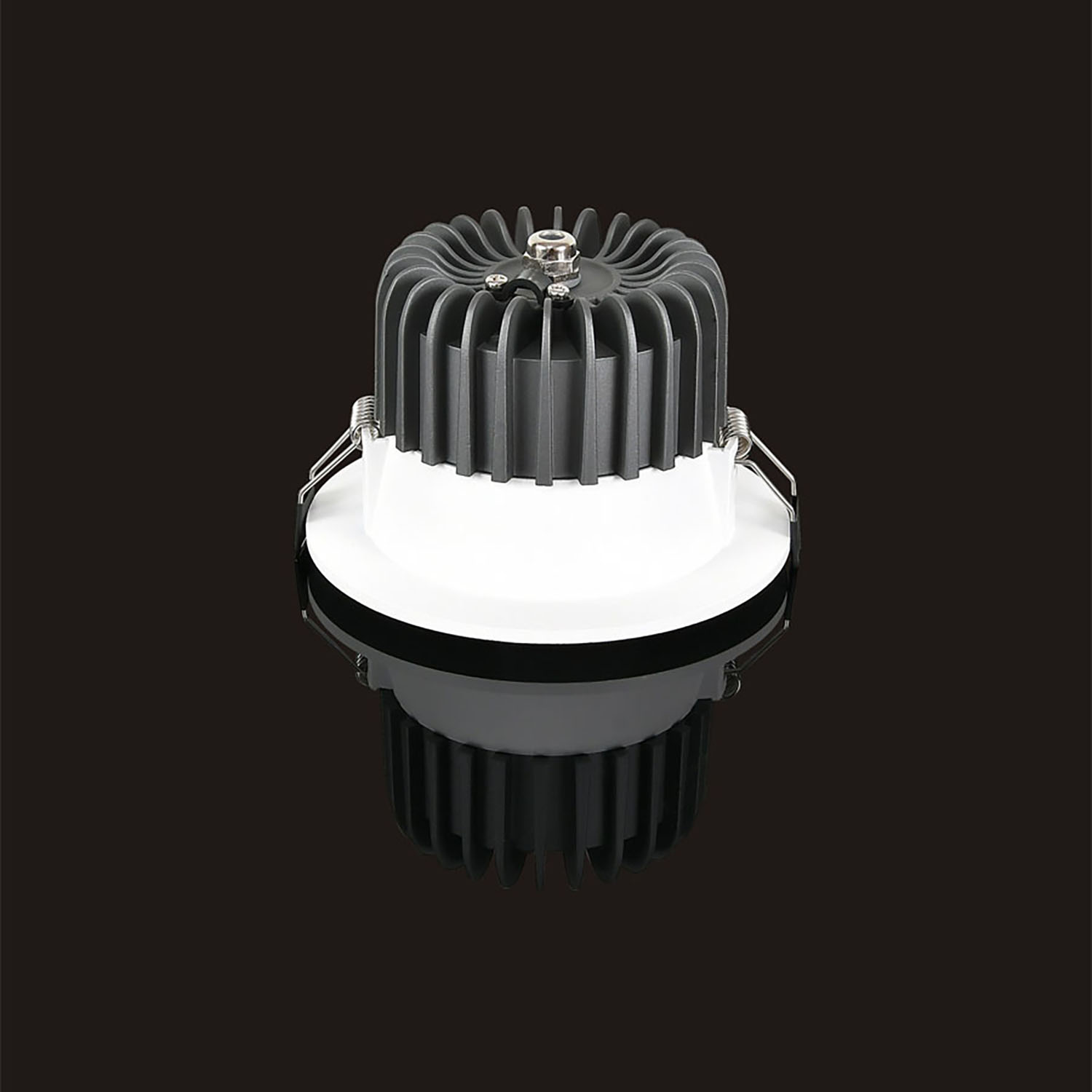

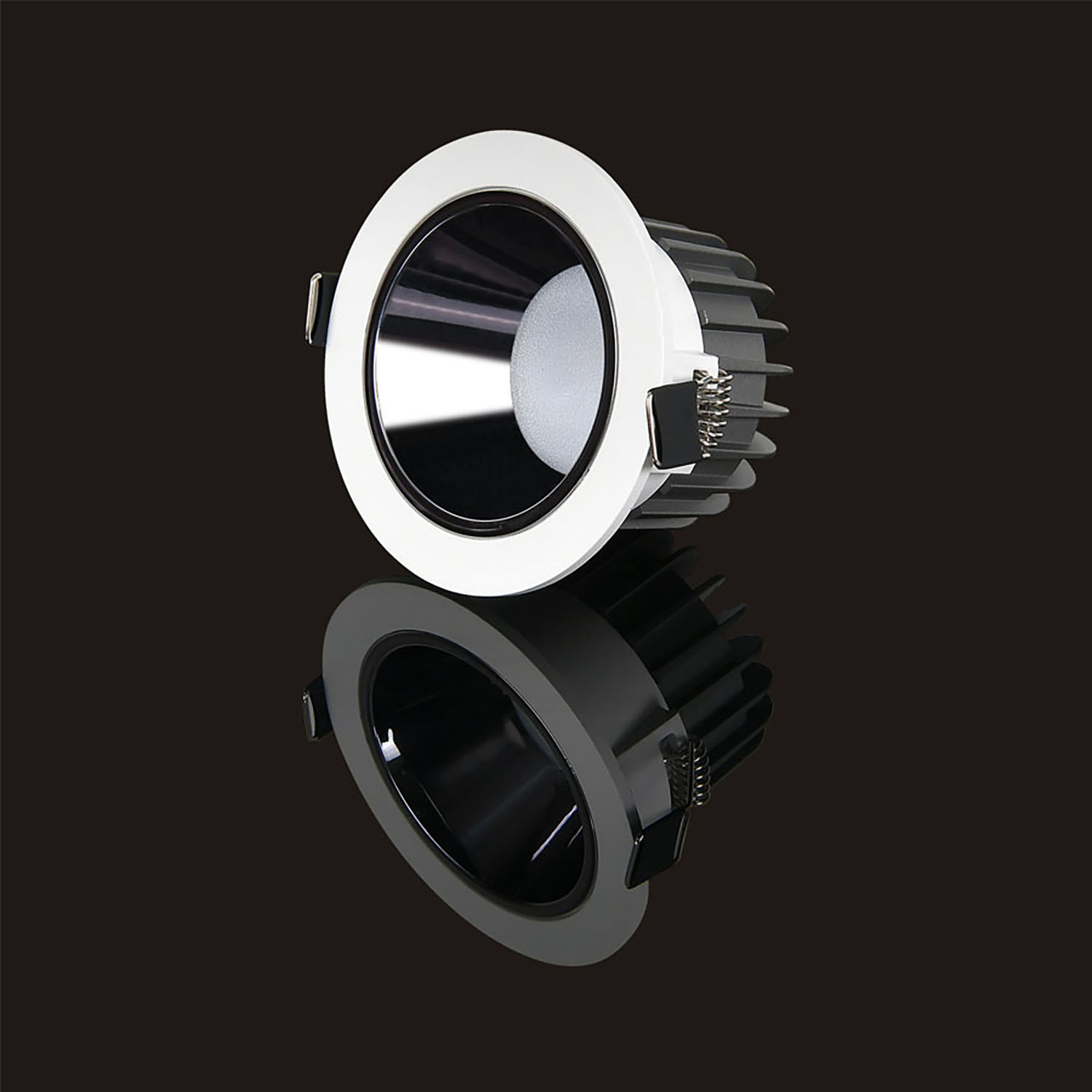

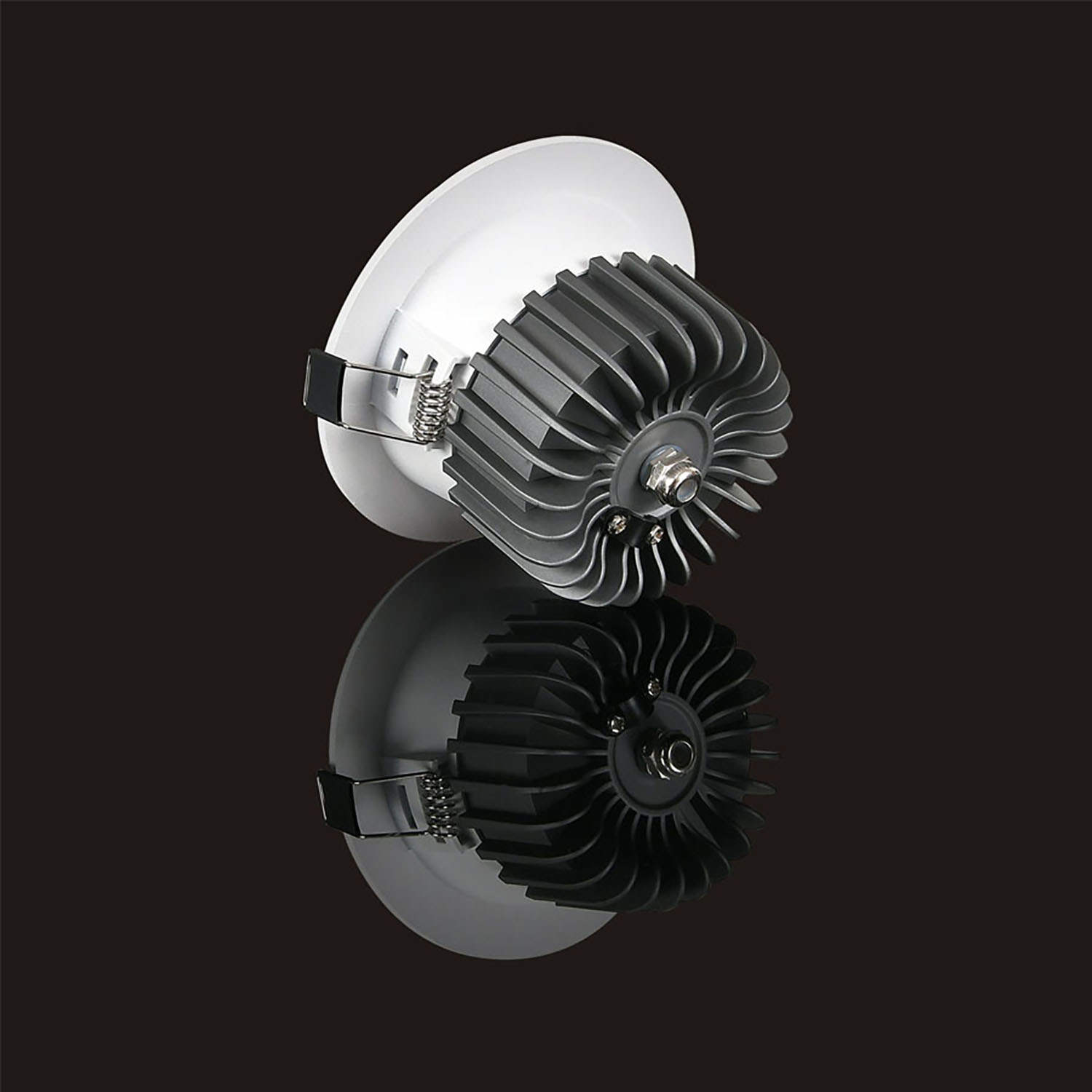

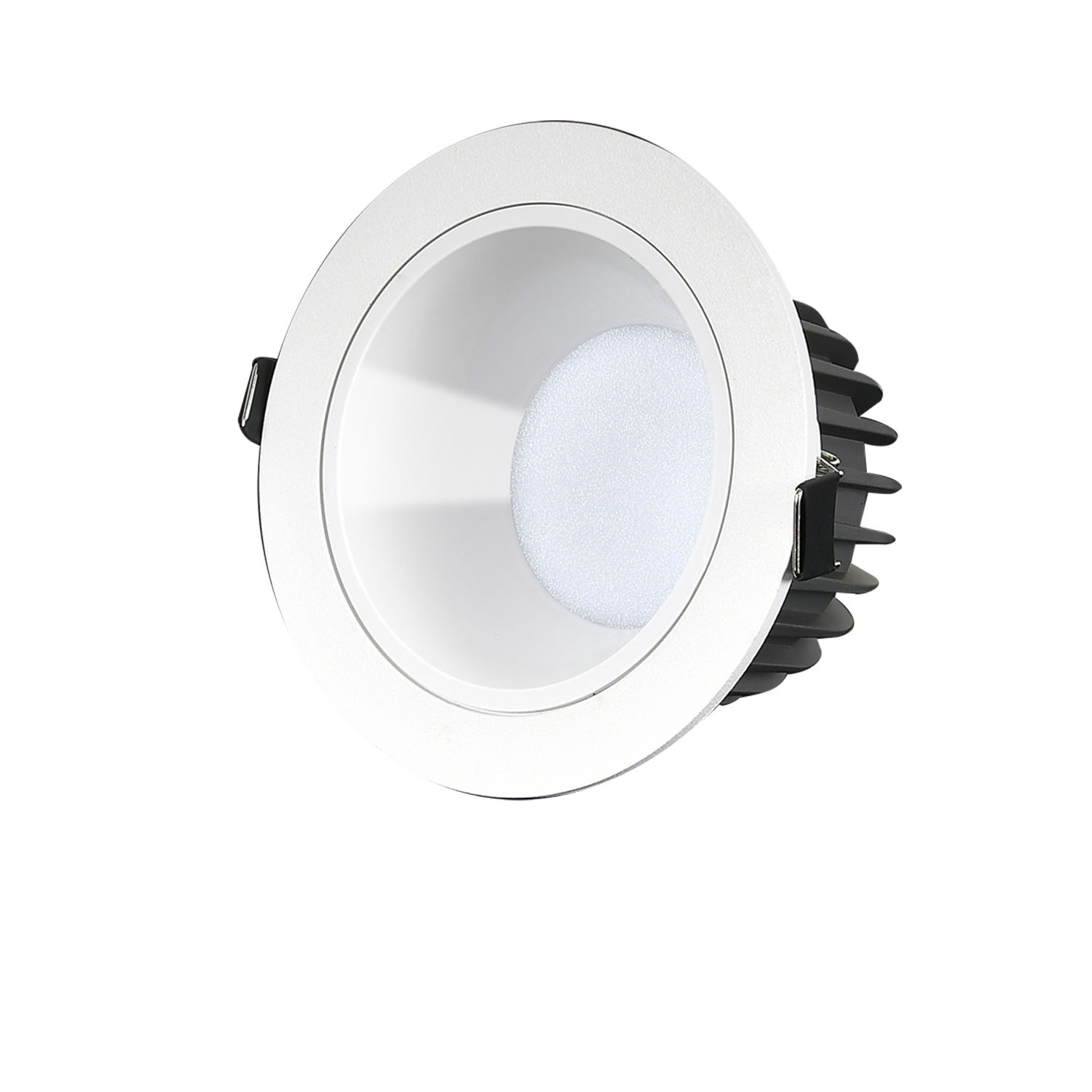

IP54 LED Downlight
Production Lead Time:
20-35 day(s)
Shipping Method:
Air Freight, Sea Freight, Express
Model No.:
DL15
Brand:
SIMONS
Customised:
Yes
Power:
8W, 10W, 12W, 13W, 15W, 18W, 20W, 22W, 24W, 25W, 28W, 30W, 36W
PF:
>0.9
CRI:
RA 80, 90
Lumens Efficiency:
80-100lm/w
Input Voltage:
220-240V
CCT:
Single Color (3000K-5000K), 3 CCT
Beam Angle:
90º
Material:
Die-casting Aluminum
Cover:
PC Diffuser
IP Rating:
IP54
Working Temperature:
-20~50℃
LED Chip:
SMD 2835
Light Body Colour:
White, Black, Grey
Installation:
Recessed
Fascia:
Deep Recessed
Working Frequency:
50/60HZ
Lifetime:
30000Hrs
Application:
hotel, receiption, shop, office, mall, restaurant, bar etc
Certification:
SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80
Origin:
Xiamen, China
Description
Contact Supplier
Description
Features
1. Durable die-cast aluminum body profile
2. Stylish powder coat finish in white or plated satin nickel
3. IC- 4 rated
4. Constant current trailing edge dimmable and non-dimmable driver configurations fitted with flex and plug
5. Dimmer Type: Trailing edge, 0-10V, DALI / DSI, Tuya Smart
6. High efficiency SMD LED chips
7. LED driver with flex and plug
8. IP54 for indoor and outdoor use
9. Anti-dazzle cup on the light, UGR<19
10. CCT changeable switcher on the driver.
11. Optional to 3-CCT and single CCT.
Models
Model | Power | Cut-out | Diameter | Height |
SM-DL16-02-08 | 8W | 80mm | 94mm | 64mm |
SM-DL16-02-10 | 10W | 80mm | 94mm | 64mm |
SM-DL16-02-12 | 12W | 80mm | 94mm | 64mm |
SM-DL16-03-12 | 12W | 95mm | 114mm | 68mm |
SM-DL16-03-13 | 13W | 95mm | 114mm | 68mm |
SM-DL16-03-15 | 15W | 95mm | 114mm | 68mm |
SM-DL16-04-18 | 18W | 120mm | 140mm | 74mm |
SM-DL16-04-20 | 20W | 120mm | 140mm | 74mm |
SM-DL16-04-22 | 22W | 120mm | 140mm | 74mm |
SM-DL16-04-24 | 24W | 120mm | 140mm | 74mm |
SM-DL16-06-24 | 24W | 150mm | 184mm | 80mm |
SM-DL16-06-25 | 25W | 150mm | 184mm | 80mm |
SM-DL16-06-28 | 28W | 150mm | 184mm | 80mm |
SM-DL16-06-30 | 30W | 150mm | 184mm | 80mm |
SM-DL16-06-36 | 36W | 150mm | 184mm | 80mm |
