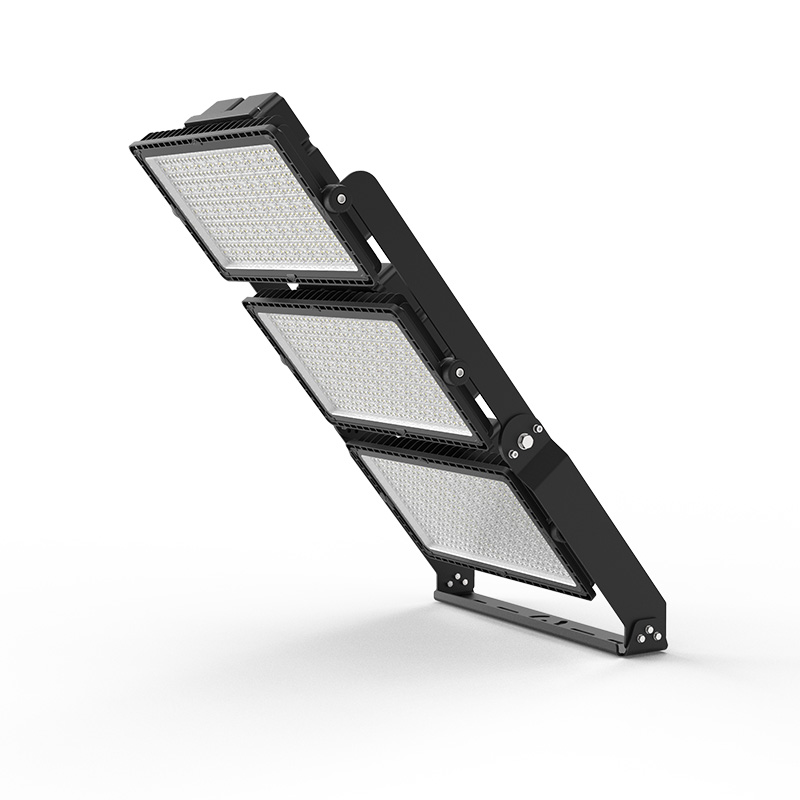

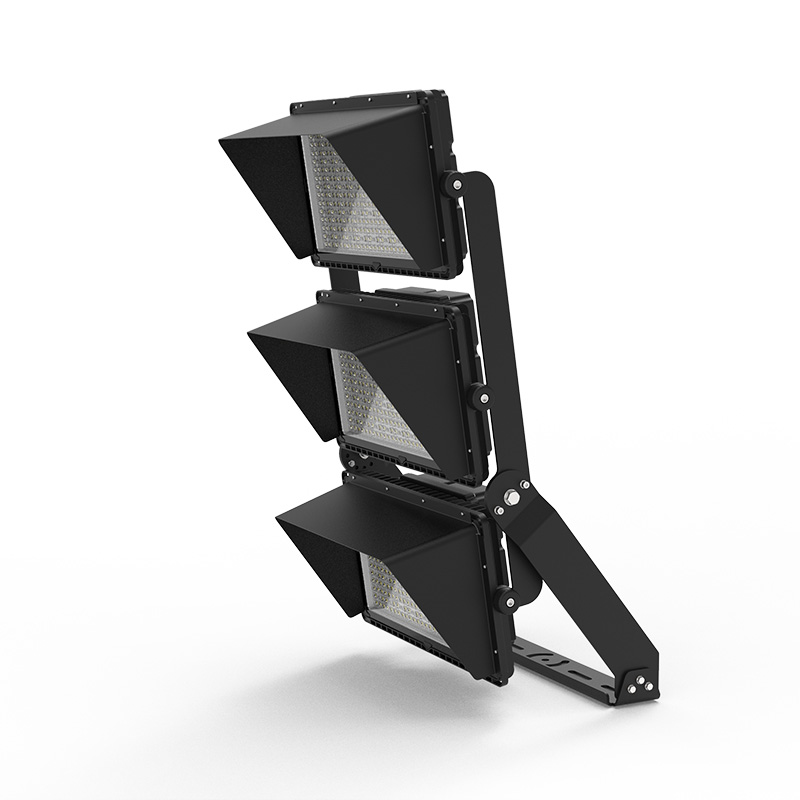

IP66 High Mast LED Flood Light
US $148.20 - US $170.05
US $156.00 - US $179.00
Production Lead Time:
20-25 day(s)
Shipping Method:
EXW
Brand:
TUBU
Light Source:
LED
IP/IK Class:
IP66 / IK08
Description
Contact Supplier
Description
Tech Specs:
| Product Code | HMG4-500W HMG4-600W | HMG4-1000W HMG4-1200W | HMG4-1500W HMG4-1800W | |
| Power | 500W 600W | 1000W 1200W | 1500W 1800W | |
| Input Voltage | 100-277VAC | |||
| PF | 0.90@220VAC | |||
| Dimming(Optional) | 0-10V/DALI | |||
| CCT | 2700K/3000K/4000K/5000K/5700K/6500K | |||
| RA>70 | Luminous Flux | 500W-70000Lm±10%600W-84000Lm±10% | 1000W-140000Lm±10%1200W-168000Lm±10% | 1500W-210000Lm±10%1800W-252000Lm±10% |
| Efficiency | 140Lm/W±5% | |||
| RA>70 | Luminous Flux | 500W-80000Lm±10% 600W-96000Lm±10% | 1000W-160000Lm±10%1200W-192000Lm±10% | 1500W-240000Lm±10%1800W-280000Lm±10% |
| Efficiency | 160Lm/W±5% | |||
| Beam Angle | 7°/15°/30°/60°/90°/120°Type2/Type3 PC lens | |||
| Operation Temp | -40℃~+50℃ , 20~95%RH No condensation | |||
| Storage Temp | -20℃~+85℃ , 10~95%RH No condensation | |||
| Life Span | Ta 50℃ L70>54000Hours | |||
| IP/IK Class | IP66 / IK08 | |||
| Certificate | CE, RoHs | |||
| Lamp Body Color | Housing: Die-casting Aluminum Color: Black (RAL9005) Lens: pc | |||
| Product Warranty | 5 years | |||
| Installation Mode | Surface Mount/Bracket Mount | |||
| Product Size (mm) | 637*483*134 | 897*673*134 | 1286*673*134 | |
| Packing Size (mm) | 672*534*188 | 990*763*220 | 1378*763*220 | |
| Gross Weight (kg) | 16.5 | 40 | 56 | |
