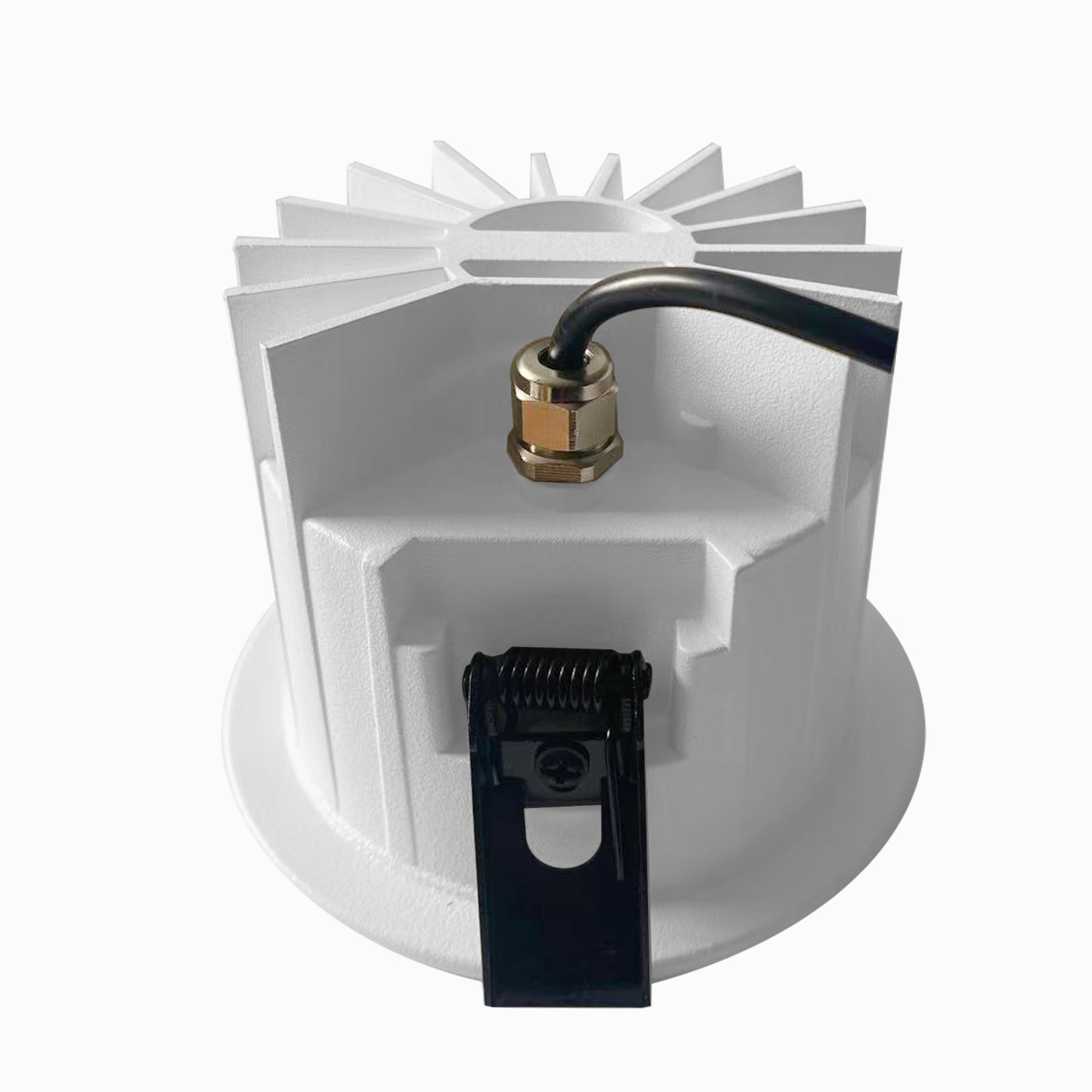

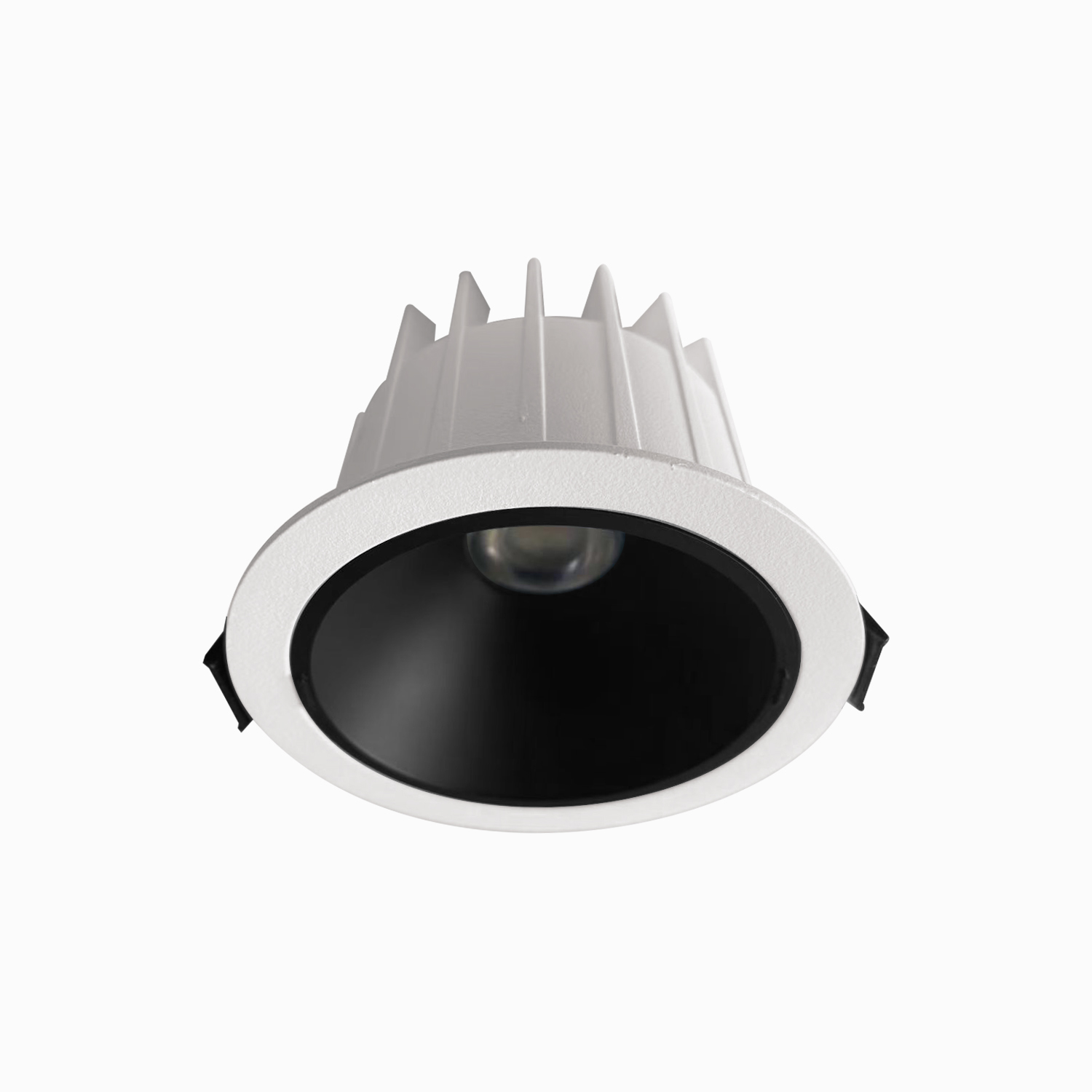

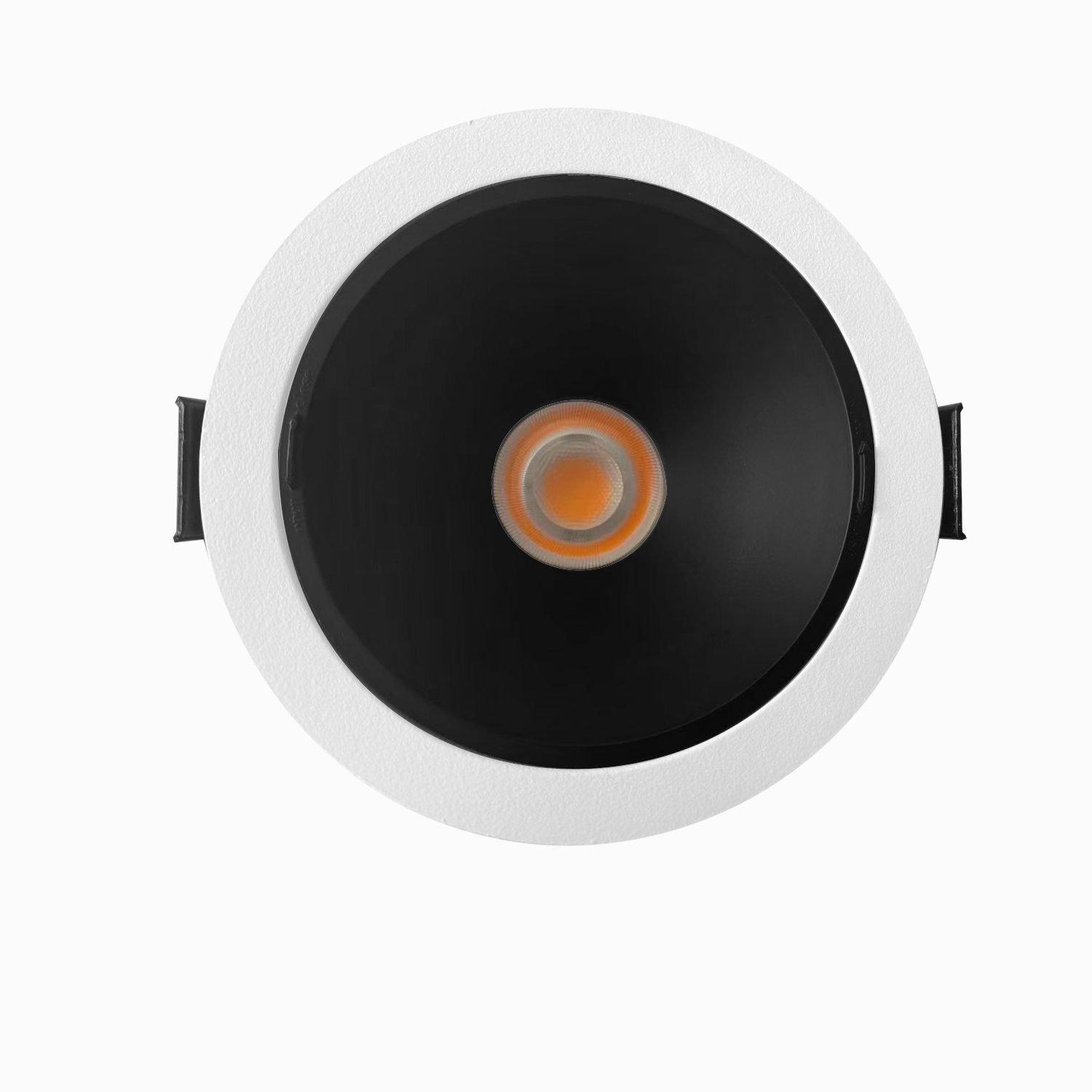

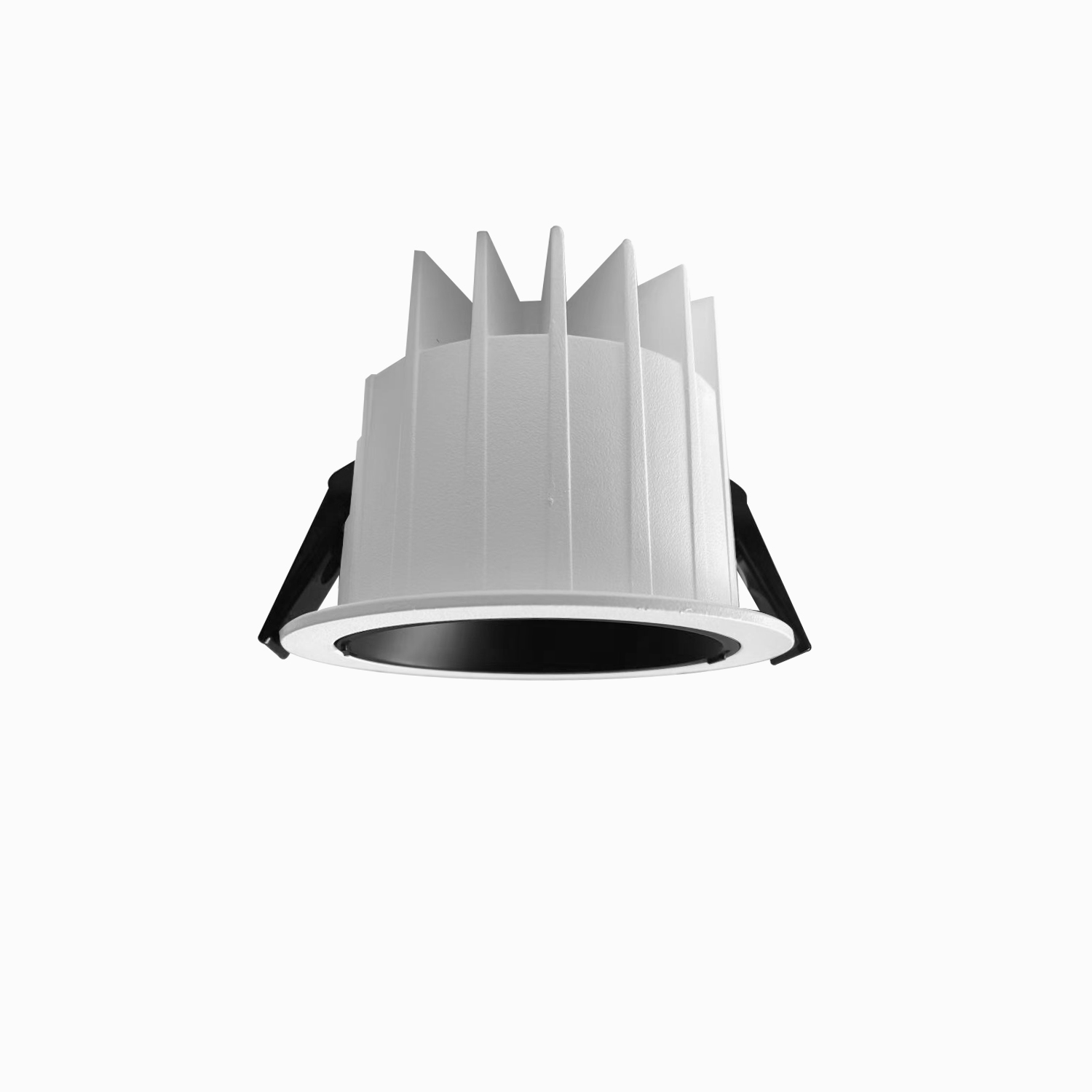

    IP67 LED Downlight
    Share this page
    Production Lead Time:
    25-35 day(s)
    Shipping Method:
    Air Freight, Sea Freight, Express
    Model No.:
    DL22
    Power:
    10W, 20W, 30W, 40W
    Cut-out:
    90mm, 130mm, 170mm, 200mm
    IP Rating:
    IP67
    Is Dimmable:
    Yes
    Material:
    Die-casting Aluminum
    Customised:
    Yes
    Description
    Contact Supplier
    Description

    Features

    1. Die-casting aluminum housing, excellent heat dissipation.
    2. External triac-dimmable driver, long lifespan.
    3. Inside fascia are optional to be silver, black, white.
    4. Excellent matt white powder coat finish, the colour can be customized
    5. Deep recessed fascia design, anti-glare, UGR<19
    6. IC-4 rated.
    7. IP67 downlight, whole lamp can be soaked in water
    8. 90mm cut-out design, can be best fit for the AU market need.
    9. Application to bathroom, toilet, outdoor balcony, swimming pool etc.
    10. Certification: SAA, CE, C-Tick

    For normal outdoor application, the normal powder coating will be painted on the surface. But if you want to install them on the seaside outdoor, the anti-corrosion powder coating will be painted on the light surface.

    Integrated lamp design and waterproof aprons used on the light to promise the light to be IP67. It can be soaked in the water for a while.

    Elegant light appearance, excellent painting surface. The colour of the housing can be white and black. And the colour of the inside fascia can be silver, white and black. Let us know your requirement and then we can customize for you.

    Technical Parameter

    Input Voltage

    200V-240V

    CRI (Ra>)

    80, 90, 95

    Power Factor

    >0.9

    Working Frequency

    50/60HZ

    Temperature

    -20~50℃

    Lifetime

    30000h

    IP Rating

    IP67

    Materials

    Die-casting Aluminum

    Light Source

    LED

    LED Chip

    COB

    CCT

     Single CCT (3000K-6000K)

    Beam Angle

    45º

    Light Color

    Black/ White

    Installation

    Recessed

    Models

    Model

    Power

    Luminous

    Efficiency

    Cut-out

    Diameter

    Height

    DL22-03-10

    10W

    70-80lm/w

    90mm

    100mm

    57mm

    DL22-04-20

    20W

    70-80lm/w

    100mm

    140mm

    90mm

    DL22-06-30

    30W

    70-80lm/w

    170mm

    185mm

    112mm

    DL22-08-40

    40W

    70-80lm/w

    200mm

    230mm

    128mm
