IP67 SS316 wall light 5w modern asymmetric step wall light recessed outdoor garden LED underground light | Outdoor Lighting

Puyuan Electronic Illumination Co Ltd

IP67 SS316 wall light 5w modern asymmetric step wall light recessed outdoor garden LED underground light

Production Lead Time:

15~25 day(s)

Shipping Method:

Ex-works

Brand:

PLAYLITE

Customised:

Yes

Material:

Aluminium

Is Dimmable:

Light Source:

LED

Model No.:

UL-1016-0500-A

Lighting Style:

Modern

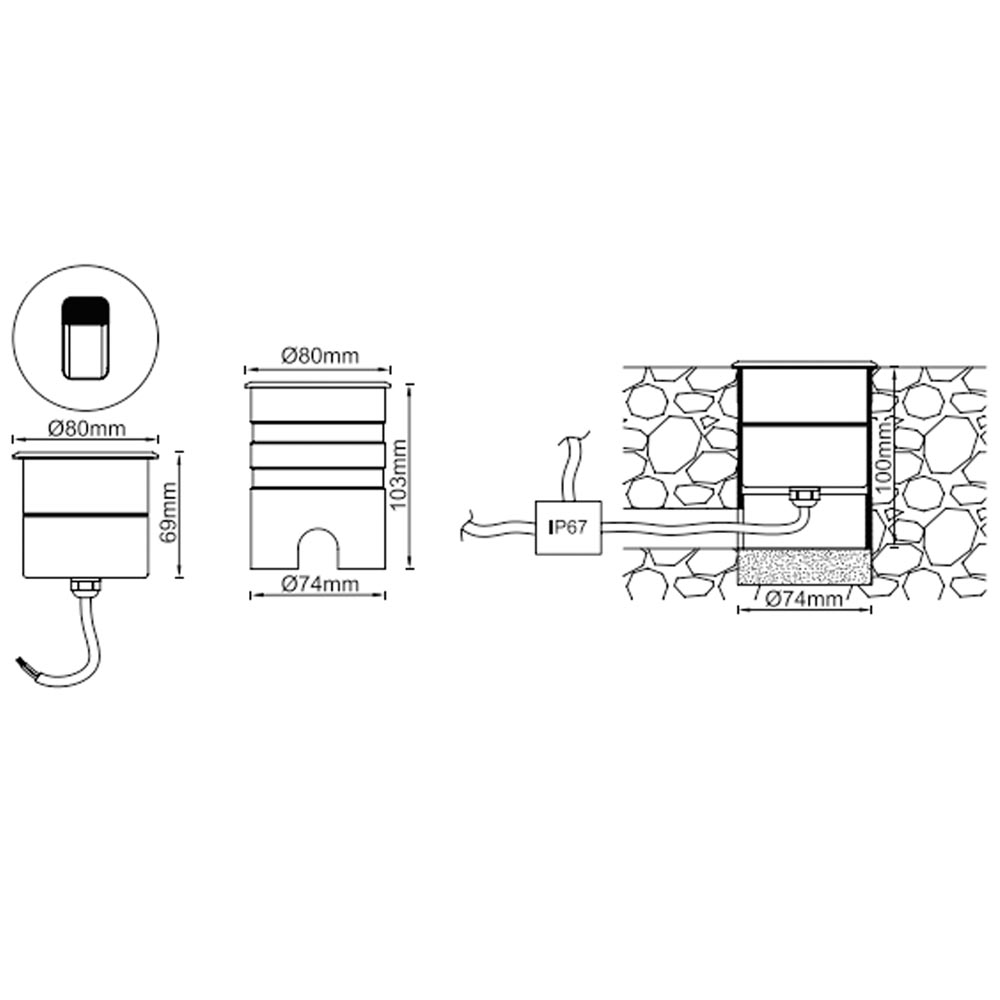

Size:

80*69 mm (Diameter x Height)

Weight:

0.8 kgs

IP rating:

IP67

IK rating:

IK06

Beam angle:

Asymmetric 60°x (optional 15° ,20° ,25° ,30° ,38° ,45° ,60°)

Cut out:

74mm

Power:

5 Watts

Luminous flux:

120lm +-10%

CCT:

2700K, 3000K, 4000K, 4500K, 5700K, 6500K

Description

Contact Supplier

General Data
Item No.	UL-1016-0500-A
Power	5Watts +-10%
LED type	1PC CREE XPG2 LED
Luminous flux	120lm+-10%
CCT	2700K, 3000K, 4000K, 4500K, 5700K, 6500K
CRI	80+
Beam angle	Asymmetric 60°x (optional 15°,20°,25°,30°,38°,45°,60°)
Dimension	*Ø8069 mm (Diameter x Height)**
Cut out	Φ74mm
Net weight	0.8 kgs
Warranty	3 years
Certifications	CE, RoHS
Electrical Data
Input voltage	DC12-24V (AC100-265V optional)
Insulation class	Class III
Cable	1PC rubber cable 1M H05RN-F 2 or 3x1mm square
Driver	Low constant voltage input, constant current output for LED
Construction Data
IP rating	IP67 Waterproof
IK rating	IK06
Housing	Aluminium CNC machined
Protection finishing	Anodized dark grey for housing
Trim	Stainless steel 316
Glass	Tempered Glass
Loading capacity	500 kgs
Cable Gland	PG gland IP67
Gasket	silicone ring + silicone glue seal
Accessories
Mounting Sleeve	Aluminium mounting sleeve
