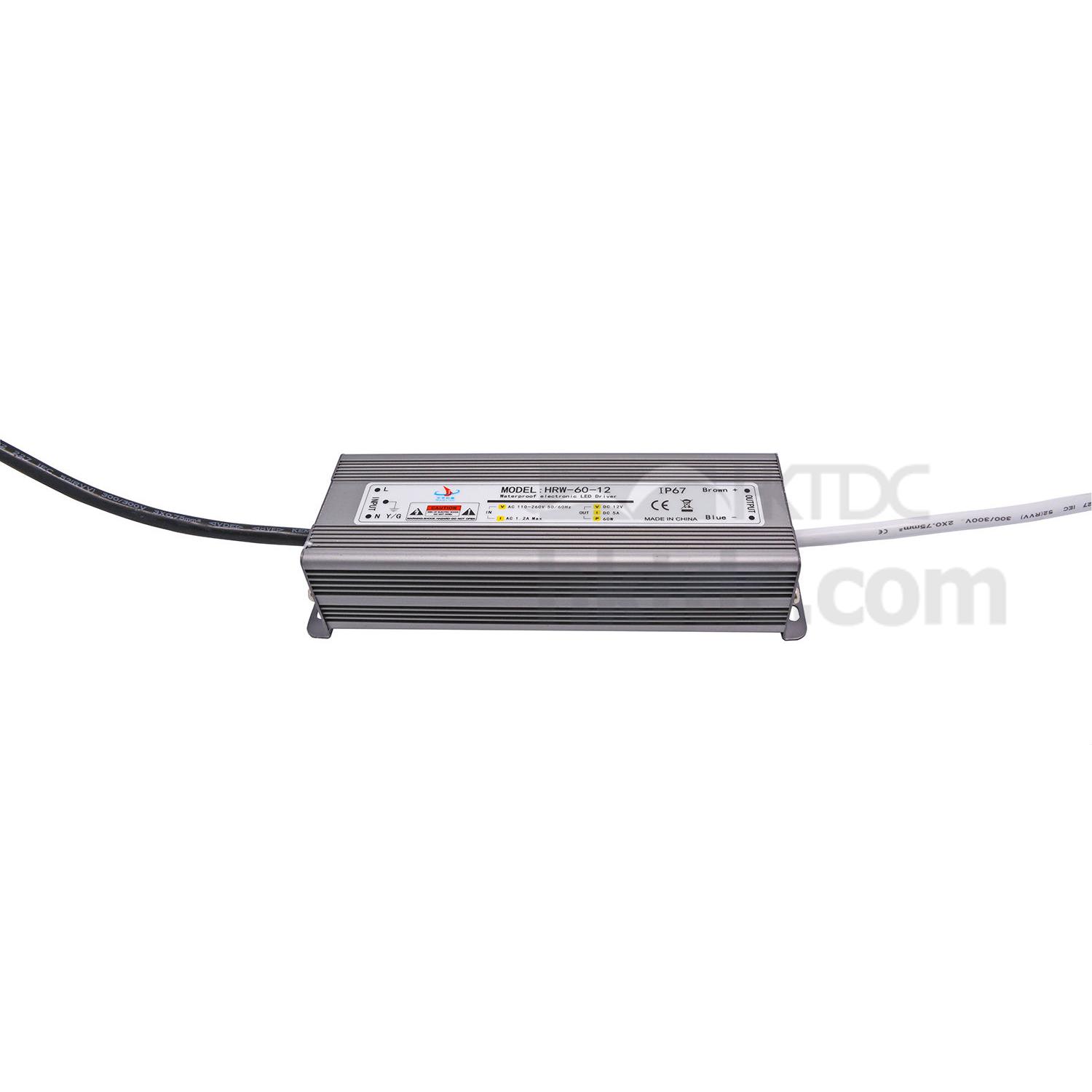

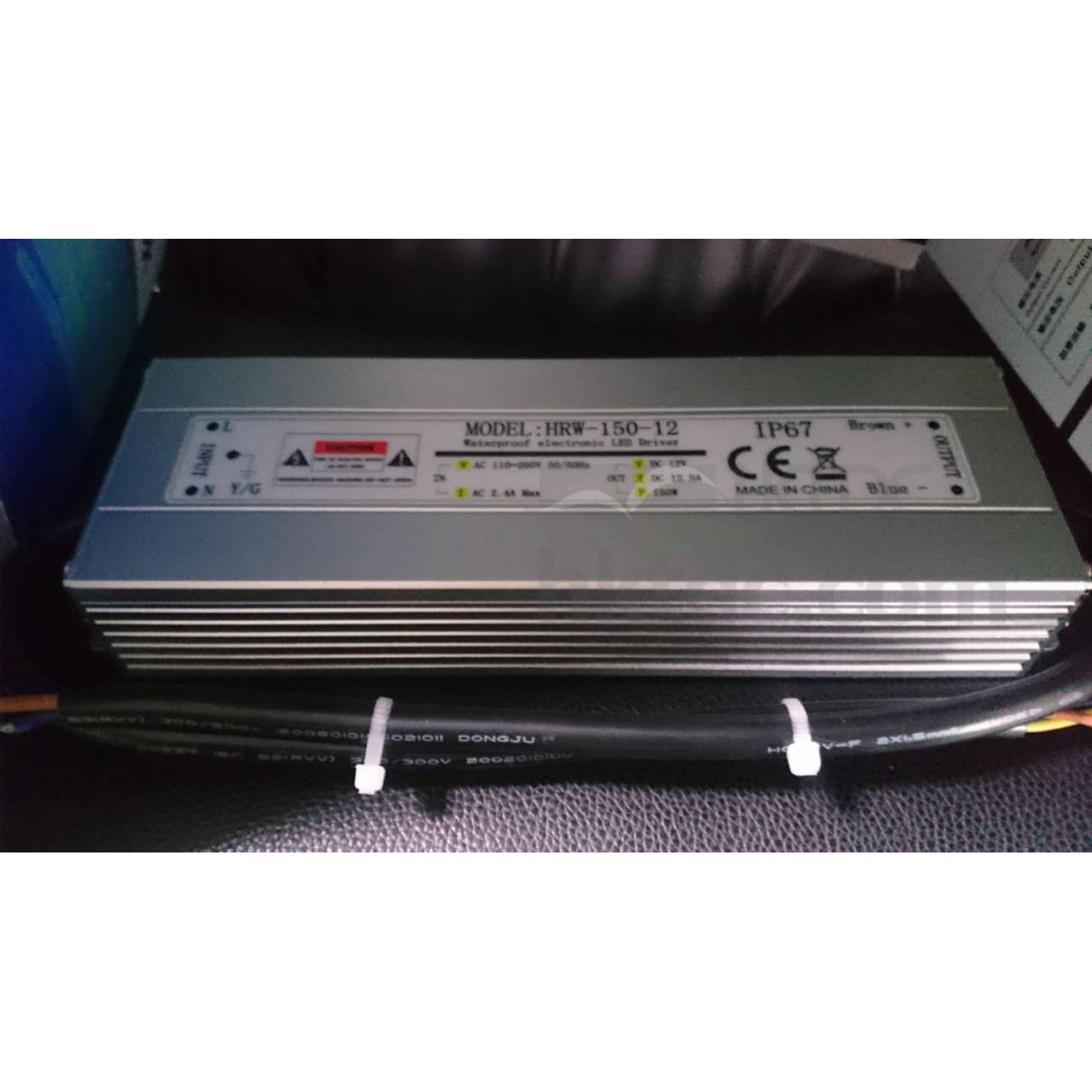

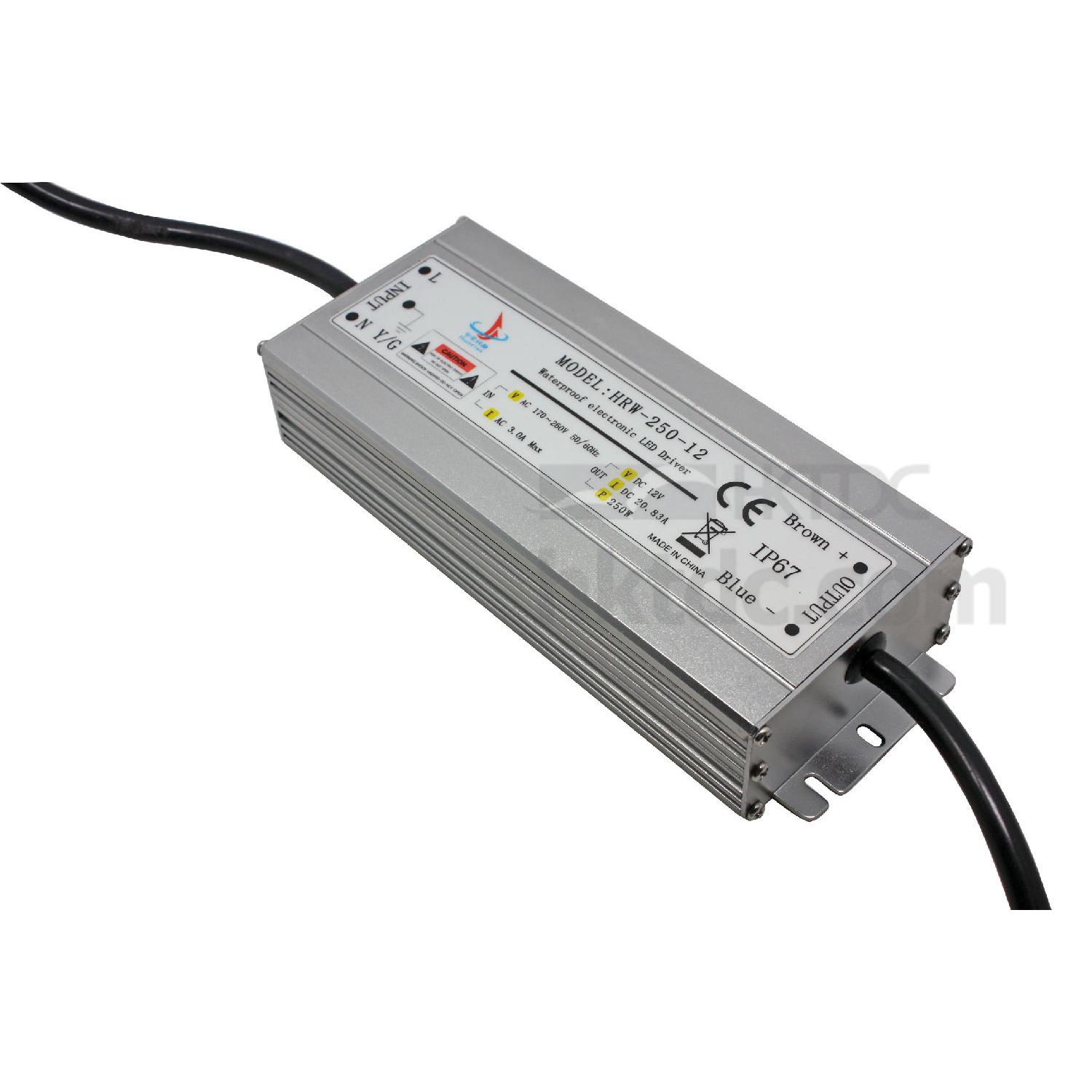

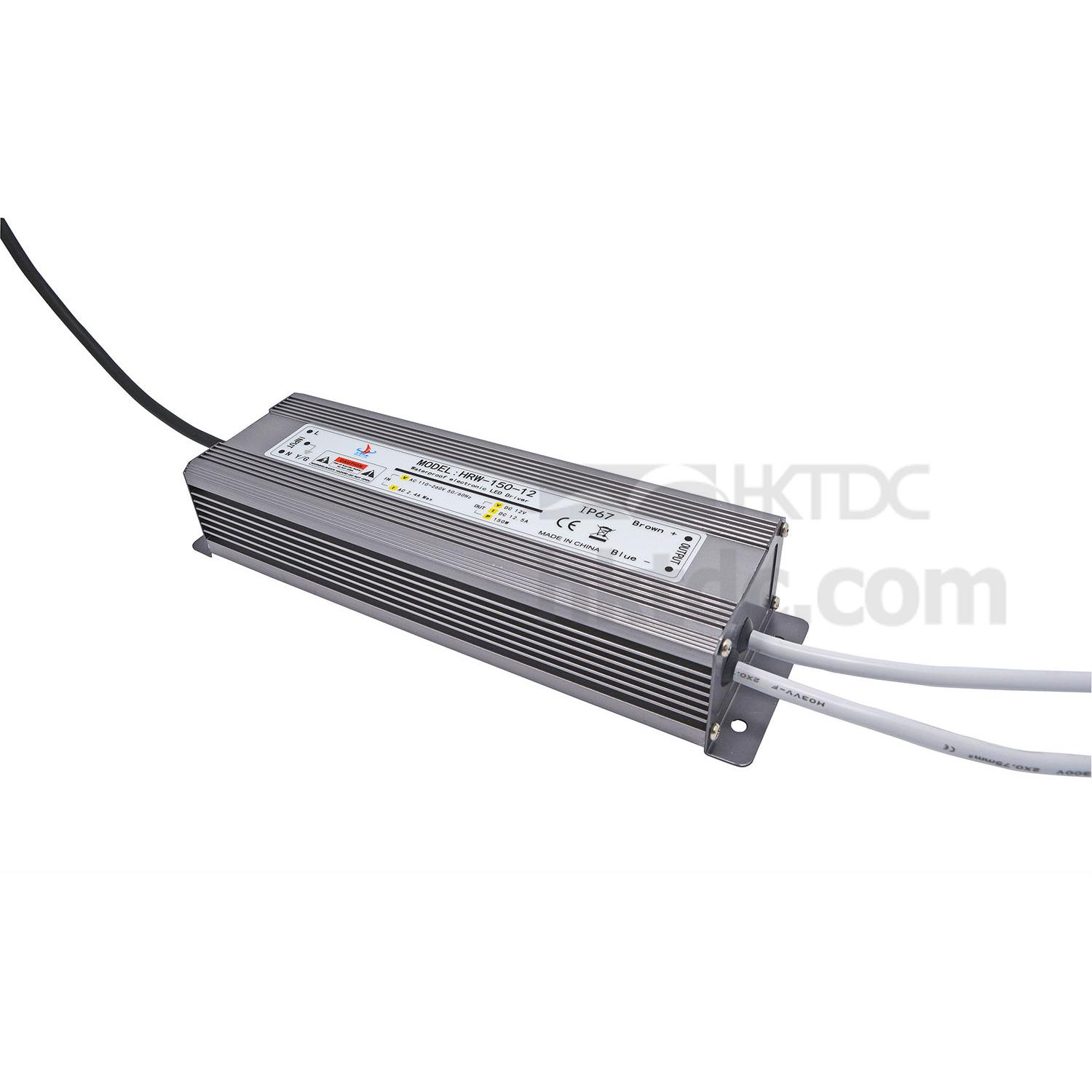

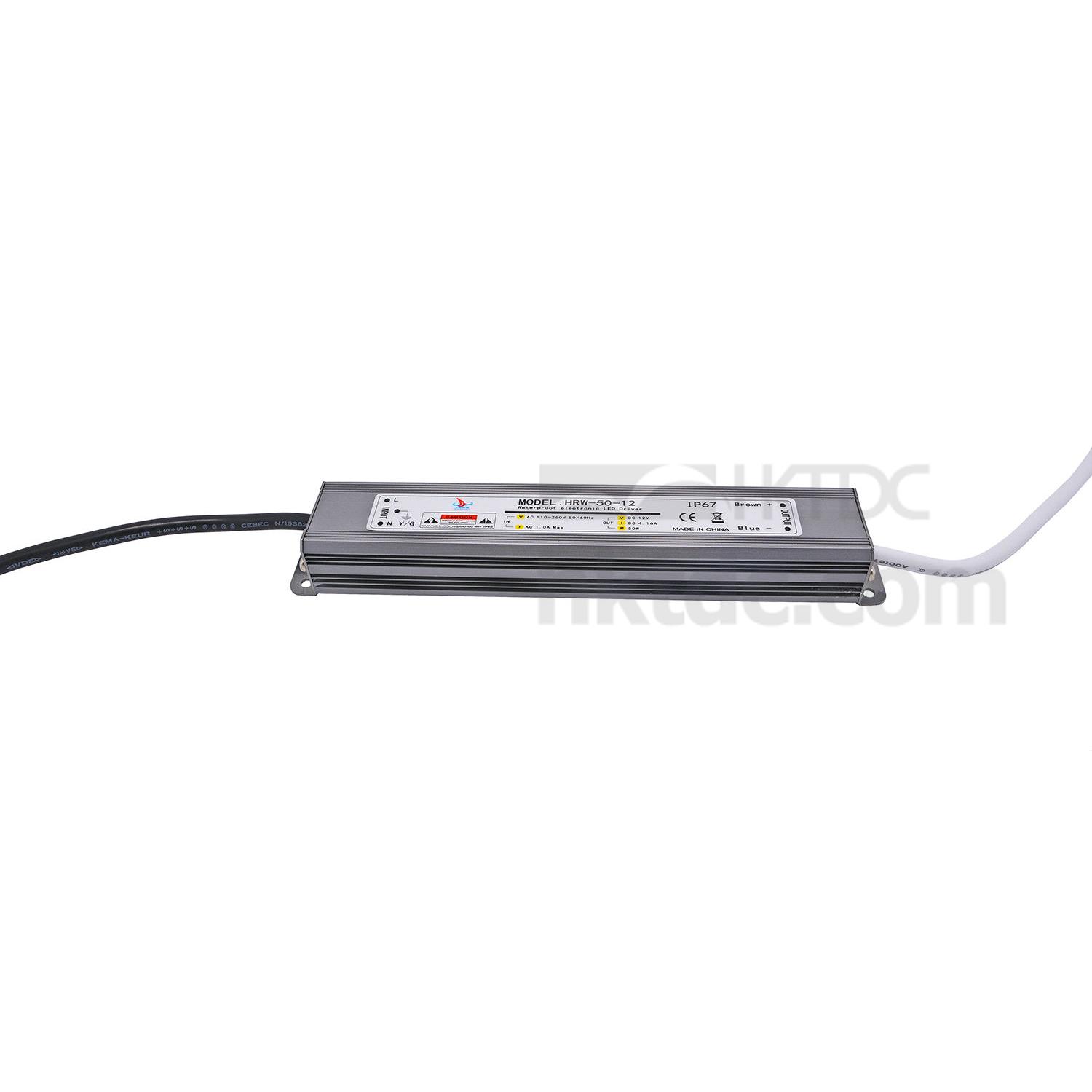

IP67 Waterproof LED Power Supply
Production Lead Time:
7 day(s)
Model No.:
HRW-XXX-12
Port:
Shenzhen
Type of Payment:
T/T, Paypal, Western Union
Minimum Order Quantity:
200PCS
Fitting:
Linkable Fitting
Certification:
CCC, CE, CQC, EMC, FCC, GS, LVD, RoHS , VDE, CB,BIS
Warranty:
3 years
Output Voltage(V):
12V/24V
Input Voltage(V):
110V/220V
Description
Contact Supplier
Description
WATERPROOF SERIES IP67
Description:
>>>Protection:
- Product Item: HRW-20-12...HRW-300-12
- Output voltage:12V/24V
- Rated Current: 1.6A/0.83A...25A/12.5A
- Rated Power: 20W-300W
- Ripple and Noise Note: 100mVp-p
- Setup Rise Hold up time: 200ms 50ms 20ms
- Voltage Range: 90-130V, 170-260V
- Frequency Range: 50~60Hz
- AC Inrush Current: 40A/230V
- Leakage Current: 3.5mA/240VAC
- Housing shell: Aluminum shell good for heat transfer
Description:
- Built-in EMI filter
- 100% load test
- Full range of input voltage
- Output voltage accurate and stable
- Output over-voltage, over-current and short-circuit protection
- Output low ripple and noise
- Two year warranty
- Average working no trouble ＞50,000 hours
- Universal AC input/Full range
- Protection: Short circuit/Overload/Over voltage/Over temperature
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact effectively
- 100% full load burn-in test
- Ideal for indoor or outdoor installations
- New design with small size, light weight, easy for installation
- Suitable for LED lighting and moving sign applications
- 3 years warranty
>>>Protection:
- Over Current: 105-150% rated output power. Protection type: Hiccup mode, recovers automatically after fault condition is removed.
- Over Voltage: Protection type: shut down o/p voltage, re-power on to recover.
- Short Circuit: Auto Recover
- Protection grade: IP67
- Working Temp: - 30 ~ 50 °c / 20% ~ 90% RH (no frost)
- Storage Temp: -40 ~ 80 °c / 20% ~ 90% RH (no frost)
- Temp. Coefficient: 0.03%°C (0~50°C)
