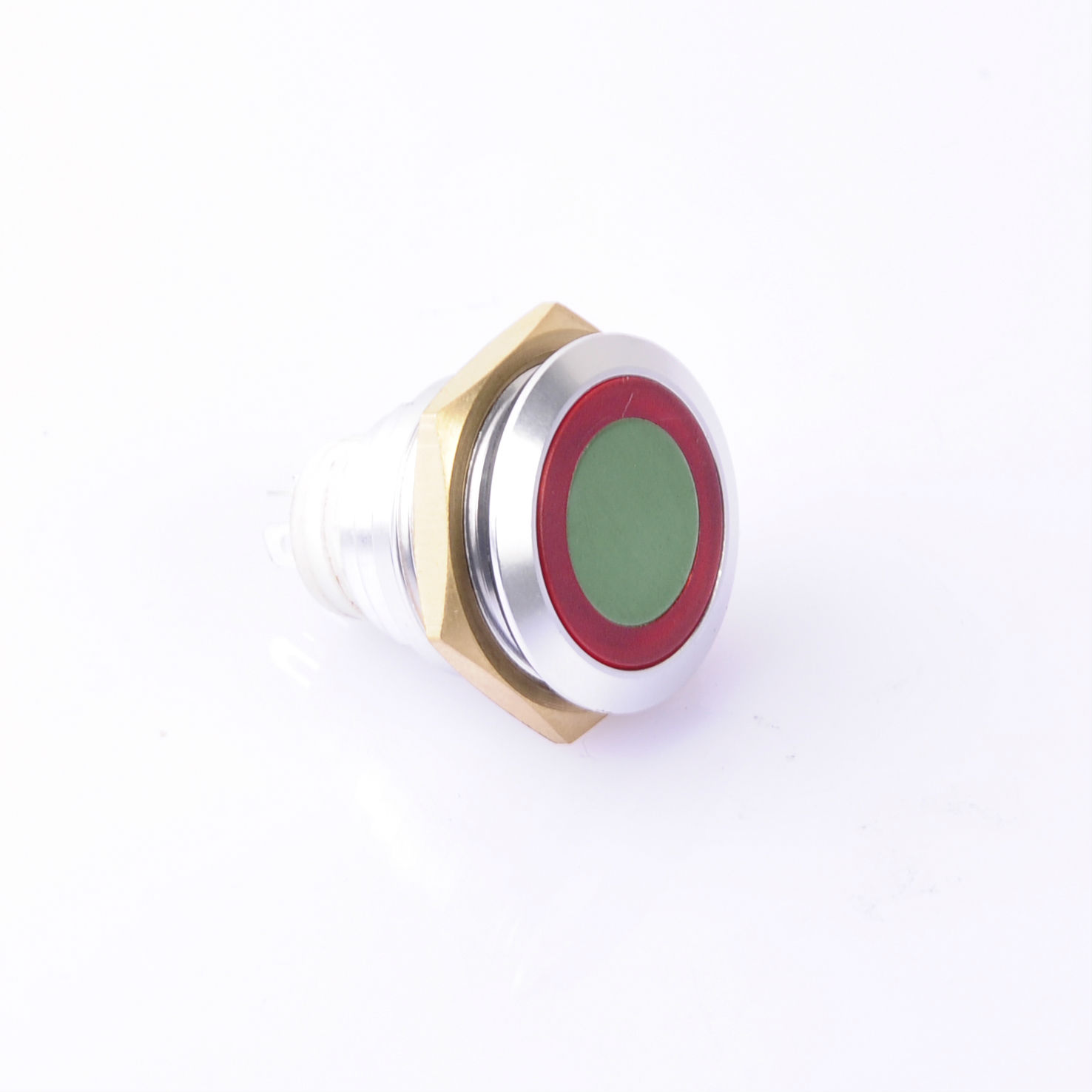

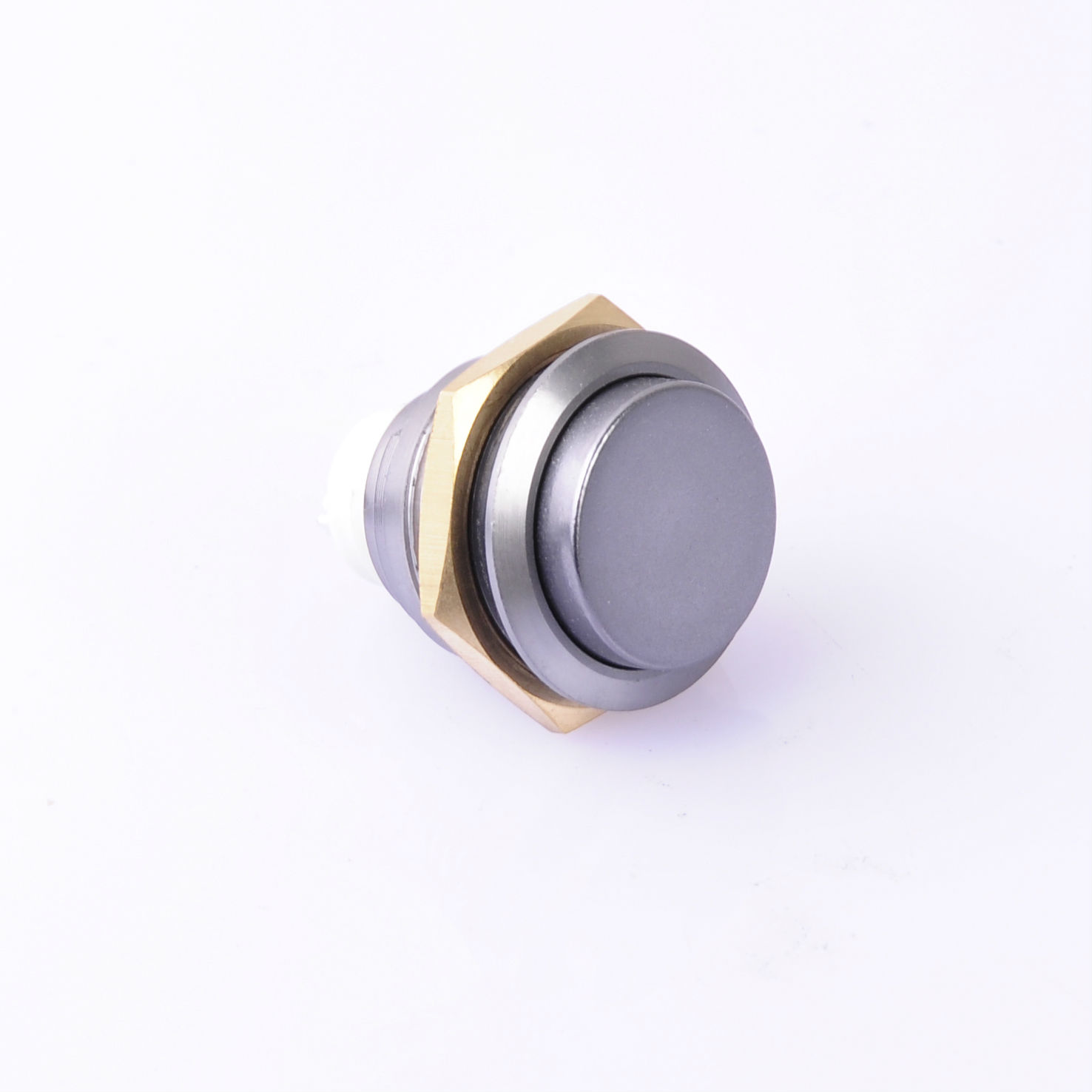

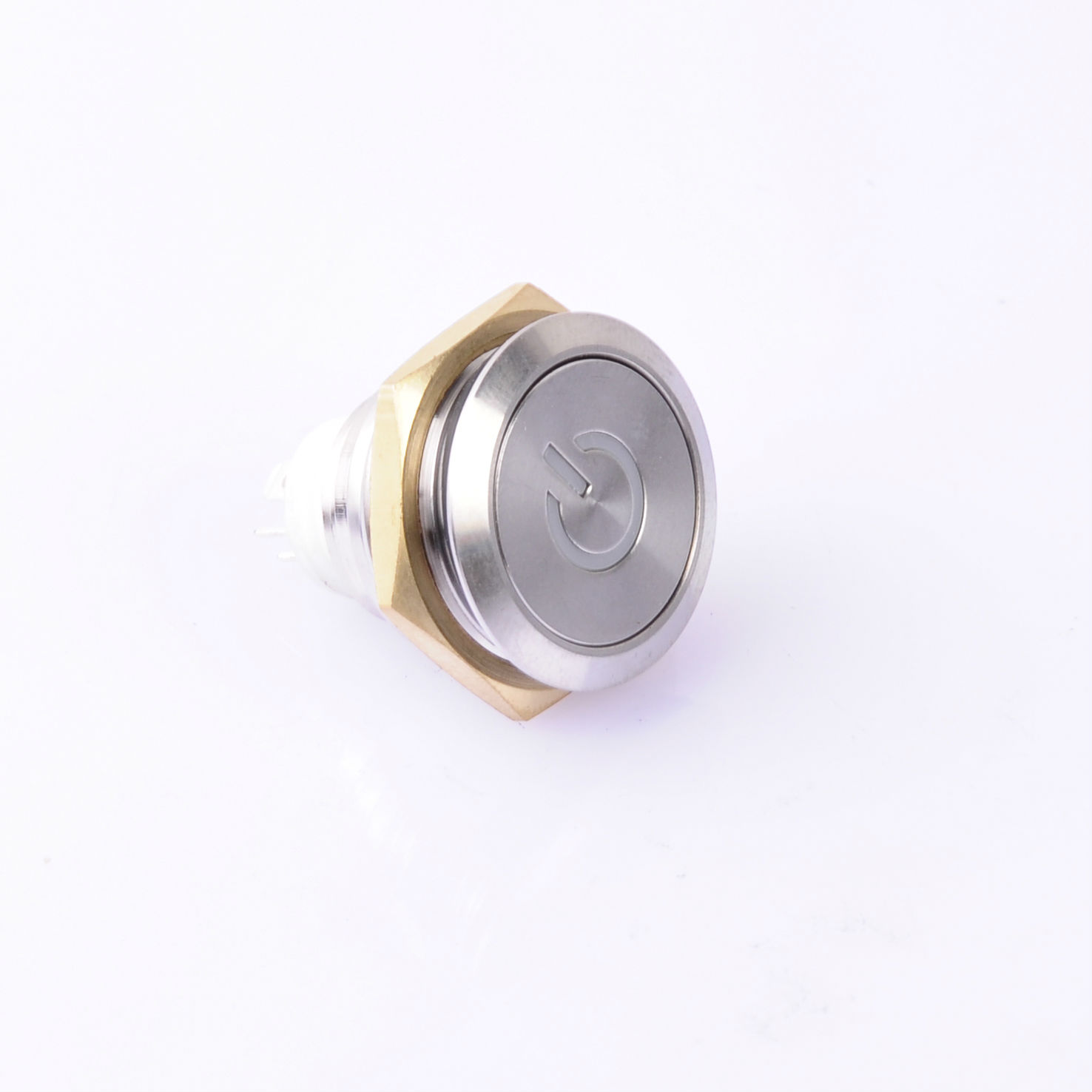

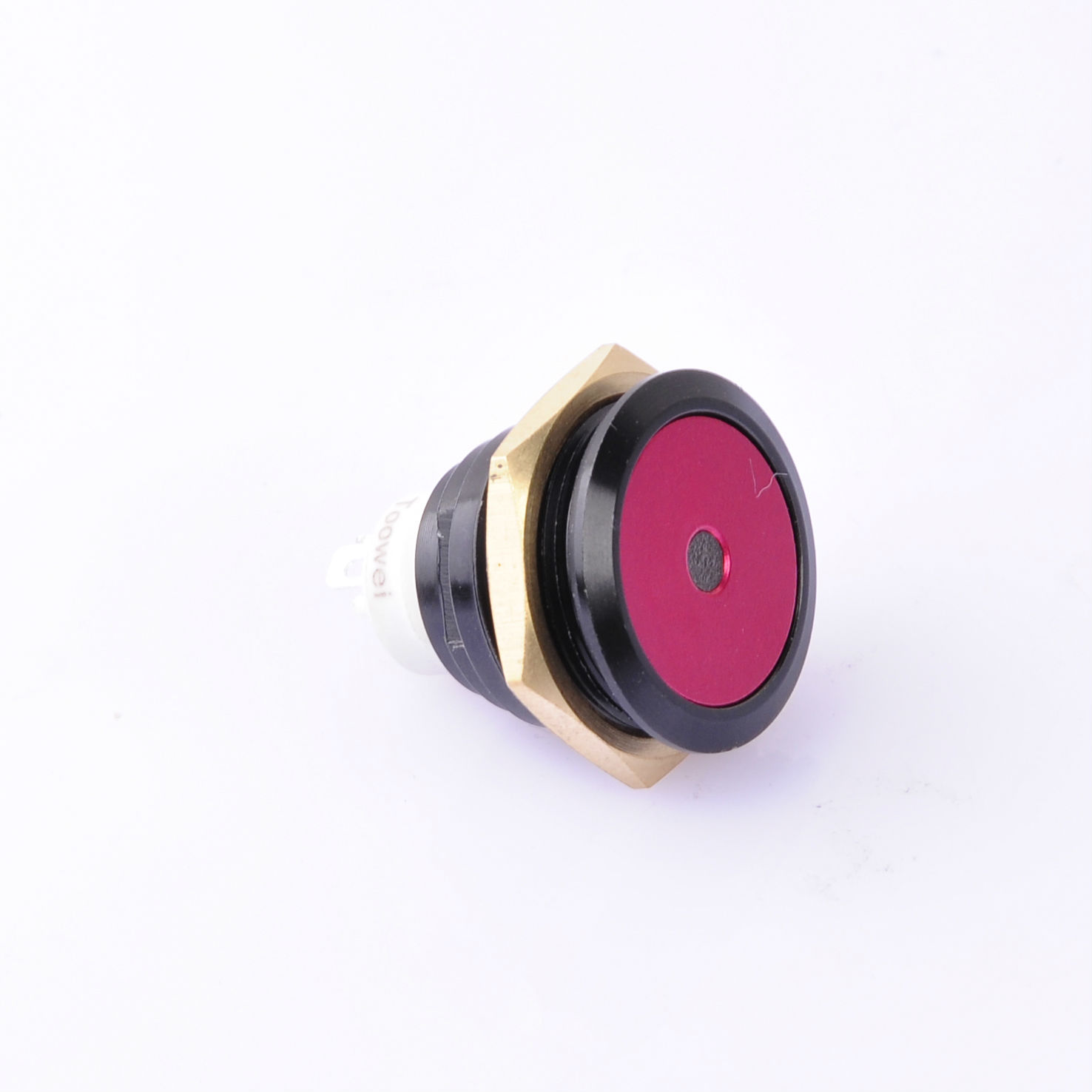

IP67 Waterproof Momentary Push Button Switch
Share this page
Model No.:
4196
Brand:
TOOWEI
Size:
19mm
Package:
Yes
Customised:
Yes
Max. Voltage:
250VAC
Operating Temperature:
-25 ~ +80 degree centigrade
Max. Current:
4A
Mechanical Life:
800000 times
Max. Working Pressure:
6N
Protection Level:
IP67
Description
Contact Supplier
Description
  • Toowei Factory Supply CE RoHS Approval IP67 Waterproof momentary push button switch
  • 1.  A4196 series waterproof pushbutton switch , metal waterproof  pushbutton switch , overall waterproof pushbutton switch protection degree up to IP67 .
  • 2.  Mounting Dimension:19mm
  • 3.  Material : Plastic or Matel
  • 4.  Function:Self-locking or Non self-locking(Momentary)
  • Rating Value: 1A 250VAC/4A 125VAC
  • Ambient Temperature: -25 °c to +80 °c
  • Founction :ON-OFF/(ON)-OFF
  • Protection Degree:IP67
