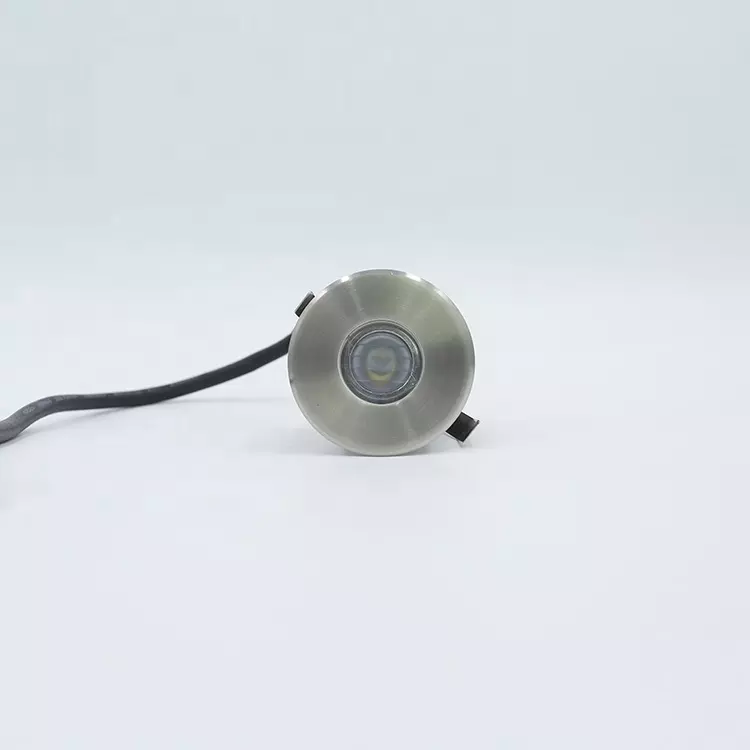

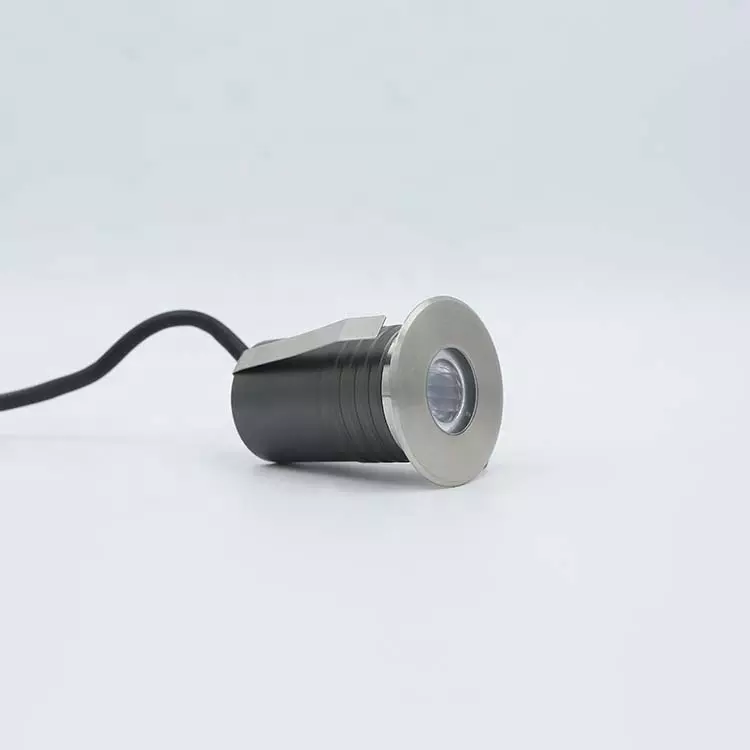

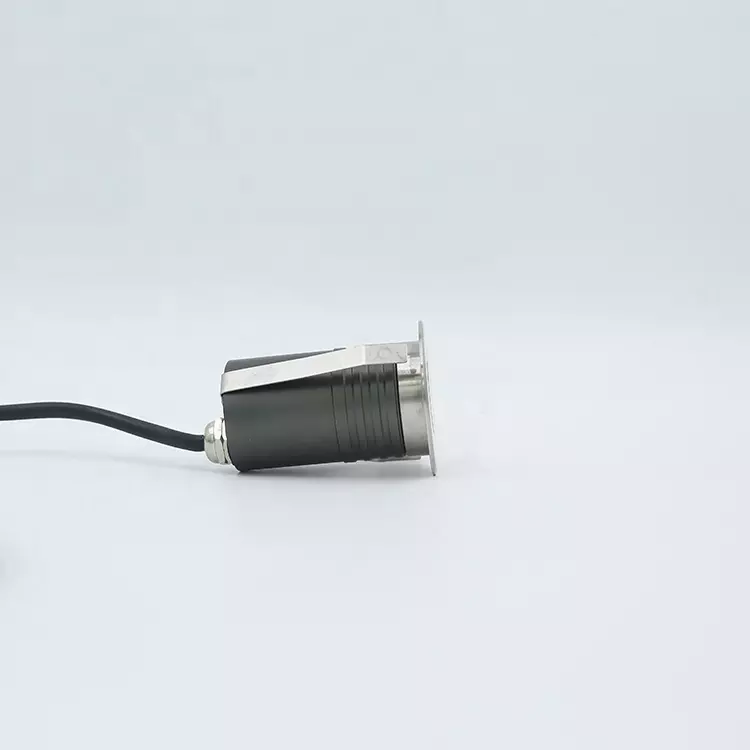

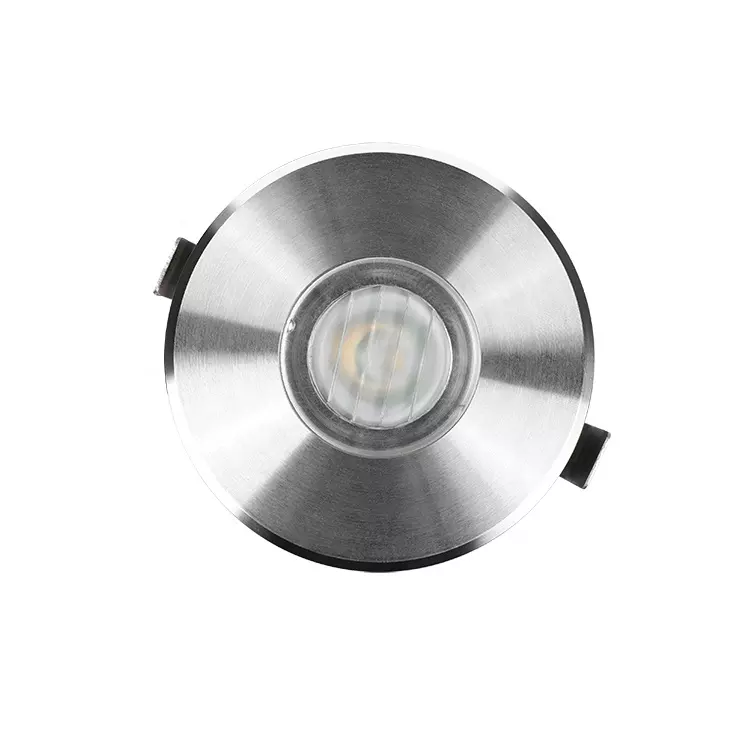

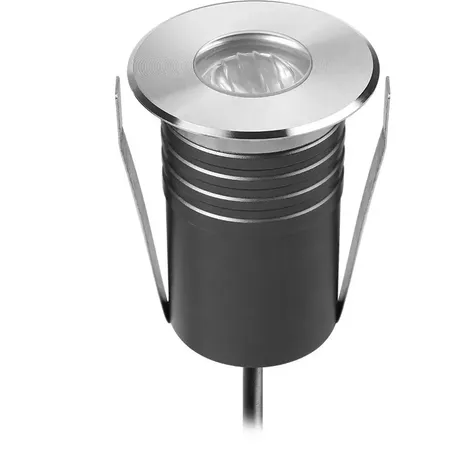

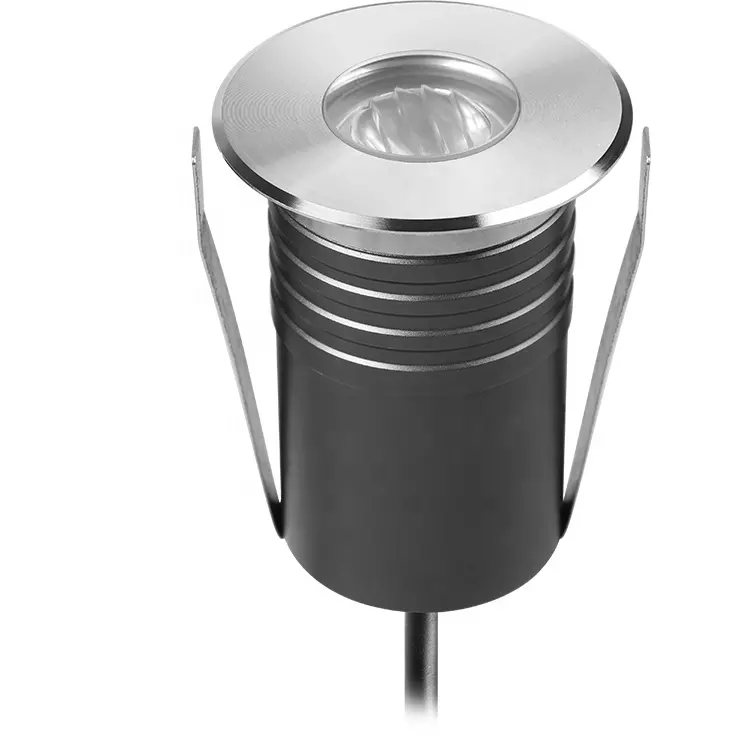

IP67 aluminium 3w RGYB asymmetric underground light outdoor symmetric buried led underground light
Production Lead Time:
15~25 day(s)
Shipping Method:
Ex-works
Brand:
PLAYLITE
Customised:
Yes
Material:
Aluminium
Is Dimmable:
No
Light Source:
LED
Model No.:
UL-1009-0300-C
Lighting Style:
Modern
Size:
55x70 (mm) Diameter x Height
Weight:
0.356 kgs
IP rating:
IP67
Beam angle:
Symmetric: 5°, 10°, 17°, 23°, 28°, 43°, 58° Asymmetric: 15 °x25°, 15 °x30°, 15 °x45°, 15 °x60° (tilt +pan)
Power:
3 Watts
Luminous flux:
110~130 lm
CCT:
2700K,3000K,4000K,6000K,R/G/Y/B
Input voltage:
DC24V / DC12V as standard, (AC100~240V as options)
Description
Contact Supplier
Description
General Data | |
Item No. | UL-1009-0300-C |
Power | 3 Watts |
LED type | 1 PC 3W CREE XPE LED |
Luminous flux | 110~130 lm |
CCT | 2700K,3000K,4000K,6000K,R/G/Y/B |
CRI | 80+ |
Beam angle | Symmetric: 5°, 10°, 17°, 23°, 28°, 43°, 58° |
Dimension | 55x70 (mm) Diameter x Height |
Cut out | / |
Net weight | 0.356 kgs |
Warranty | 3 years |
Certifications | CE, RoHS |
Electrical Data | |
Input voltage | DC24V / DC12V as standard, (AC100~240V as options) |
Insulation class | Class III |
Cable | 1PC rubber cable 1M H05RN-F 2x1mm square |
Driver | Low voltage constant current output, excluding the transformer |
Construction Data | |
IP rating | IP67 Waterproof |
Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
Protection finishing | 20~25μm thickness anodized film for housing. Dark grey standard,silver color as options. |
Trim | Passivated (Anodizing) Aluminum |
Glass | Step tempered Glass.T=6mm. |
Loading capacity | 320 kgs |
Cable Gland | PG7 IP67 |
Gasket | O-ring PMQ silicone seal |
Accessories | |

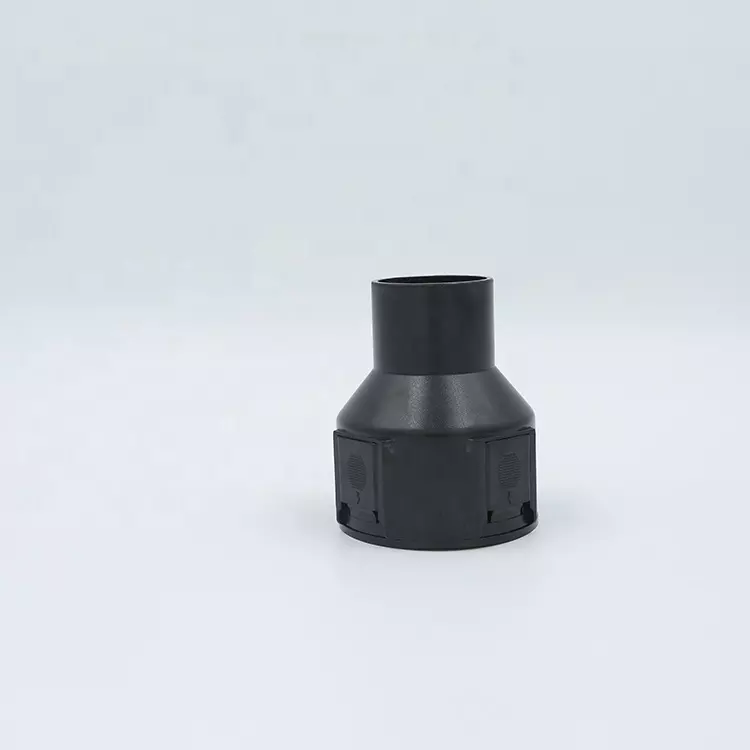

Spike | Anti-corrosion black PVC, with screws fixed |
