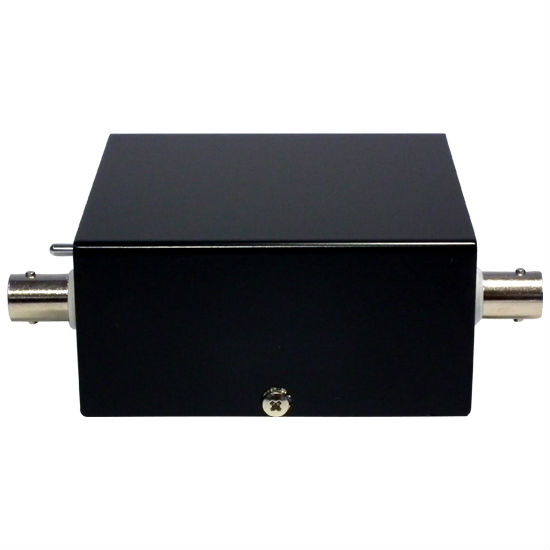

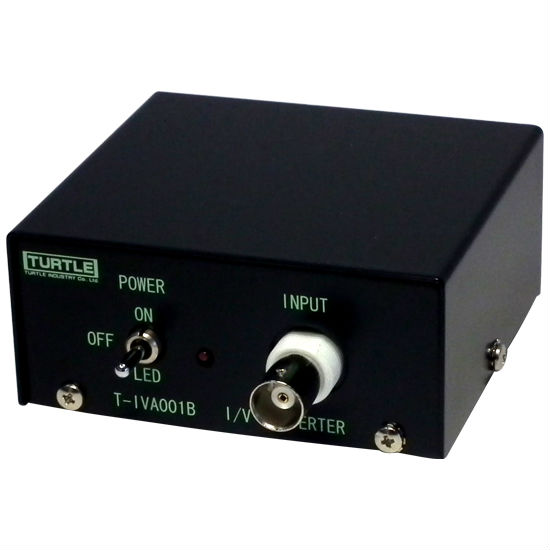

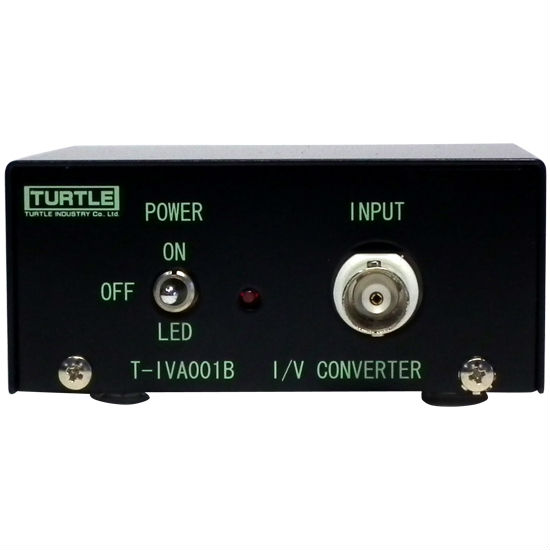

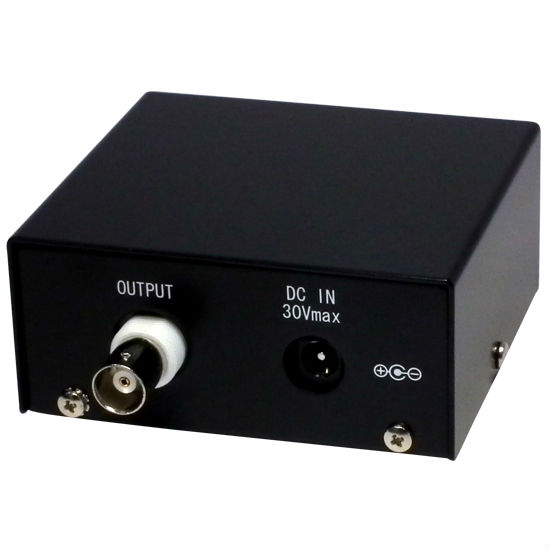

IV Conversion Amplifier

Model No.:

T-IVA001BZ

Brand:

TURTLE INDUSTRY Co., Ltd.

Colour:

Black.

Size:

W80 x H35 x D75mm.

Port:

Narita Airport

Type of Payment:

remit by cable in advance

Minimum Order Quantity:

5 piece(s)

Description

Contact Supplier

Weight: approx. 200 g (cables and other accessories not included).
Conversion gain: 1E6 (standard conversion resistance 1MΩ).
Conversion error: Within approx. ±1%.
Frequency property (small signals): approx. 140KHz ± 3dB (on a test circuit with a signal source of 1MΩ resistance).
Maximum output voltage: approx. ±12Vp (power supply voltage of 30V).
Noise voltage: 0.2mVrms or less (input open, electrostatic shield).
Output resistance: 50Ω.
Power supply voltage: DC6V ~ 30V.
Consumed current: approx. 6mA (power supply voltage of 30V).
Operating temperature: 5C ~ 45C.
Conversion rate: 1M (I / V Converter (1M) T-IVA001BZ Mega) [V/A].
Convert minute currency to voltage.
DC input type enable input by battery power.
Small and lightweight.
Easy to use.
Compliant with RoHS.
Best suited for radiation beam pass monitoring.
Designed for use with current source sensors including photodiodes and photomultiplier tubes.
Available optional range: 10k (kilo) to 3M (mega) [V/A].
