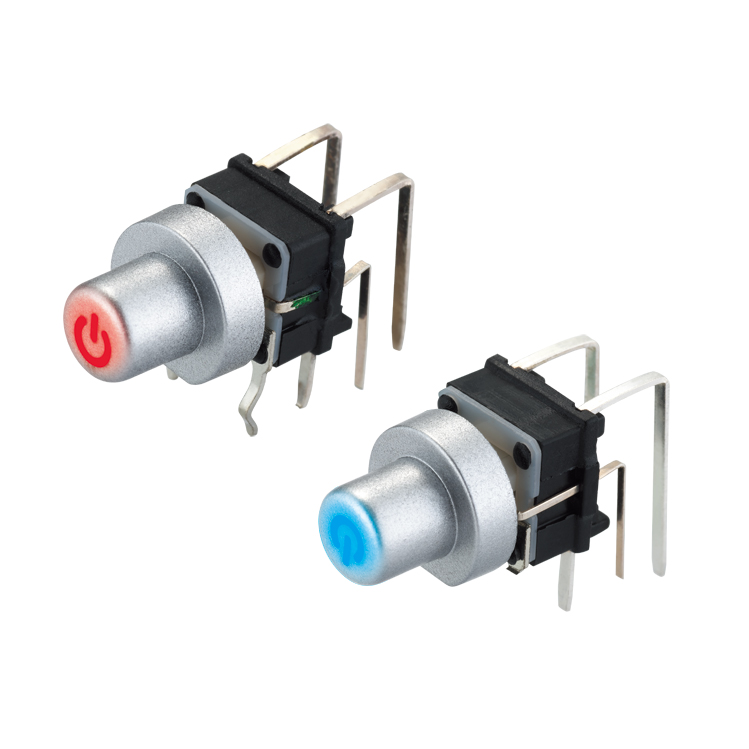

Illuminated Tact Switch

Model No.:

SPL6 series

Type:

Through hole, SMT and Right angle

Contact Rating:

50mA 12 VDC

Life Cycle:

50,000 cycles

Contact Resistance Insulation Resistance:

100mΩ max. (initial)

Insulation Resistance:

100MΩ min.

Description

Contact Supplier

The LED illuminated switches are available in thru-hole & SMT models
These switches operates in SPST circuit with contact rating of 50mA in 12 V DC
They have a mechanical and electrical life of 100,000 cycles
Its contact resistance is up to 100 milli ohm initially and insulation resistance is 100 M ohm min
The dielectric strength of the tact switches is 250 V AC for 1 minute
This switch may be used for the power supply of various electrical appliances at home, office, etc
