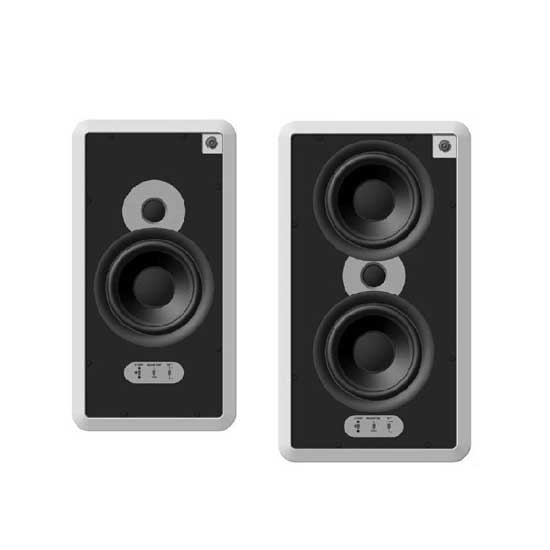

In-Wall and In-Ceiling Speaker

Model No.:

IWTS-7 LCR/IWTS-14 LCR

Description

Contact Supplier

These speakers offer superb front-channel sound for home theaters or whole-houses. They come with audio MDF baffles for superior acoustic performance and LRT wide-dispersion tweeters for better sound coverage. Both models are well-suited for surround channel use in 5.1CH or 7.1CH systems.

Atlantic exclusive DVC control directs sound electronically, not mechanically.
Simple, tried-and-true frame baffle installation.
Cut-out dimensions: (W) 8 1/2 x (H) 16 1/2 inches (216 x 420mm) and (W) 9 5/8 x (H) 17 7/8 inches (245 x 454mm).
Drivers/design: 2-way 6 1/2 inches (165mm).
GLH x woofer: 1 inch (25mm).
Soft dome tweeter: 2 1/2-way (2) 6 1/2 inches (165mm).
GLH x woofers: 1 inch (25mm) soft dome tweeter.
Frequency response: 53Hz to 20kHz, ± 3dB or 47Hz to 20kHz, ± 3dB.
Sensitivity: 87dB.
Impedance: 6Ω.
Crossover frequency range: 2,100kHz/800, 2,100Hz.
Size: (W) 9 1/4 x (H) 17 3/4 x (D) 3 7/8", 236 x 449 x 100mm and (W) 10 13/16 x (H) 19 x (D) 3 7/8", 274 x 484 x 100mm.
