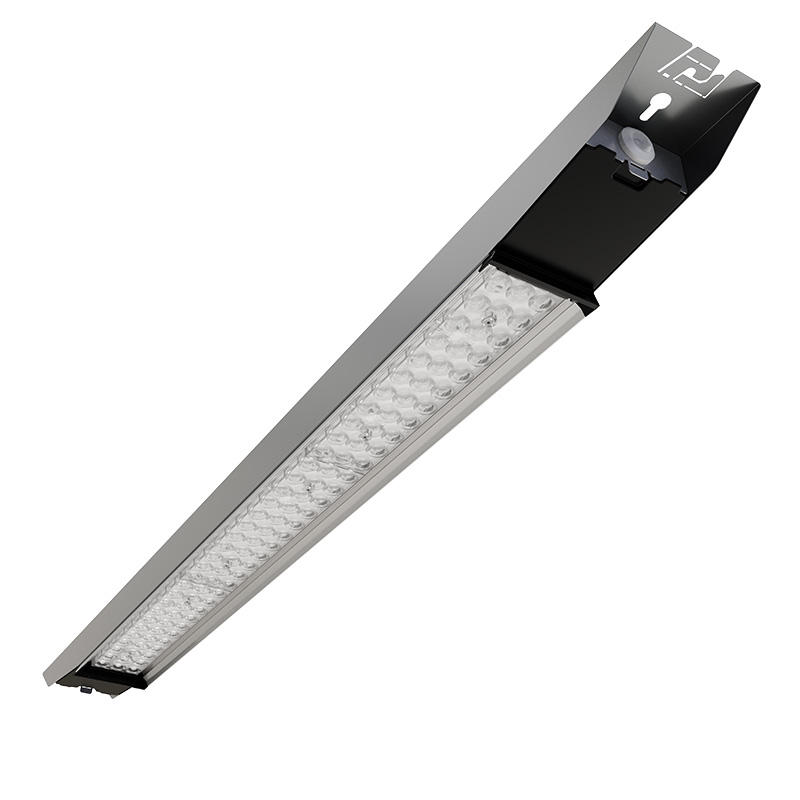

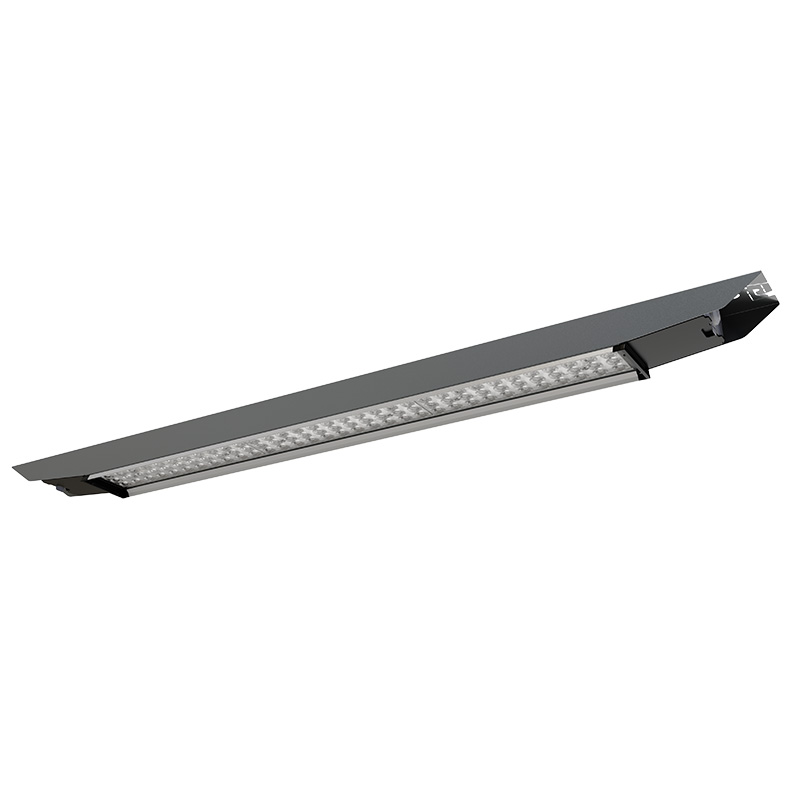

Industrial Linear LED Light
Share this page
US $57.00 - US $95.00
US $60.00 - US $100.00
Production Lead Time:
20 day(s)
Shipping Method:
EXW
Brand:
TUBU
Customised:
Yes
CCT:
3000K/4000K/5000K/6000K
Beam Angle:
30°60°90°
Description
Contact Supplier
Description

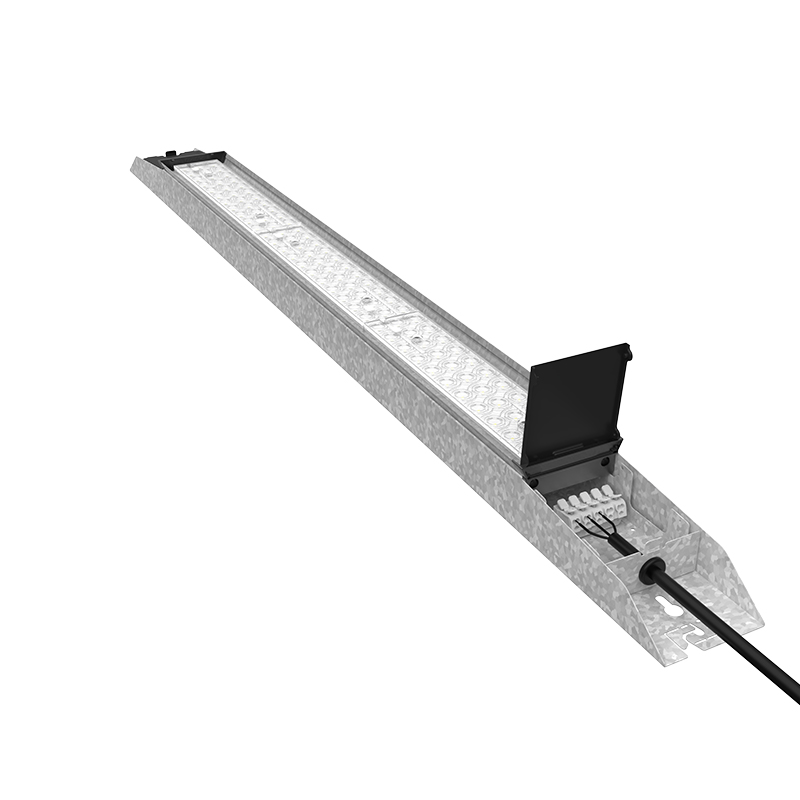

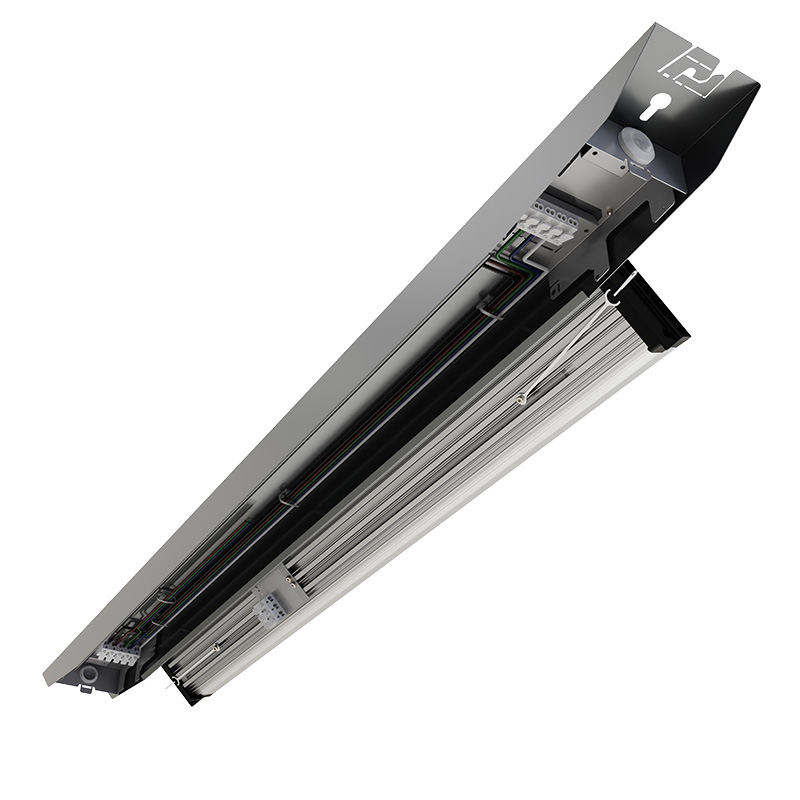

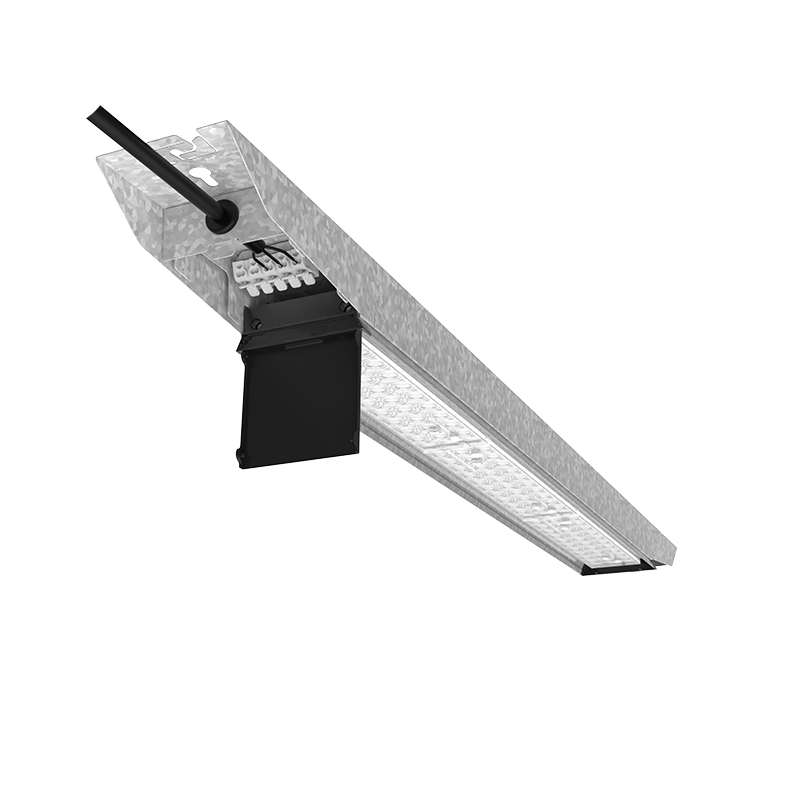

TUBU's patented design Industrial Linear LED Light L16 is a cost-effective and powerful lighting solution for your industrial needs. Focusing on sustainability, the light features a replaceable light engine that can be easily removed and replaced, extending the life of the entire light and reducing maintenance costs.


To further customize your lighting experience we offer an optional DALI dimmable version with adjustable CCT (color temperature) ranging 3000K/4000K/5000K/6000K . And choose from a wide beam angle of 30°, 60°, or 90° to tailor the light source to your specific needs.

Additionally, our industrial linear LED lights are available in three high-quality driver options: Meanwell, Philips, and Sosen. These well-known brands are known for their superior LED drivers, ensuring optimum performance and longevity.

There are regular versions and economical versions. The regular version uses ADC12 aluminum die-casting shell for perfect heat dissipation. The economical version uses an iron plate shell, which is durable and cost-effective.

Tech Specs:
Product CodeTBL16-75WTBL16-90WTBL16-120W
Power75W90W120W
Input Voltage200-240VAC/100-277VAC (50/60HZ)
Input Current0.90A@220VAC0.19A@220VAC0.23A@220VAC0.28A@220VAC
PF0.90@220VACV/Dali
Dimming OptionDail
RA>80CCT3000K/4000K/5000K/6000K
Efficiency11250Lm/W±5%13500Lm/W±5%7500Lm/W±5%1800Lm/W±5%
LEDs Type2835/3030
Beam Angle30°60°90°
Storage Temp-20℃~+40℃
Operation Temperature-20℃~+60℃
Life SpanTa 40℃ L70>54000Hours
IP ClassIP23
IK ClassIK08
CertificateCE, RoHS
Lamp Body ColorPainted(Ral 9006) Galvanised steel; LED Body: Extruded Aluminium
Product Size ( mm )1230*94*661800*94*661800*94*66
Packing Size ( mm )1270*241*2601840*241*1851860*241*185
Quantity / Carton6pcs4pcs4pcs
Gross Weight ( kg ) ± 0.319.8819.8419.84
InstallationSurface Mount & Suspenion Mount
