Industrial Power Supply
Production Lead Time:
30 day(s)
Model No.:
KRE-1206000D
Brand:
KRECO
Size:
160x95x40mm
Output Voltage:
12V DC
Input Voltage:
100 to 240V AC
Output Power:
72W
Output Current:
6000mA
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description

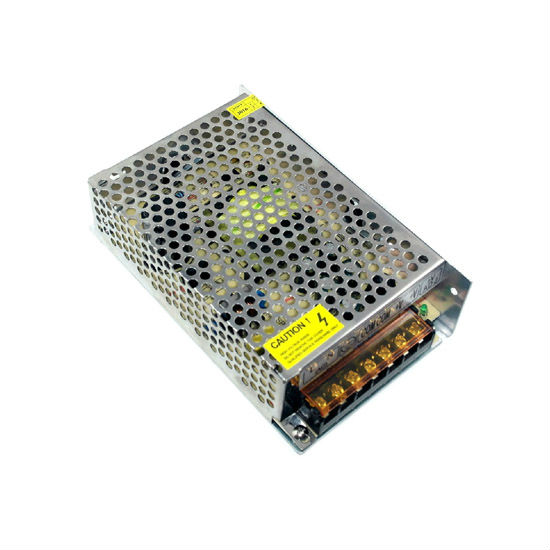

- 72W 12V 6A switching power supply
- C/N: KRE-OPS70W
- Model: KRE-1206000D
- 2 years warranty
- 10 years of industry experience 3 to 360 watts for your customized requirement
- Average working no trouble 50,000 hours
- Product Electric Parameters
- Input: Voltages: 115 to 240V AC
- Frequency range: 50 to 60Hz
- Surge: 20A at 120V AC, 40A at 230V AC
- Output voltage: 12V DC
- Output current: 60000mA
- Output voltage can be adjusted ±10% Start-up time Leq 1S(input230V,Io=100%) keep time More than or equal to 20mS (input230V,Io=100%)
- Voltage regulation (Full load) leq 0.5% built-in EMI filter 100% load test Full range of input voltage output voltage accurate and stable
- Output over-voltage, over-current and short-circuit protection Output low ripple and noise
- Features: built-in EMI filter 100% load test
- Through the fan make temperature decrease
- Full range of input voltage output voltage accurate and stable
- Output over-voltage, over-current and short-circuit protection Output low ripple and noise 3 to 360W for your customized requirements
- Average working no trouble 50,000 hours
- Height above sea level: f2,000m
- Safety standards: according with GB4943 UL60950-1 EN60950-1 EMC standards according with GB9254 EN55022 class A EN61347-2-13: 2008
- Protection functions: Natural cooling air convection
- Overload protection: 105 to 150% rated power, automatic recovery
- Over-voltage protection: 105 to 150% of the rated voltage
- Environmental: Working temperature: -20 to 60°C/20 to 90% RH (no frost)
- Storage temperature: -40 to 85°C/10 to 95% RH (no frost)
- Insulation intensity: Input to output: 1,500V AC/1 minute
- Input to ground: 1,500V AC/1 minute
- Input to ground: 500V AC/1 minute
- Packing: Weight 0.7KG/PCS
- Structure Size (L x W x H): 160 x 95 x 40mm
