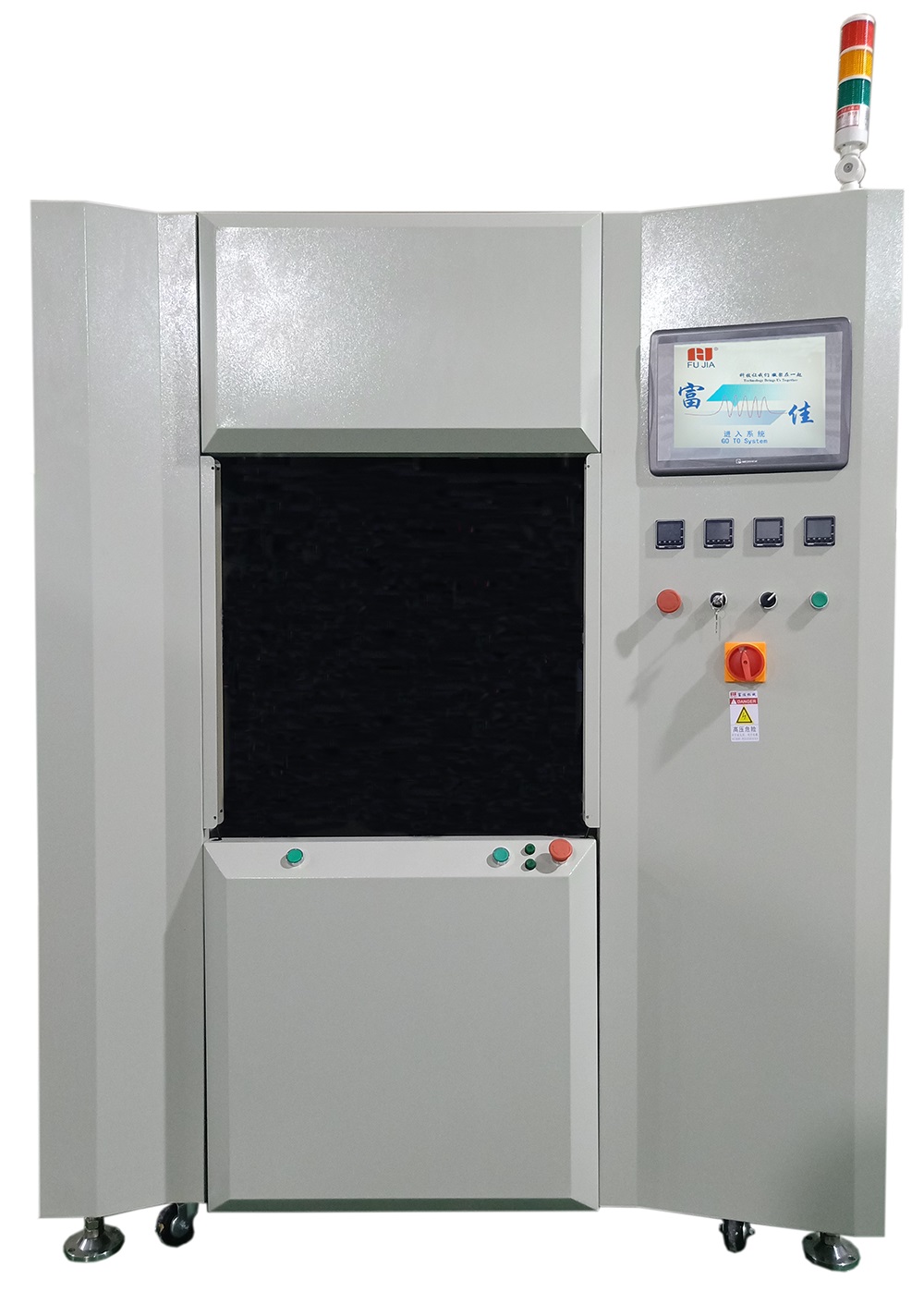

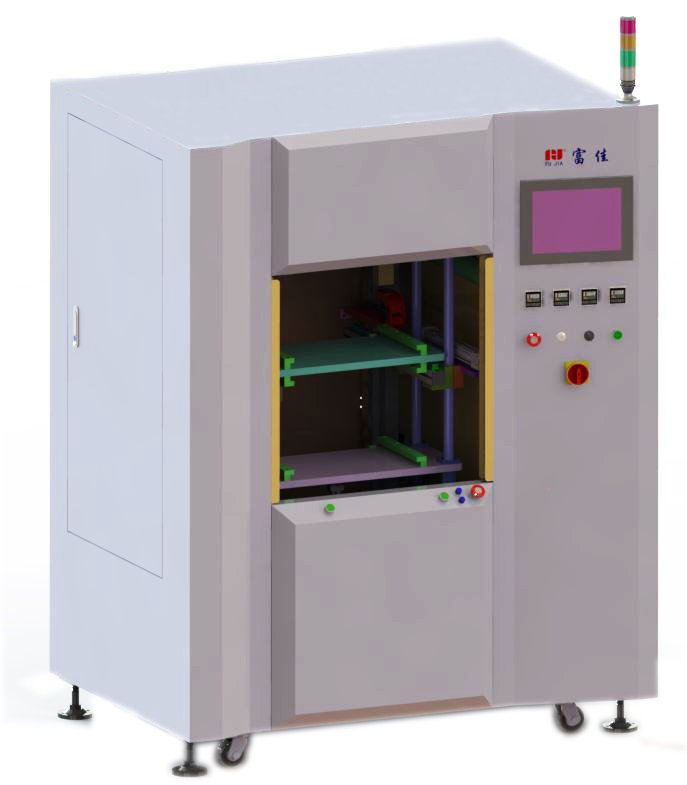

Infrared Plastic Welding Machine
Production Lead Time:
45 day(s)
Model No.:
FJ-IR8000
Brand:
FuJia
Colour:
Grey, Black, Dark Blue
Size:
350 x 260mm
Port:
Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
1 piece
Customised:
Yes
Description
Contact Supplier
Description
Infrared Plastic Welding Theory:
- In a non-contact manner, a focused infrared beam transmits heat energy to the targeted weld area,Under the action of infrared energy,the plastic surface is rapidly heated and platicied. After the temperature reaches the welding requirements,the cylinder or servo motor will push the plastic welding surface to generate certain pressure,which then allowed to re-solidify and weld the two components tightly.
- Automobile-- automotive upholstery,air valves,automotive radar, air filter.
- Medical-- blood analyser,fluid containers.
- Household-- steam iron water tank,large size lamp-chimney, shower head.
- Printing supplies-- ink cartridge,toner cartridge.
- Model: FJ-IR8000
- Control Systerm: Fujia
- Driven: Pneumatic/servo/Hydraulic
- Working Area Size :350*260mm
- Weight :660KGS
- Dimension :1420*980*1818mm
