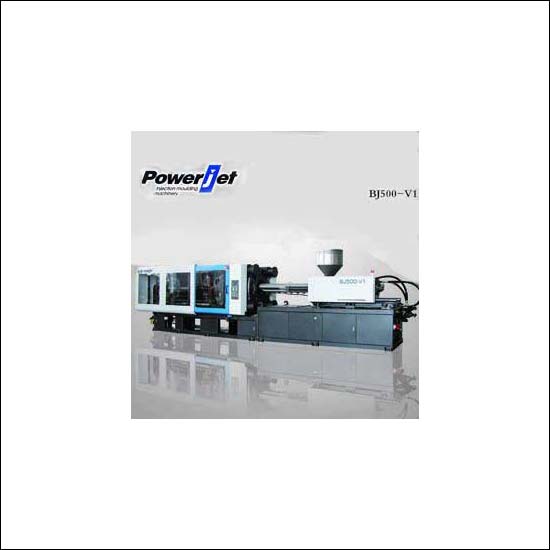

Injection Molding Machine
Model No.:
BJ-500V6
Brand:
Powerjet
Size:
8.7*2.1*2.3 m
Port:
SHENZHEN
Type of Payment:
TT/LC
Minimum Order Quantity:
1 Set
Description
Contact Supplier
Description
- CLAMPING UNIT
- Clamping force 5000 KN
- Opening stroke 760 mm
- Max. daylight 1585 mm
- Platen size 1260*1260 mm
- Space between bars 820*780 mm
- Max. mold height 825 mm, Min. mold height 300 mm
- Ejector stroke 220 mm, Ejector force 135 KN
- INJECTION UNIT
- Screw diameter 75 85 95 mm
- Screw L/D Ratio 23.8 21 18.8mm
- Injection Pressure 209 163 130 Mpa
- Shot volume 1722 2212 2763 cm2
- Shot weight(ps) 1618 2079 2597 g, 57.1 73.3 91.6 OZ
- Injection rate 390 418 522 g/sec
- Plasticizing capacity 50 61 83 g/sec
- POWER UNIT
- Hydraulic system pressure 17.5Mpa
- Pump motor power 45 KW
- Heater power 28 KW
