Model No. : MT82-B21A

Material : SUS304

Spec : ID 7±0.05 x OD 11±0.2 x L 7.2 ±0.1 x t= 2.0  Joint Gap : 0.05 below

Dimple Shape : (0.8x1.6) 凹 (0.3)

Purpose : Use for automotive

Description :

1. Indents are shaped square by standard (see fig.) and 1/4t to 1/2t in depth.

2. Nominal diameter also represents bolt diameter.

3. Internal diameters are measured by pin gauge.

4. Numbers in the table represent numbers of rows.

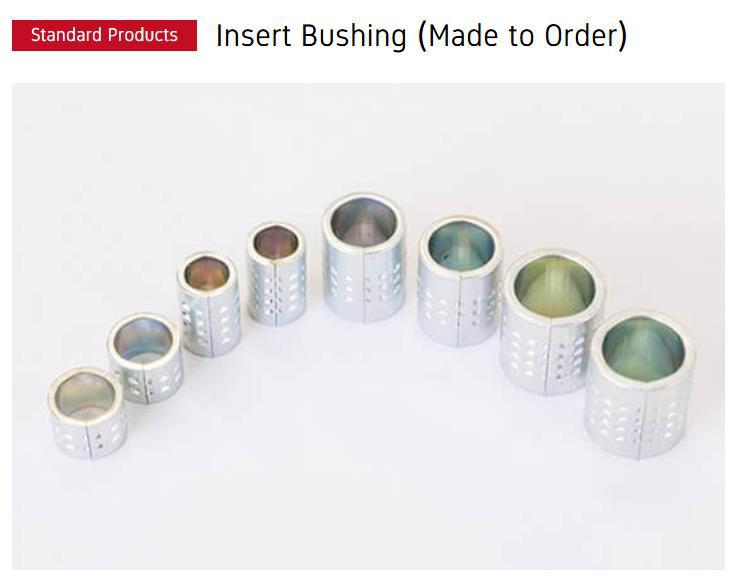

5. Production of Insert Bushing is available on request (made-to-order).

6. Diamond, straight, or other knurling patterns also available for indents.

Can custom-made by providing drawings. Up to many different sizes from 4 inch to 12 mm.

Can OEM? : No, can't add logos.

MOQ : 150,000pcs
