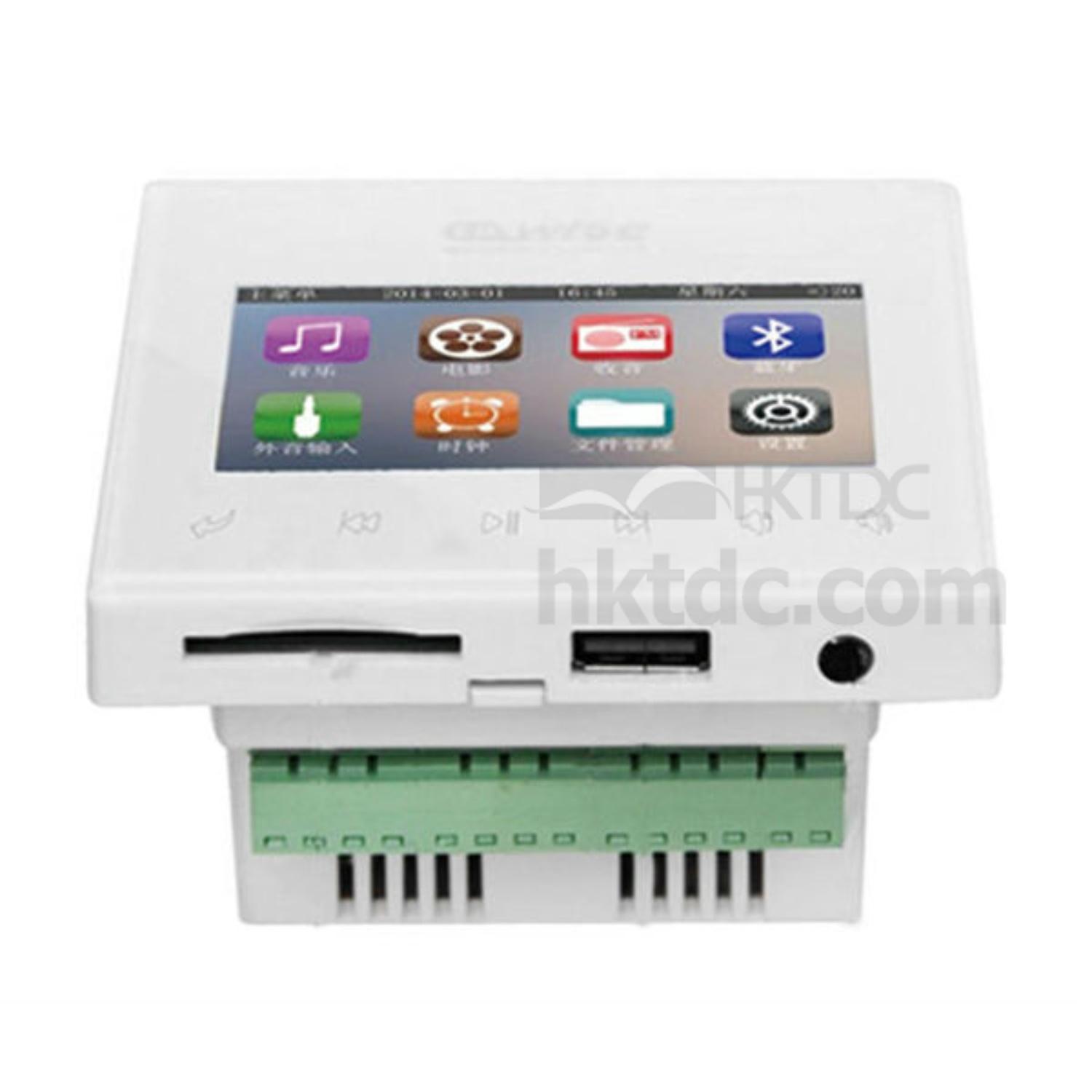

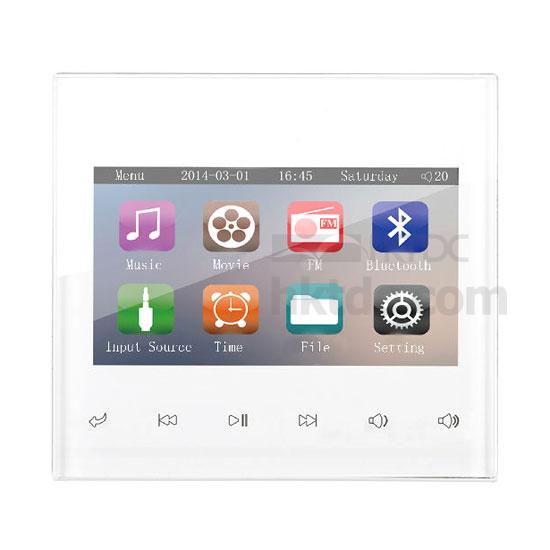

Integrated in-Wall Amplifier, Bluetooth in Wall Amplifier
Production Lead Time:
15 day(s)
Model No.:
WS-BM200
Size:
86 x 86 x 52mm
Port:
Ningbo
Type of Payment:
30% prepayment with PO, rest against copy of BL.
Minimum Order Quantity:
100 piece(s)
Output Power:
2X25W
Package:
Yes
Customised:
Yes
Type:
Mini Amplifier
Channels:
2
Description
Contact Supplier
Description
Product features
Technical specifications
- Stereo amplifier module (2 x 25W)
- Bluetooth connectivity for wireless audio input of iPhone, iPad, smartphones, etc
- 1 x Wired input source: 1 x wired input terminal (on rear PCB)
- USB and SD card player (at bottom of unit)
- USB charging
- 2x wired Audio Output (on rear PCB)
- 1 x wired A/V Output,720P (on rear PCB)
- Built-in FM radio
- 1 x RS485 connector
- Music player
- Video player
- Time display
- Set time to turn on/off the unit

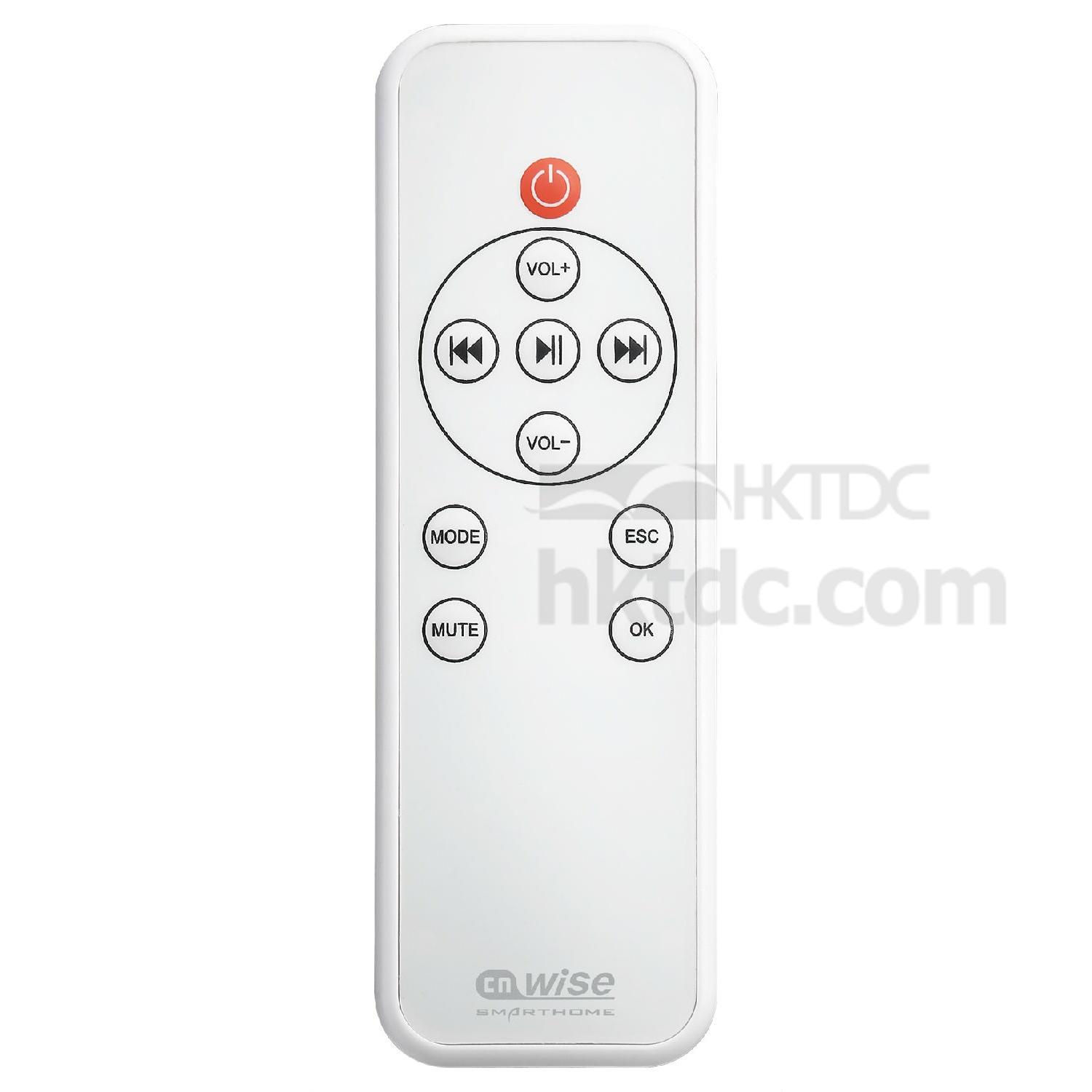

- Infrared remote control

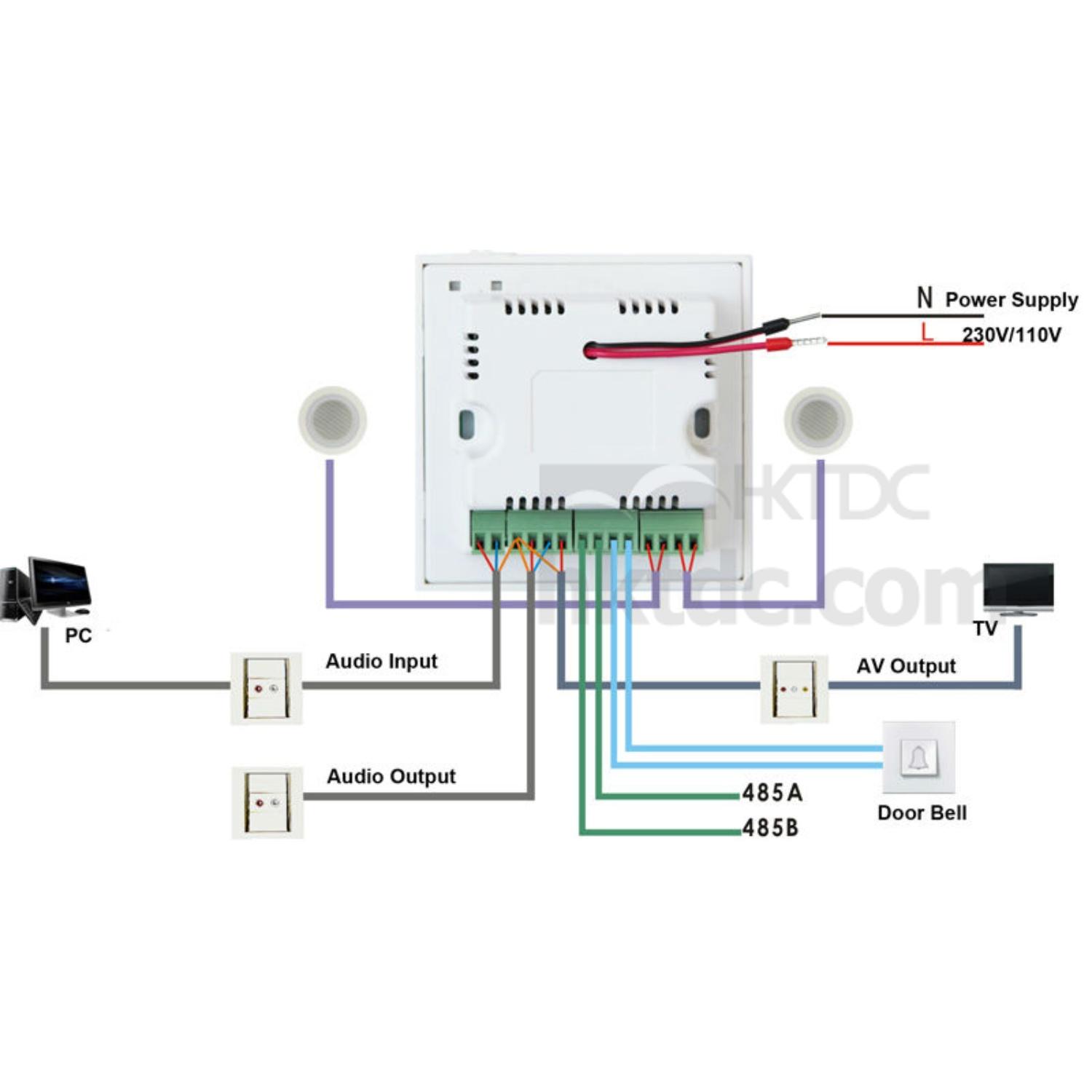

- Screw terminations on the rear of the unit for loudspeakers, power and wired line input
- Includes in-line power supply
Technical specifications
- 3" TFT Screen
- Power Supply: AC100-240V
- Output Power:25W+25W (max)
- Input Impedance: 10KΩ
- Output Impedance: 4-8Ω
- THD:0.03%
- Frequency response:20Hz-20KHz
- Extended SD card up to 32G
- Bluetooth Transmission Distance: ≤ 10M
- Product size: 86 x 86 x 52mm
