产品功能描述 Product function description

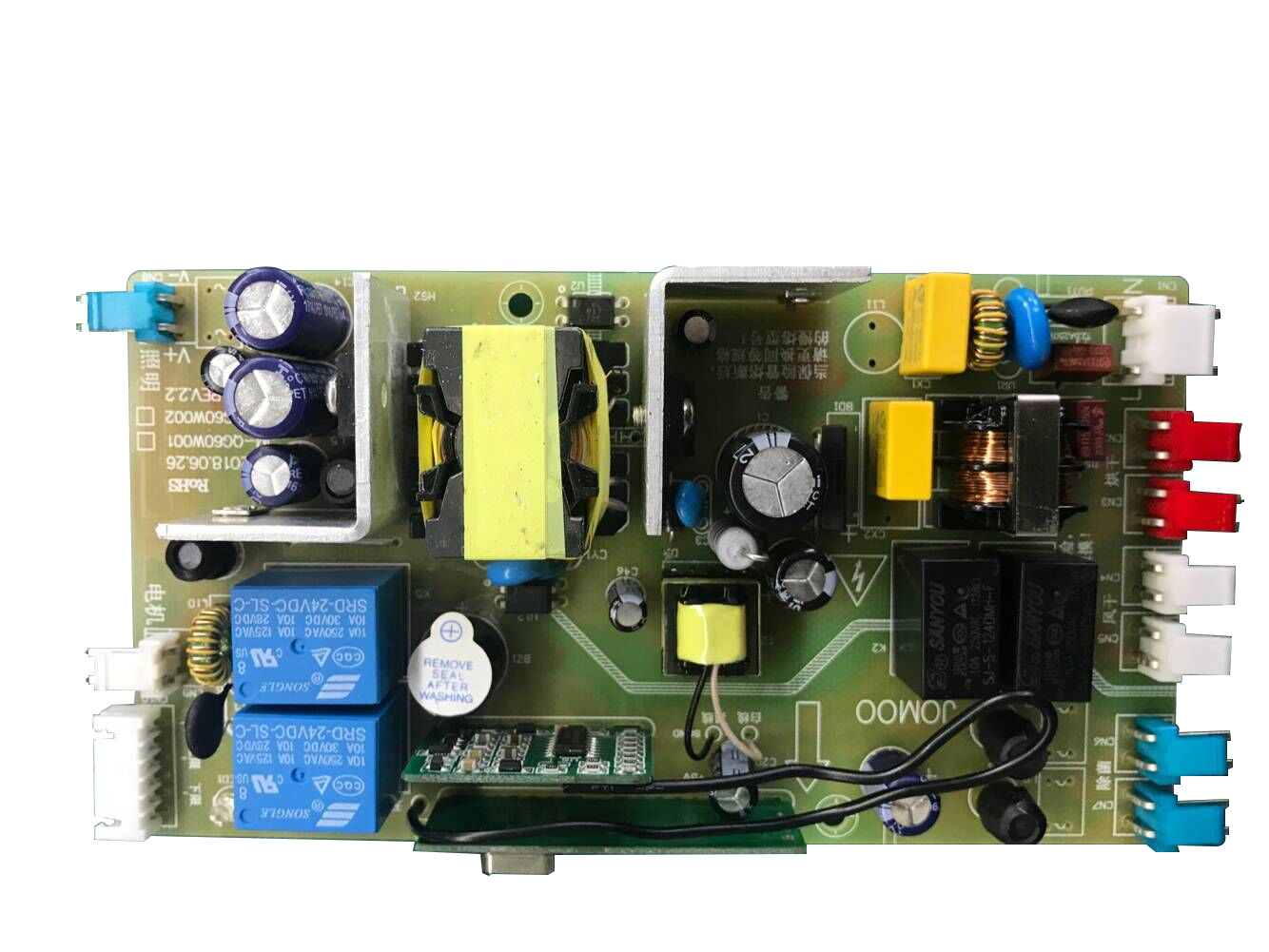

该控制器主要针对智能电动晾衣架开发设计,可对晾衣架进行遥控控制(433MHz无线接收),属于全功能型主控模块。其主要控制功能包含有晾衣架的升/降、LED灯具的照明的驱动电源和控制、风干\烘干开关的控制功能、紫外线消毒灯的驱动电源和控制等功能模块的集成。
电机驱动电源是AC-DC开关电源,输出24VDC直流电压;LED灯具照明是DC-DC开关电源,+24VDC输入,28~38VDC输出,恒流 270MA输出;UV除菌灯是DC-DC开关电源,+24VDC输入,8~12VDC两路恒流300MA输出;
This controller is designed against intelligent electric clothes rack, it is a full-function master control which can control clothes rack though the remote control (433MHZ wireless reception).It’s main control functions include rise/fall of clothes hangers, LED driver and control of the lamp, air-drying/baking switches control ,drivers of UV lights and control, etc., with functional integration.
Power supply of Motor is a AC-DC switching power supply. 24VDC output. LED drives for light is a DC-DC power supply, with 24VAC input, and 28~38VDC output constant current is 270Ma; UV driver for UV light is DC-DC power supply, input 24V DC , output :8-12VDC 2outputs,300mA constant current.
- 无线接收功能Wireless reception function
- 无线接收频率:433.92MHz, 制式:ASK Wireless receiving frequency: 433.92MHz. System: ASK
- 无线接收电路频率漂移:≤±5KHz Wireless receiving frequency fluctuation : ≤±5KHz
- 对码时间:上电三秒内为遥控器与接收板的对码时间窗口 Code time:Code time window between
