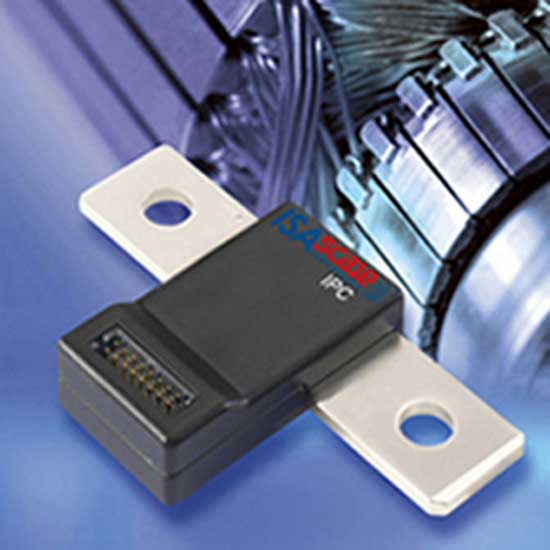

This isolated current measurement module is especially designed and made for phase current measurements and so on. The module is designed to control electric high-performance motion control units of all types. This device featuring a modular structure offers an accurate performance.

• The resulting digital signal is transmitted, potential-free, over various interfaces.
• AC/DC current measurement for drive technology.
• Currents from 2 A up to several thousand amperes can be measured by matching the shunt value.
• The module also supplies a fast over current signal (response time 2 µsec).
• A continuous current measurement of 5kA.
• With a resolution between 12 and 16 bits.
