Jaguar
US $80.00 - US $930.00
Brand:
SOGA
Customised:
Yes
Feature:
IP66 IK09, -40~55℃, Lumileds 5050, 15° horizontal module rotation, 0 upward light ratio, multiple dimming, 17-class windload, 5-yr warranty.
Material:
Aluminum
Is Dimmable:
Yes
Light Source:
LED
Model No.:
Jaguar Series
Input Voltage:
AC90-305V/AC108-528V
LED Brand:
Lumileds 5050
Housing:
Aluminum
Rotatable Modular Design:
Horizontally15°
CRI:
70 80 90
Wattage/Module:
150W
Dimming Solutions:
0-10V Dimming, DALI, DMX, clo, Zigbee
Power Factor:
＞0.95
CCT:
3000K 4000K 5000K 5700K 6500K
Description
Contact Supplier
Description
SPECIFICATIONS

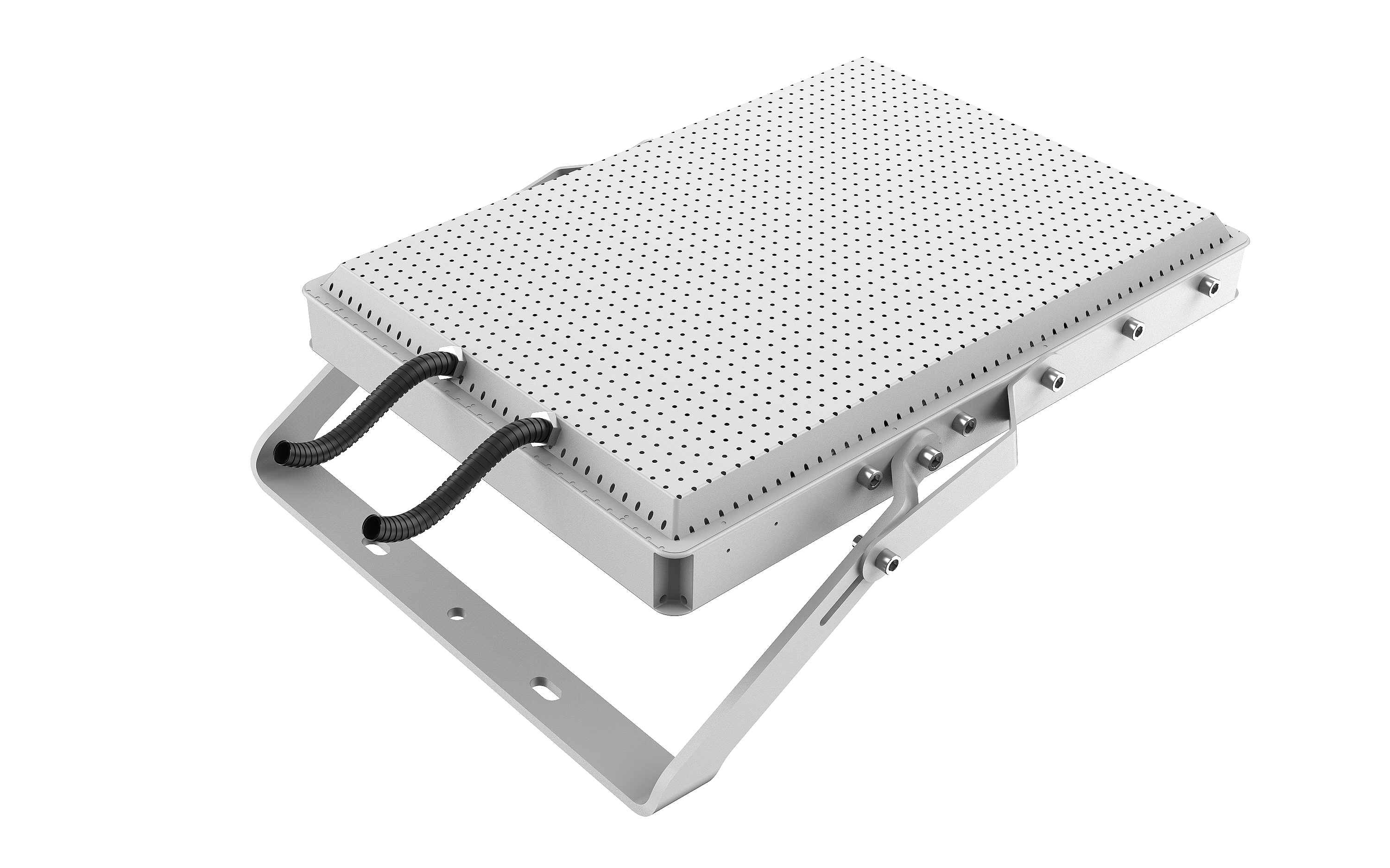

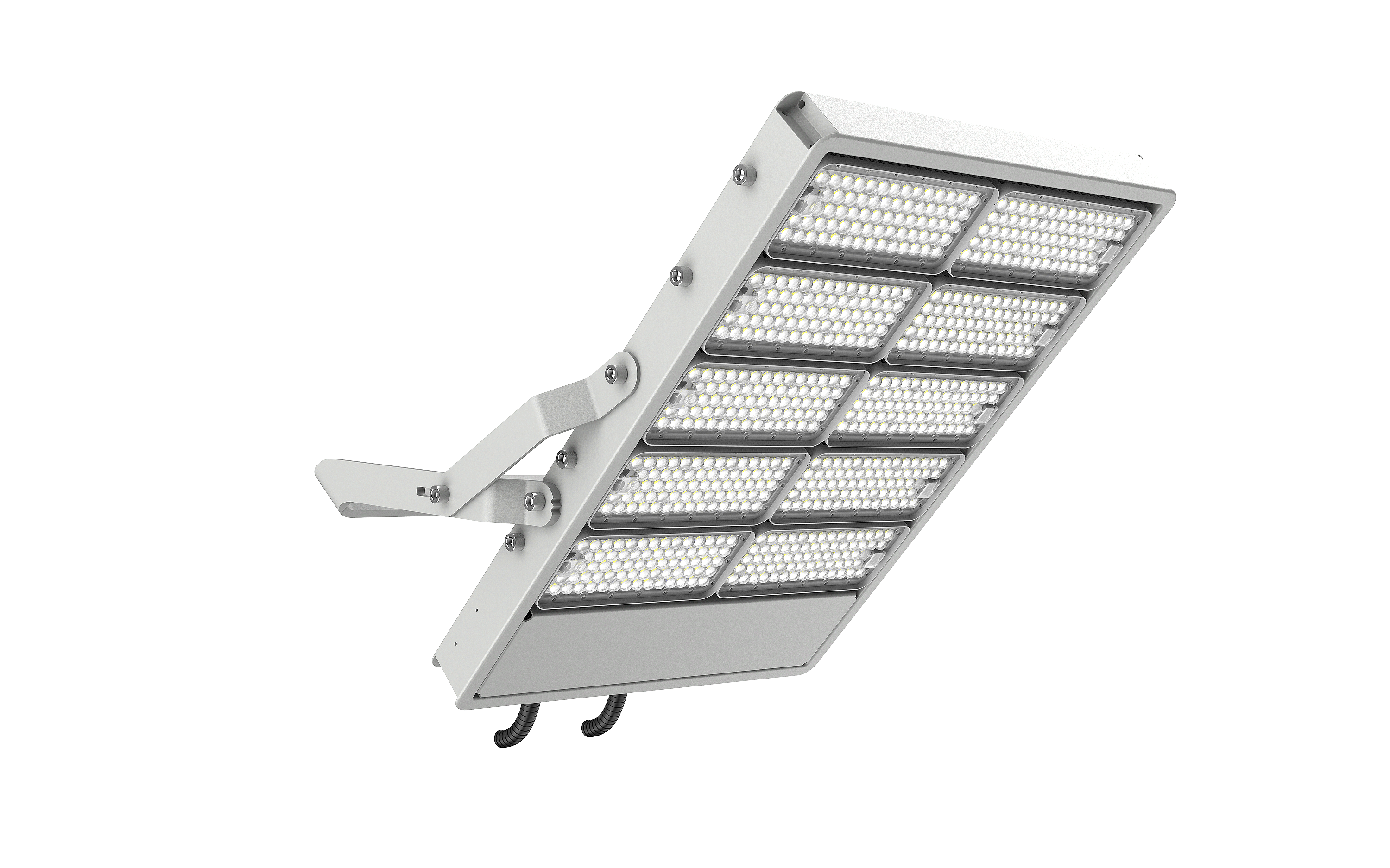

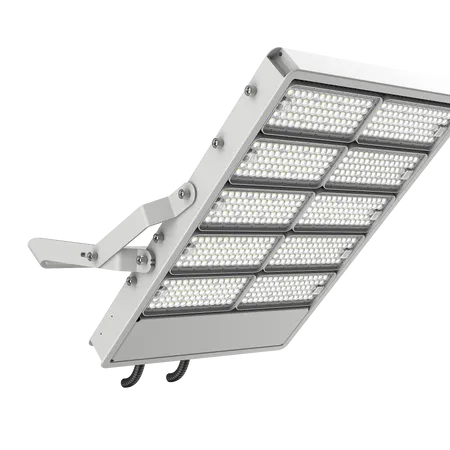

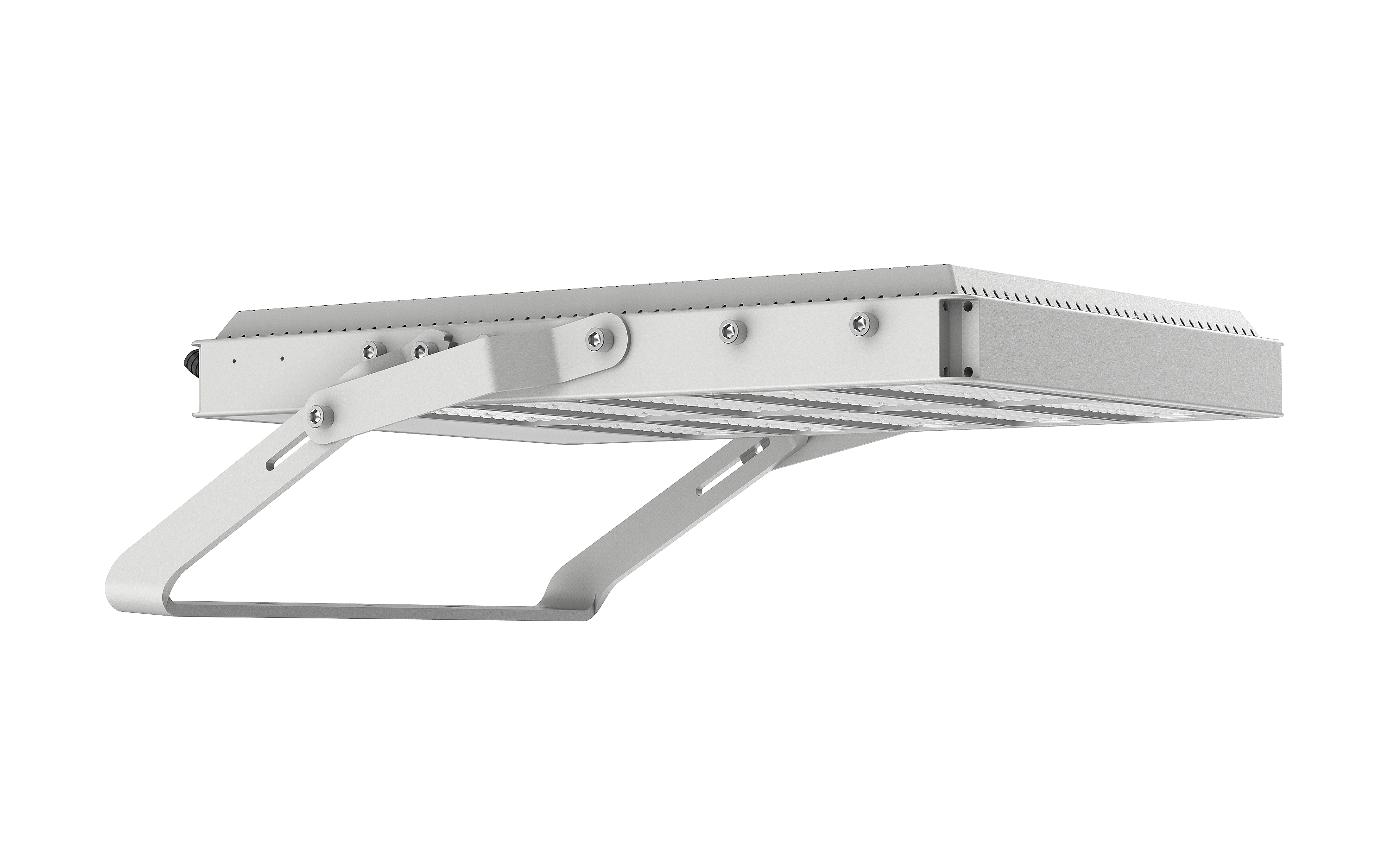

Patented c series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Aluminum | Lumileds 5050 |
| Rotatable Modular Design | Horizontally15° |
| CRI | 70 80 90 |
| Wattage/Module | 150W |
| Operating Temp | -40℃ To 55℃ |
| Dimming Solutions | 0-10V Dimming, DALI, DMX, clo, Zigbee |
| Power Factor | Power Factor |
| CCT | 3000K 4000K 5000K 5700K 6500K |
| MODEL | SG-JR-150W | SG-JR-300W | SG-JR-450W | SG-JR-600W | SG-JR-750W | SG-JR-900W | SG-JR-1200W | SG-JR-1500W |
WATTAGE Symmetrica | 150W | 300W | 450W | 600W | 750W | 900W | 1200W | 1500W |
MODEL QTY
| 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
LUMEN EFFICIENCY Symmetric | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W |
| LUMEN OUTPUT | 25,500LM | 51,000LM | 76,500LM | 102,000LM | 127,500LM | 153,000LM | 204,000LM | 255,000LM |
Anti-Glare & Obtrusive Light Control
SOGA has the best-in-class spill light and glare control
solutions. help you get rid of the glare and
obtrusive light significantly
Wireless or DMX Entertainment System
SOGA Wireless or DMX Entertainment System is designed to provide an amazing audio and visual experience to all players and fans. Millions of different colors changing effects synchronized to music beats can be simply wirelessly set up on your phone or PC or by your existing DMX system. Whether it’s player introductions, big plays, halftime shows, or post-game celebrations, SOGA Entertainment system will be an excellent option to help create an unforgettable stadium experience.
Wireless Smart Control
SOGA Complete Wireless Control Solution is designed to provide our clients not only a smart lighting solution but also a streamlined installation, trouble-free operation, and long-term reliability on the lighting projects. all SOGA lighting fixture’s lighting effect can be easily controlled through phone, PC or wall-mounted control panel by just a simple finger click. we support to design and name your own control app brand as well
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
