Jewelry Laser Welder
Share this page
Production Lead Time:
5 day(s)
Weight:
32 kilogram
Model No.:
TW60
Brand:
Leadboom
Colour:
white
Port:
Dongguan
Type of Payment:
T/T
Minimum Order Quantity:
1 piece
Customised:
Yes
Description
Contact Supplier
Description

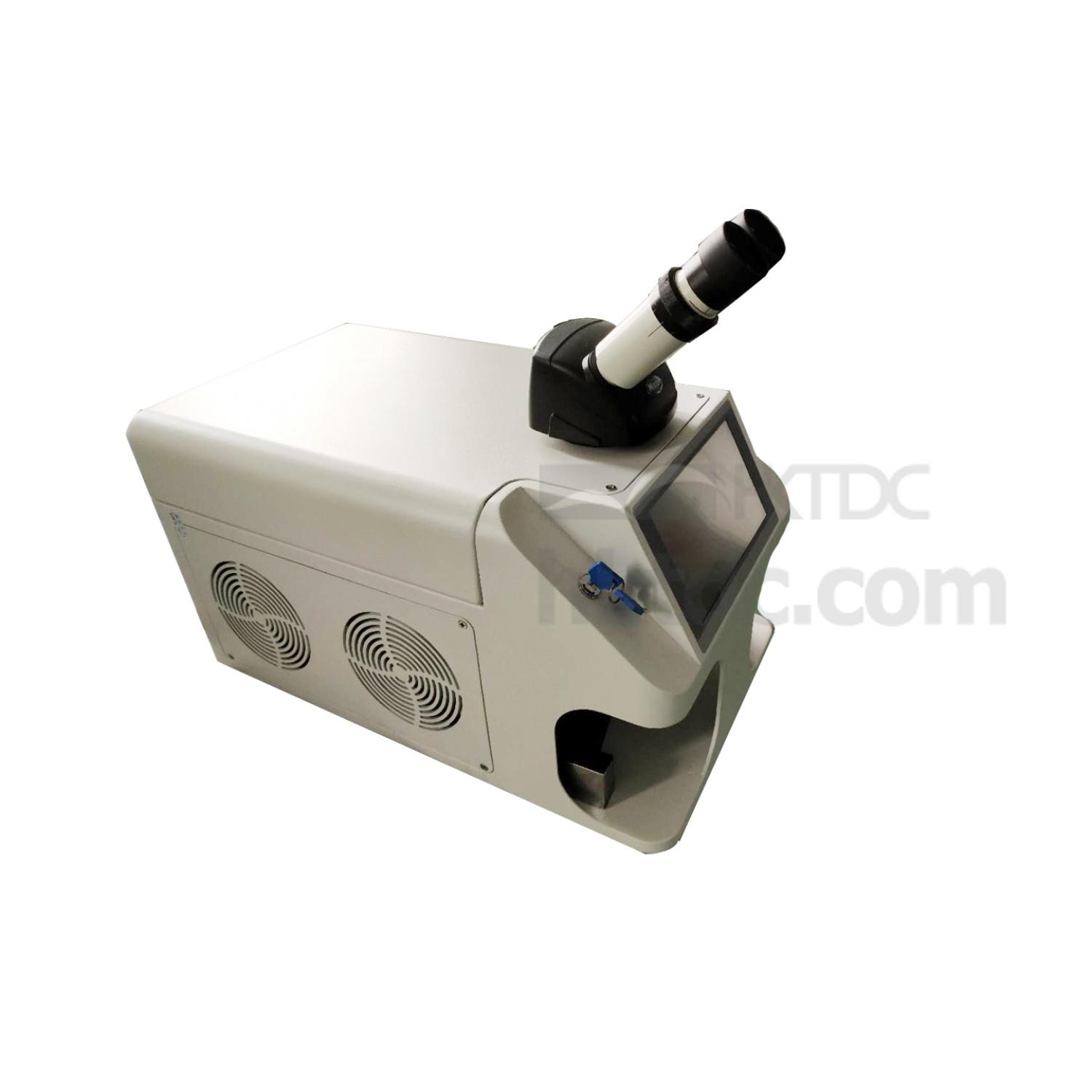

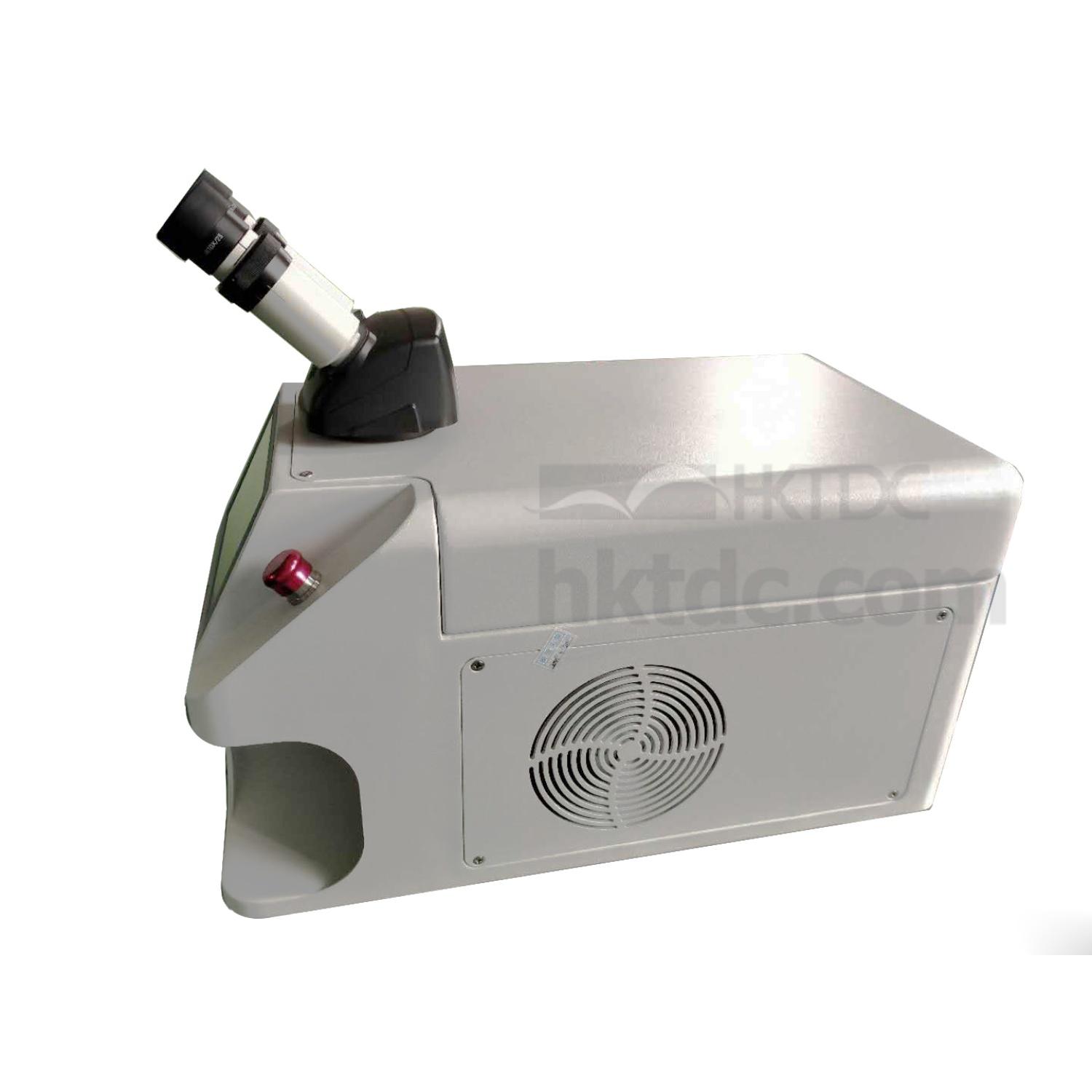

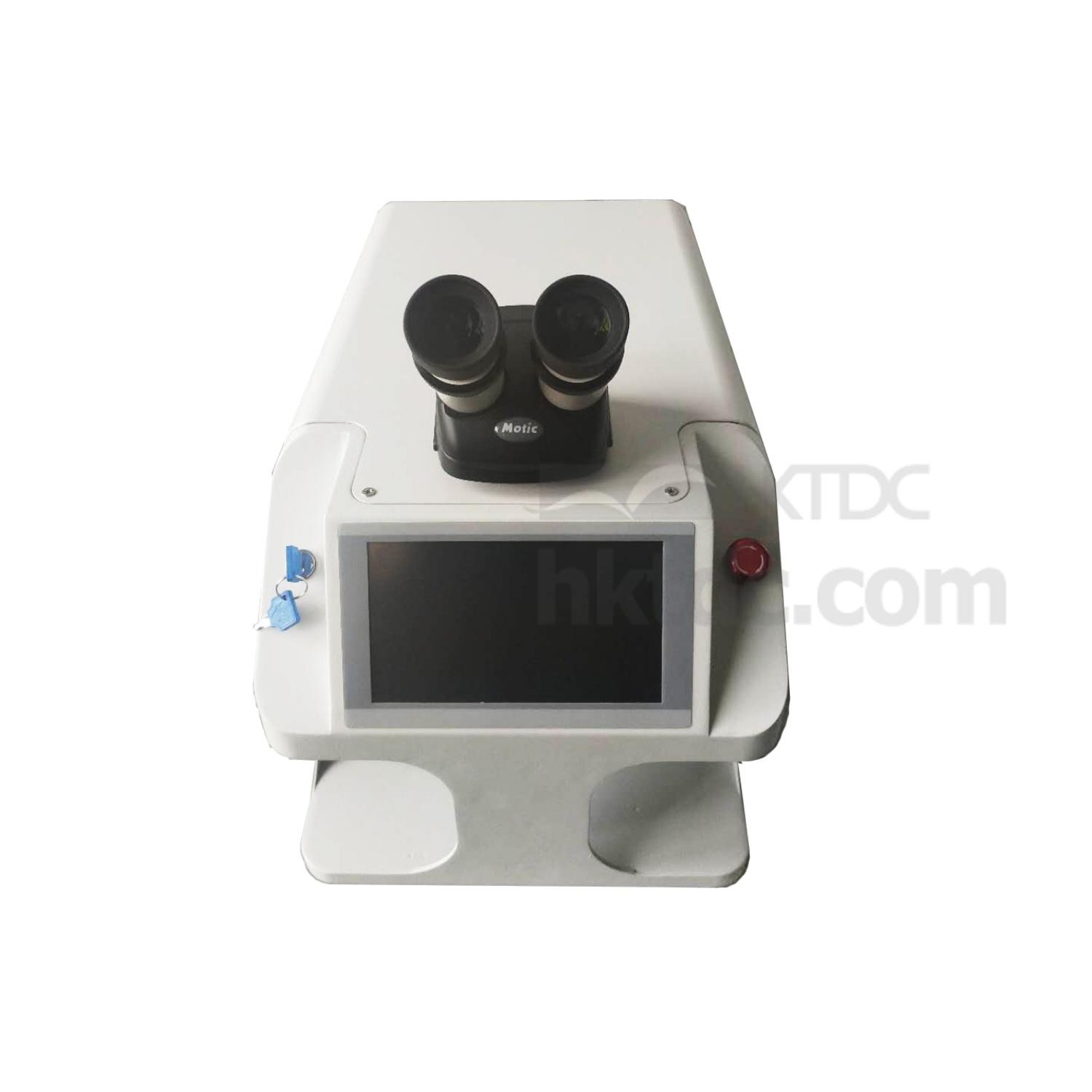

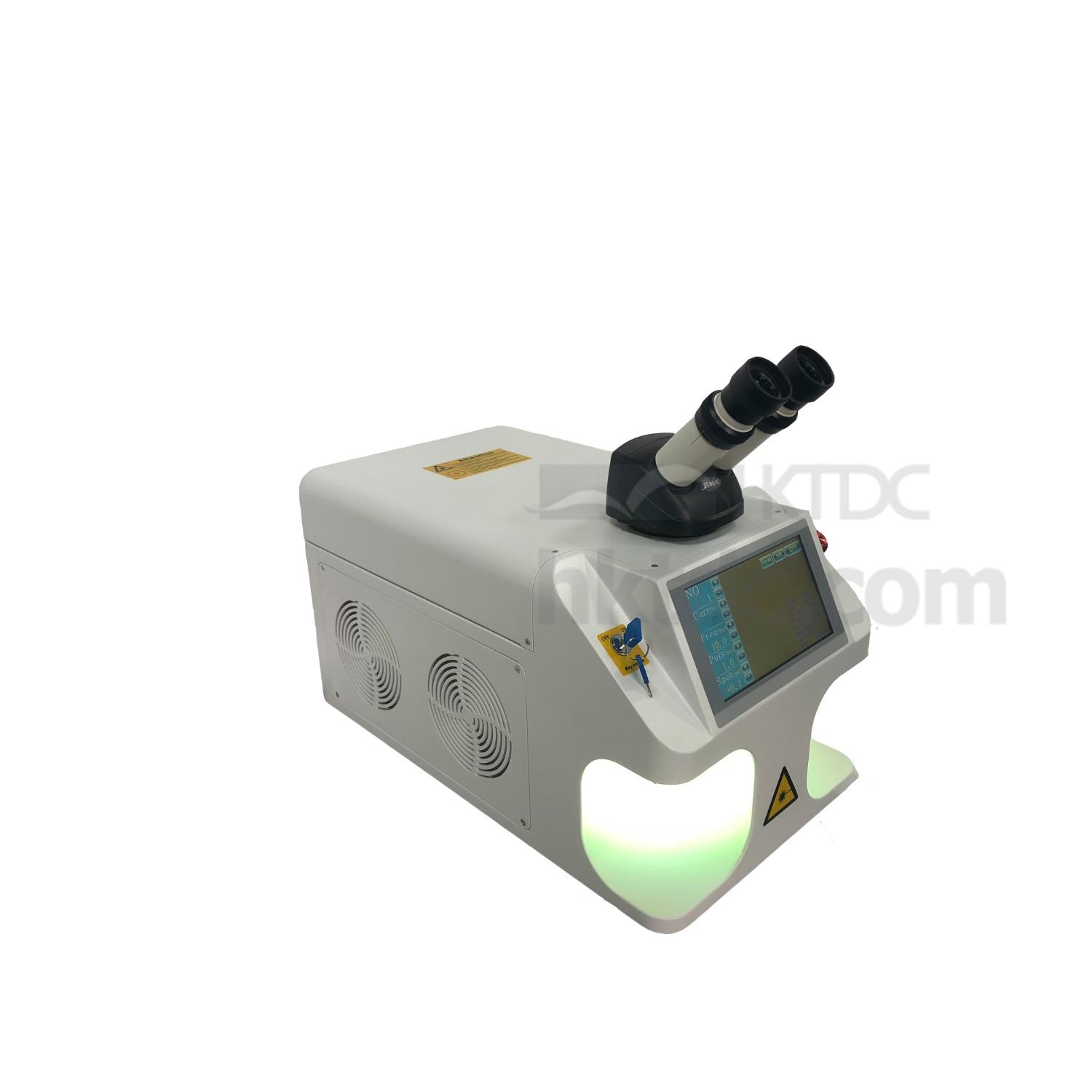

LB-TW60 Jewelry Laser Welder
  •  Application: Apply to welding gold and silver jewelry, laser spot welding processing for jewelry, stainless steel jewelry and other kinds of jewelry, and fine metal part by hand welding.
The features:
  • Touch screen integrated with CCD display, convenient to adjust spot size on screen, clear to see the welding spot location.
  • More stable Light path, locating pins fixed into both end of light path, no need to re-adjust the path even a new lamp for replacement.
  • Water tank, automatic water pumping by one key, it will be alarmed with low temperature or high temperature.
  • Fans, noise level within 40-50 Db(A), Intelligent control, high temperature with fast running, low temperature with slow running or stopping.
  • Input Voltage: AC220V±10% 50Hz
  • Laser Frequency: 1.0~10.0Hz Continuously Adjustable
  • Pulse Width: 0.1~10.0ms Grading Adjustable
  • Spot Diameter Adjusting Scope: ±3.0mm
  • Laser Output Power:≤60W
  • Aiming and Positioning: CCD and Microscope
  • Environmental Temperature: ≤45℃
  • Operating Mode:Touch Control
  • Laser Wavelength:1064nm
  • Display touch screen mounting dimensions:137*190(mm)
  • Machine Dimensions: L 510*W 295*H 395(mm)
