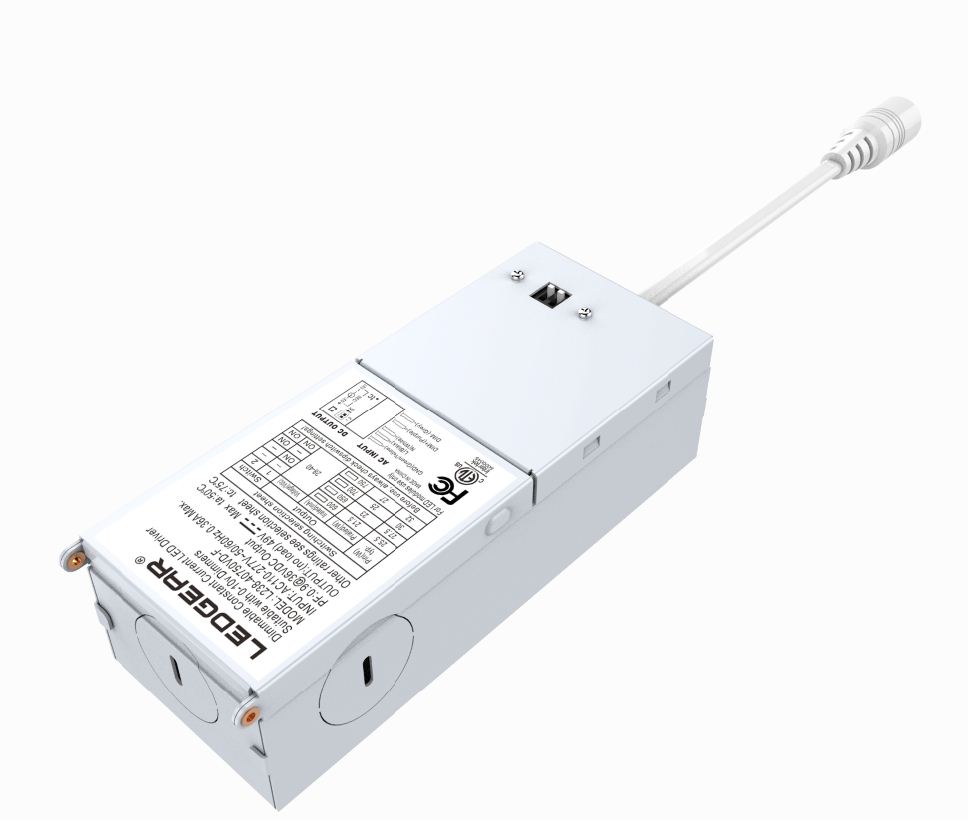

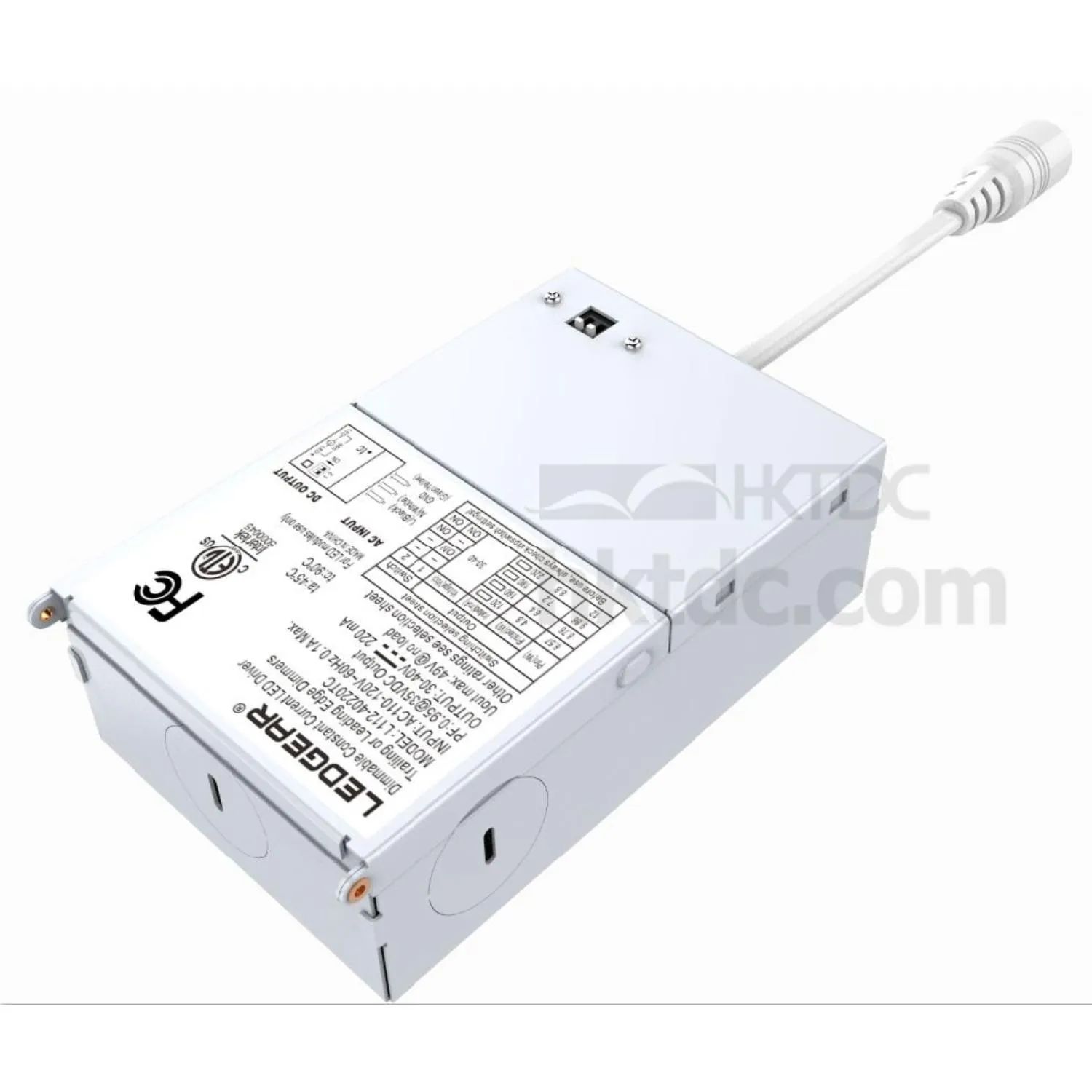

To power various indoor LED fixtures, the LEDGEAR® L1, L2 Junction Box Drivers have a silver finish with 1/2" NPT punched knockouts and features easy access cover panel. It is provided with leads and conduits opening for supply connection. Intended for contractor installations and is a NEMA 1 steel enclosure. There are Triac/ELV and 1-10V Dimmable option with constant current output from 3.6W to 40W.

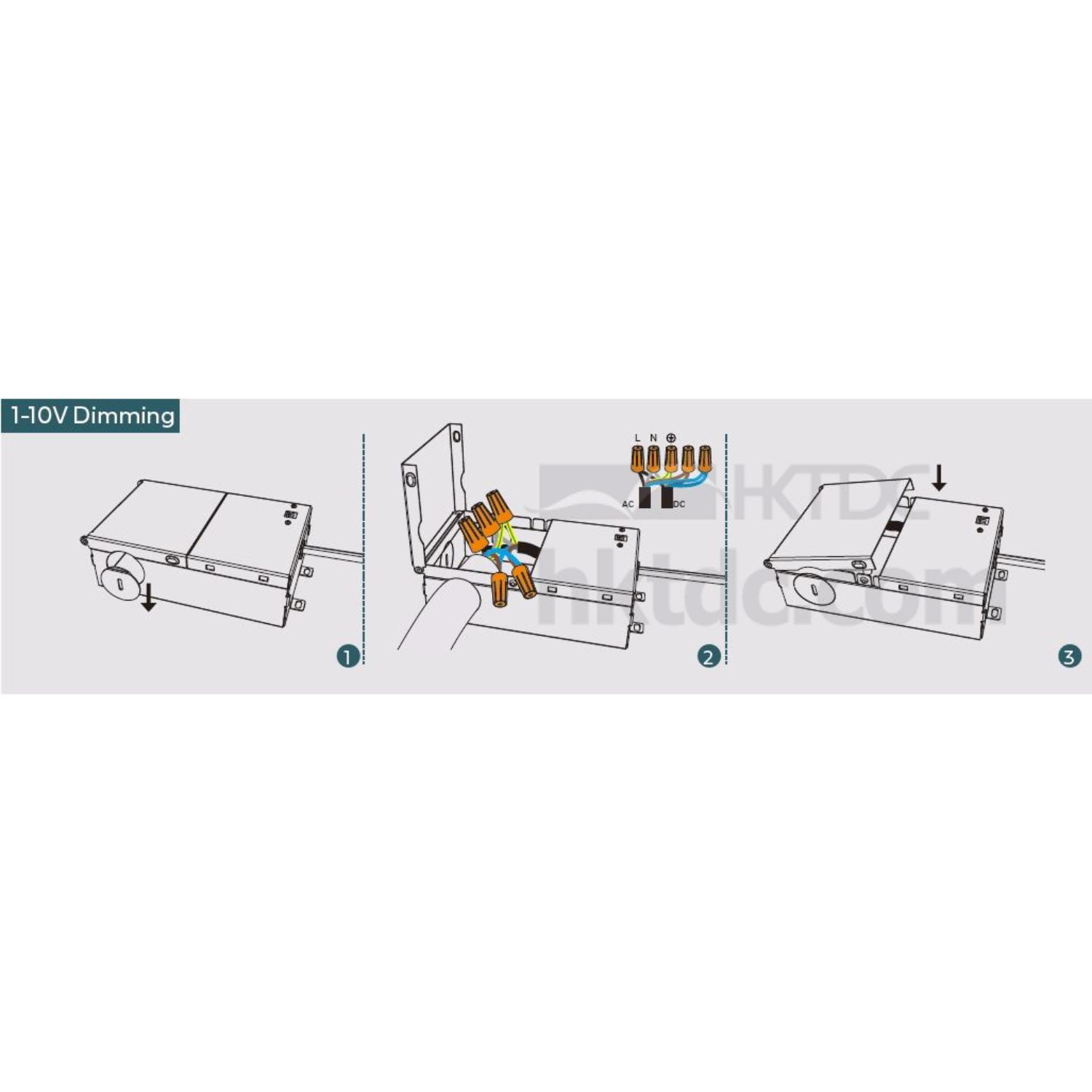

LEDGEAR L1 & L2 driver provided with wire nuts(push-in wire connectors on request) for fast and easy wiring. Five 7/8" knockouts for maximum flexibility in positioning and in-line installation. And the driver case features side tabs with mounting screw holes to allow mounting of driver in under cabinet applications. steel box with dedicated compartment for hardwiring (120V, 277V).

Application: US-standard LED panel light, troffer, downlight, and other indoor LED lighting applications

Specifications:

• Triac, ELV(110-120V input), 5 Modules covers 20 different current(120-1000mA) output @30-40V
• 1-10V(110-277V input), 5 Modules covers 20 different current(120-1000mA) output @28-40V
