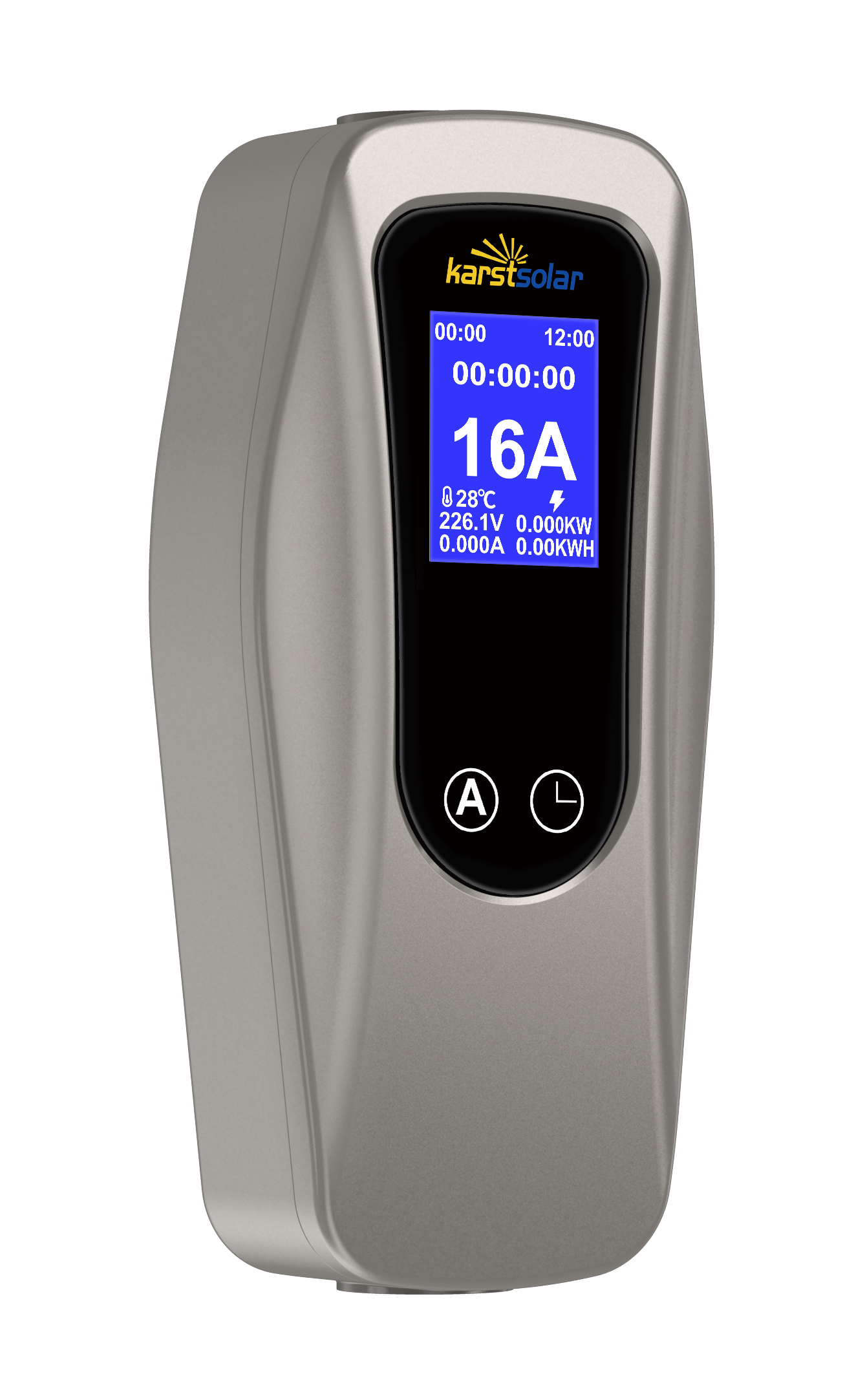

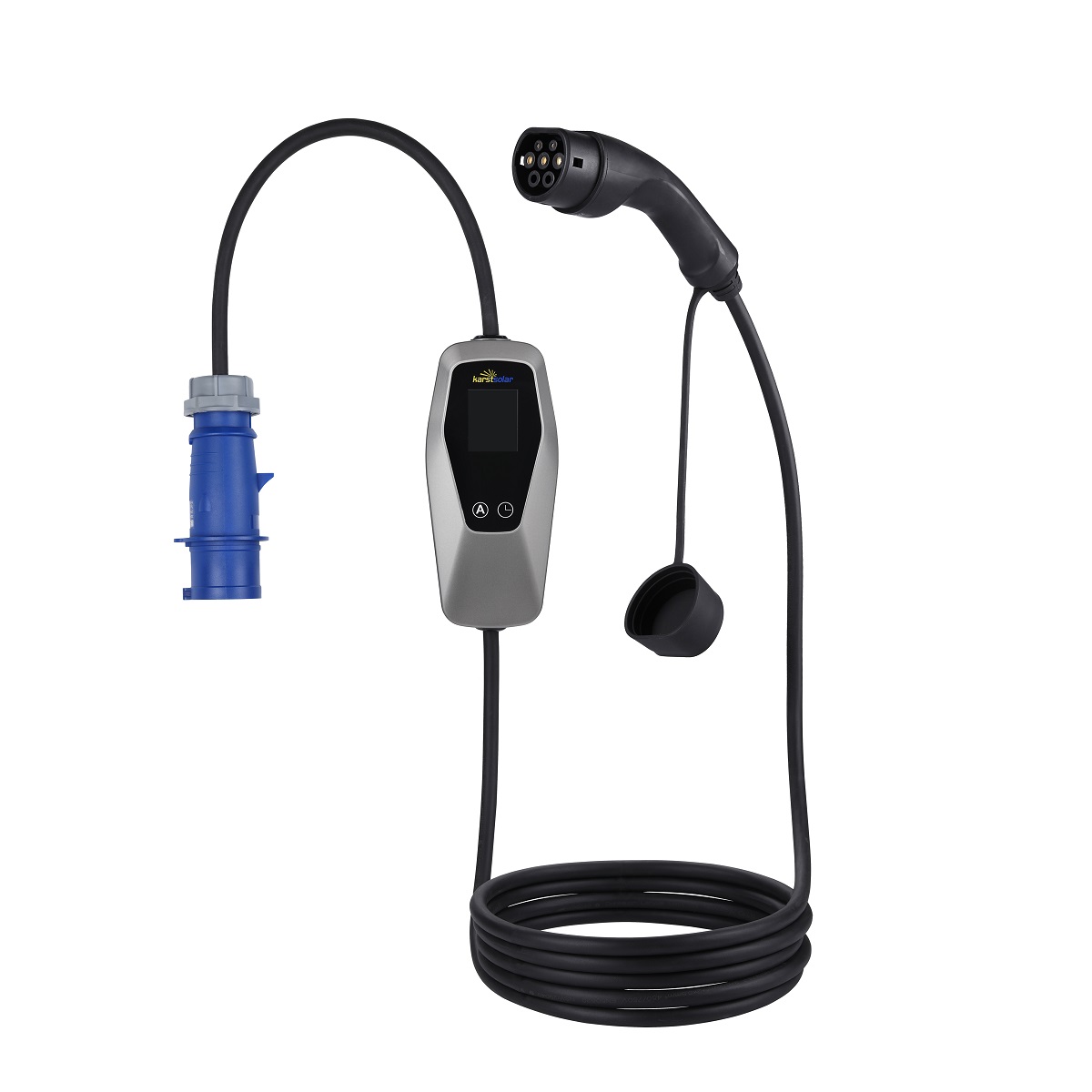

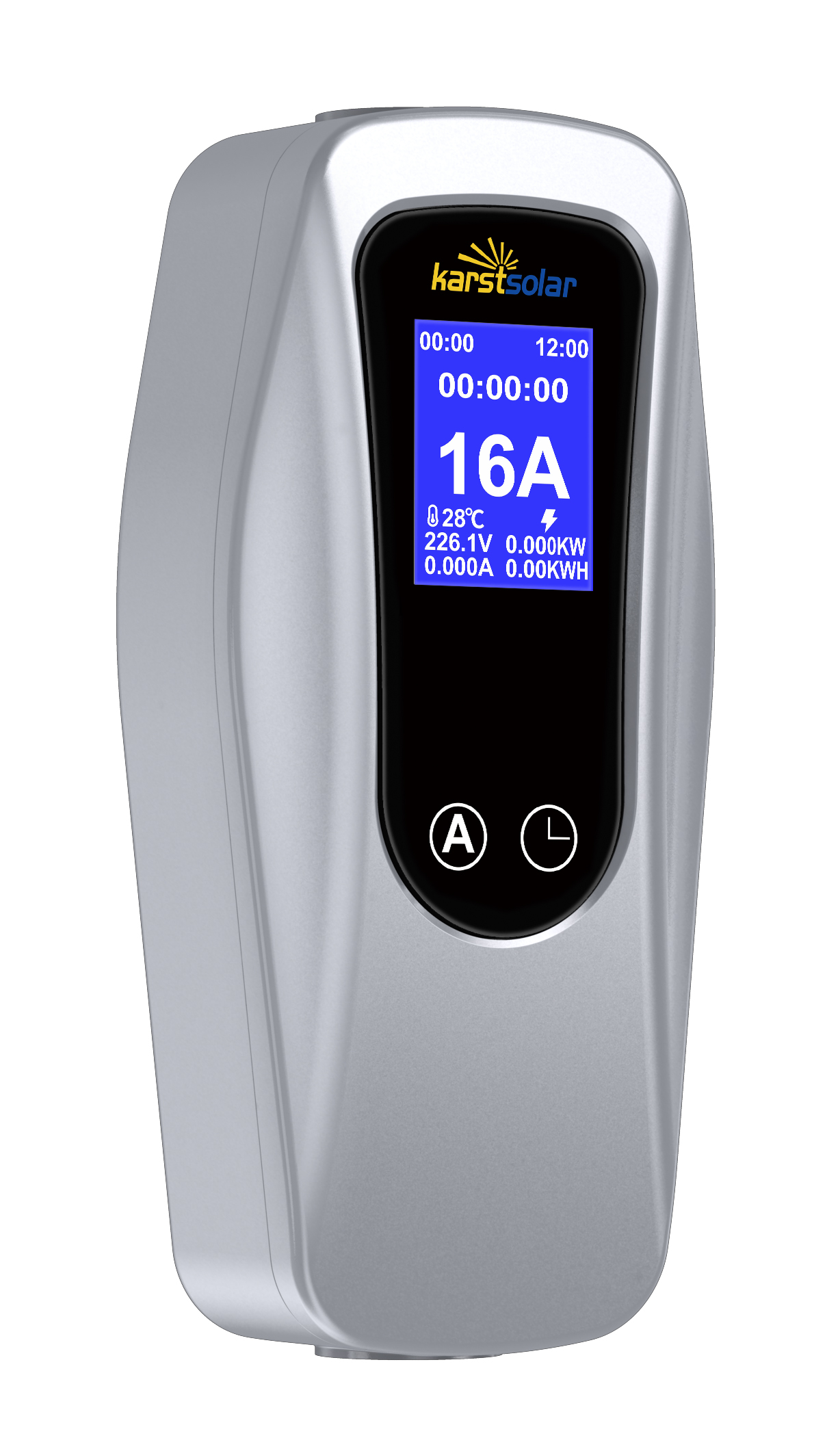

Karstsolar Portable 7KW EV Charger for New energy electric vehicles
Quantity
Production Lead Time:
15-30 day(s)
Shipping Method:
FOB China
Brand:
Karstsolar
Wifi:
No
3G/4G/Ethernet:
No
Energy Meter:
Yes
Emergency Stop:
No
Minimum Order Quantity:
300 sets
Description
Contact Supplier
Description
Portable 7KW EV Charger for Home New energy electric vehicles
| Datasheet | EU Standard | US Standard | ||
| Model | KSEVC-PE-7KW | KSEVC-PU-7.6KW | KSEVC-PU-9.6KW | |
| Rated Power | Rated Power | 7KW | 7.68KW | 9.6KW |
| Input | Power Supply | L+N+PE | L+N+PE(L1+L2+PE) | L+N+PE(L1+L2+PE) |
| Rated Voltage | 230V AC | 110V/240V AC | 110V/240V AC | |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Output | Output Voltage | 230V AC | 240V AC | 240V AC |
| Maximum Current | 32A | 32A | 40A | |
| Maximum Power | 7KW | 7.68KW | 9.6KW | |
| Charge Connector | Type 2 socket | Type 1 | Type 1 | |
| User Interface | Enclosure | plastic | plastic | plastic |
| Front Panel | plastic | plastic | plastic | |
| LCD Display | 2.4inch | 2.4inch | 2.4inch | |
| RFID Reader | NFC | NFC | NFC | |
| Communication | Start Mode | Plug | Plug | Plug |
| Emergency Stop | × | × | × | |
| Energy Meter | √ | √ | √ | |
| Communication （optional） | Wifi | √ | √ | √ |
| TUYA | √ | √ | √ | |
| Ethernet | × | × | × | |
| 3G/4G | × | × | × | |
| OCPP 1.6 json | × | × | × | |
| Safety | RCD | 30mA Type A + 6mA DC | AC20mA | AC20mA |
| Ingress Protection | IP55 | IP55 | IP55 | |
| Impact Protection | IK08 | IK08 | IK08 | |
| Protection | Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over temperature protection,Cp protection | Over current/Residual current/ Short circuit/Ground /Surge/Over/Under voltage/Over temperature /Cp .protection | Over current/Residual current/ Short circuit/Ground /Surge/Over/Under voltage/Over temperature /Cp .protection | |
| Certification | CE | UL | UL | |
| Certification Standard | IEC 62196 Type2 | SAE J1772 | SAE J1772 | |
| Environment | Warranty | 2 years | 2 years | 2 years |
| Installation | Wall-mount/Pole-mount | Wall-mount/Pole-mount | Wall-mount/Pole-mount | |
| Work Temperature | -30℃~+50℃ | ﹣30℃~﹢55℃ | ﹣30℃~﹢55℃ | |
| Work Humidity | 5%~95% | 5%~95% | 5%~95% | |
| Work Altitude | <2000m | <2000m | <2000m | |
| Package | Product Dimension | 240*110*80mm (H*W*D) | 240*110*80mm (H*W*D) | 240*110*80mm (H*W*D) |
| Package Dimension | 400*300*140mm (H*W*D) | 400*300*140mm (H*W*D) | 400*300*140mm (H*W*D) | |
| Net Weight | 3.5kg | 3.5kg | 3.5kg | |
| Gross Weight | 4kg | 4kg | 4kg | |
| External Package | Carton | Carton | Carton | |
