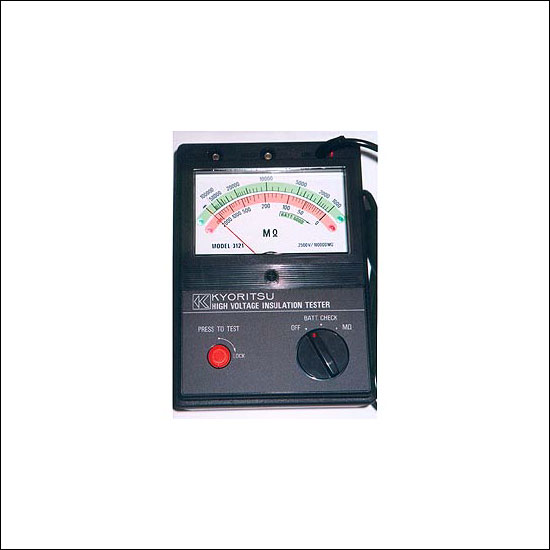

Kew High Voltage Insulation Tester
Model No.:
3121
Description
Contact Supplier
Description
- DC test voltage: 2500V
- Measuring ranges: 2G ohms / 100G ohms (autoranging)
- Primary effective measuring ranges accuracy 0.1-50G ohms +/
- 5% rdg
- Other ranges accuracy: +/
- 10% rdg or 0.5% of scale length
- Withstand voltage: 5000V AC for 1 minute
- Power source: R6P(AA)(1.5V) x 8
- Dimensions: 200(L) x 140(W) x 80(D) mm
- Weight: 1 kg approx.
- Accessories: 7058(test lead) 9039(hard carrying case) R6P(AA) x 8
- Instruction manual
