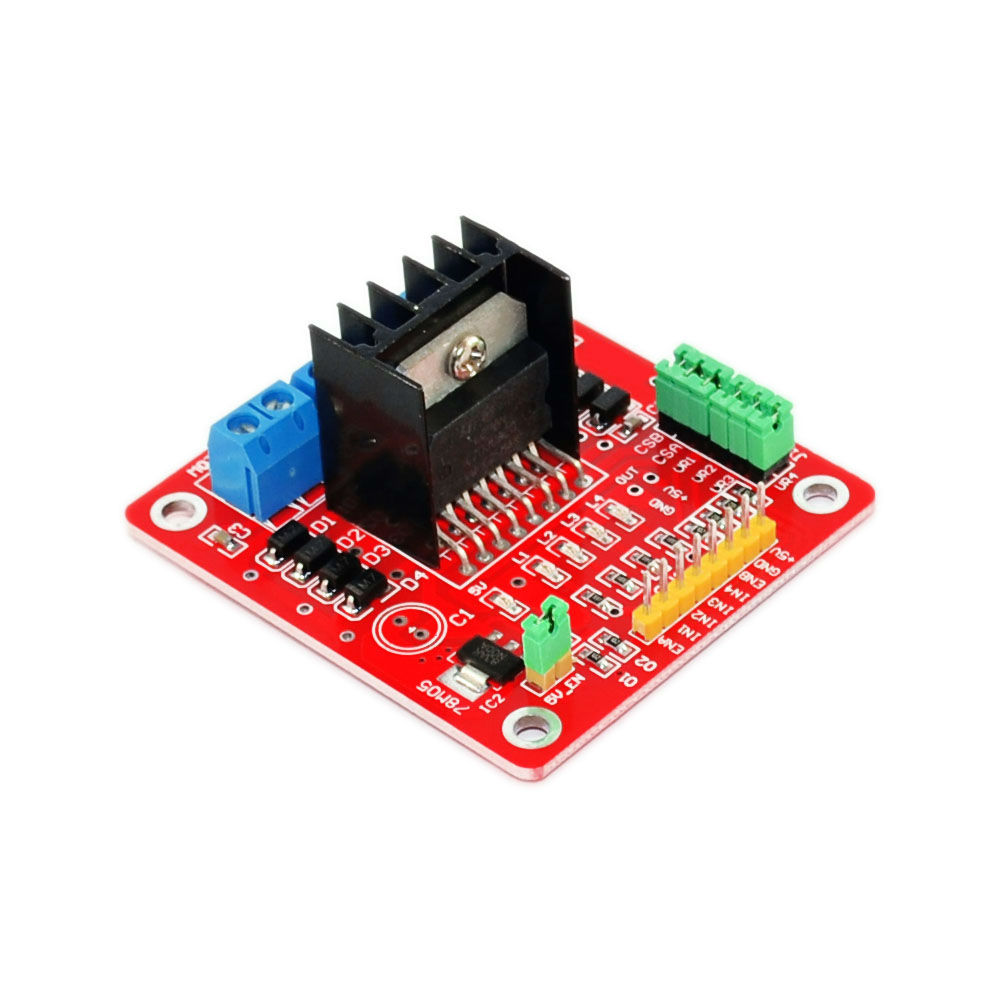

1. Driver chip: L298N dual H-bridge driver chip
2. Drive section terminal supply area VMS: +5 V ~+35 V
3. Drive section peak current Io: 2A / Bridge
4. Logical part of the terminal supply area VSS: 4.5-5.5V
5. Logical part of the operating current range: 0 ~ 36mA
6. Control signal input voltage range: 4.5-5.5V High Low 0V
7. Maximum power consumption: 20W
8. Storage temperature: -25 ~ +130
9. Driver Board Size: 55mm x 60mm x 30mm
10. Other features: control direction indicator, power indicator, within current detection logic portion of the plate to take power interfaces
