L45 Daisy Linear Light Series
Share this page
US $20.00 - US $50.00
Production Lead Time:
30 day(s)
Shipping Method:
by sea
Model No.:
DWLP4282
Input Voltage:
AC200-240V, 50/60HZ
Power:
28W
LED Source:
SMD2835
Color Temp:
3000K/4000K/6500K
CRI:
Ra>80
Power Factor:
>0.9
IP Rate:
IP20
Optional:
On/Off , or Dali dimming
MOQ:
300PCS
Certificate:
CE,RoHS,CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
Description
Contact Supplier
Description

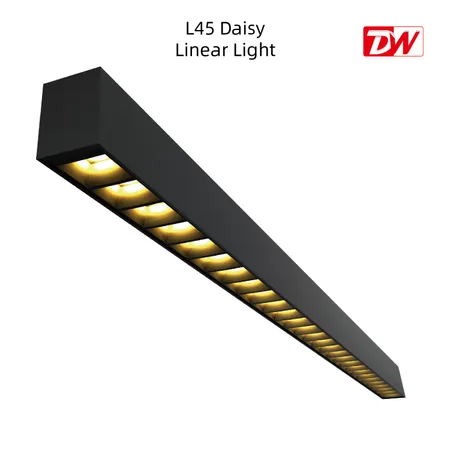

L45 Daisy Linear Light Series (white and black color)

Thanks for choosing LEDiL Daisy LED linear light. This light combines innovative optical and mechanical design features to achieve a soft and uniform light distribution. Our LEDiL Daisy reflector led liner light  has a dedicated driver and elegant appearance to make a space refined and smart, perfectly adapted to fashion or design needs. White and Black color are available.

◈  FEATURES

    Fashionable LEDiL daisy linear LENS used,

    Down lighting up to 130-145lm/W, UGR<19;

    CCT color selected by dip switch;

    Plug and play uplight LED module,

   Samsung ;EDs

    Beam angle, 50°, 80°,

    Screw free end cap;

    Built-in driver Option,On/off, Dimming 1-lOV,DALI dimming, CCT tunable driver;

    Continuous line by joint connections

    Can use Emergency driver

◈  SIZE

L45 Daisy Linear Light





Model No.LightingSizeEfficiencyWattageLuminousCCTDiffuser+Housing colorBeam Angle
DWLP4281Down45x72x1146mm145lm/W28W4000lm3000K&4000K&6500K white+white80°
DWLP5331Down45x72x1403mm145lm/W33W4700lmwhite+white80°
DWLP4282Down45x72x1146mm130lm/W28W3600lmblack+black80°
DWLP5332Down45x72x1403mm130lm/W33W4300lmblack+black80°
DWLP4401UUp/Down45x72x1146mm130lm/W40W5200lmwhite+white80°
DWLP5451UUp/Down45x72x1403mm130lm/W45W5800lmwhite+white80°
DWLP4402UUp/Down45x72x1146mm120lm/W40W4800lmblack+black80°
DWLP5452UUp/Down45x72x1403mm120lm/W45W5400lmblack+black80°









L45 Daisy Linear CCT  color Selected by DIP Switch




Model No.LightingSizeEfficiencyWattageLuminousCCTDiffuser+Housing colorBeam Angle
DWLP4261TDown45x72x1146mm150lm/W26W3900lm3000K&4000K&6500K Selectedwhite+white80°
DWLP5281TDown45x72x1403mm150lm/W28W4200lmwhite+white80°
DWLP4262TDown45x72x1146mm130lm/W26W3300lmblack+black80°
DWLP5332TDown45x72x1403mm140lm/W33W4600lmblack+black80°
DWLP4401UTUp/Down45x72x1146mm140lm/W40W5600lmwhite+white80°
DWLP5451UTUp/Down45x72x1403mm140lm/W45W6300lmwhite+white80°
DWLP4402UTUp/Down45x72x1146mm130lm/W40W5200lmblack+black80°
DWLP5452UTUp/Down45x72x1403mm130lm/W45W5800lmblack+black80°









Notd:Up/down lighting,up is 30%down 70%.





◈  APPLICATION

♦ Showrooms

♦ Boardrooms, offices, corridors

♦ Retail outlets

♦ Hospitals

♦ Hotels, motels
