L50 Recessed Opal Linear Light Series
Share this page
US $20.00 - US $50.00
Production Lead Time:
30 day(s)
Shipping Method:
by sea
Model No.:
DWLF4281/2R
Input Voltage:
AC200-240V, 50/60HZ
Power:
28W
LED Source:
SMD2835
Color Temp:
3000K/4000K/6500K
CRI:
Ra>80
Power Factor:
>0.9
IP Rate:
IP20
Optional:
On/Off, or Dali dimming
MOQ:
300PCS
Certificate:
CE,RoHS,CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
Description
Contact Supplier
Description

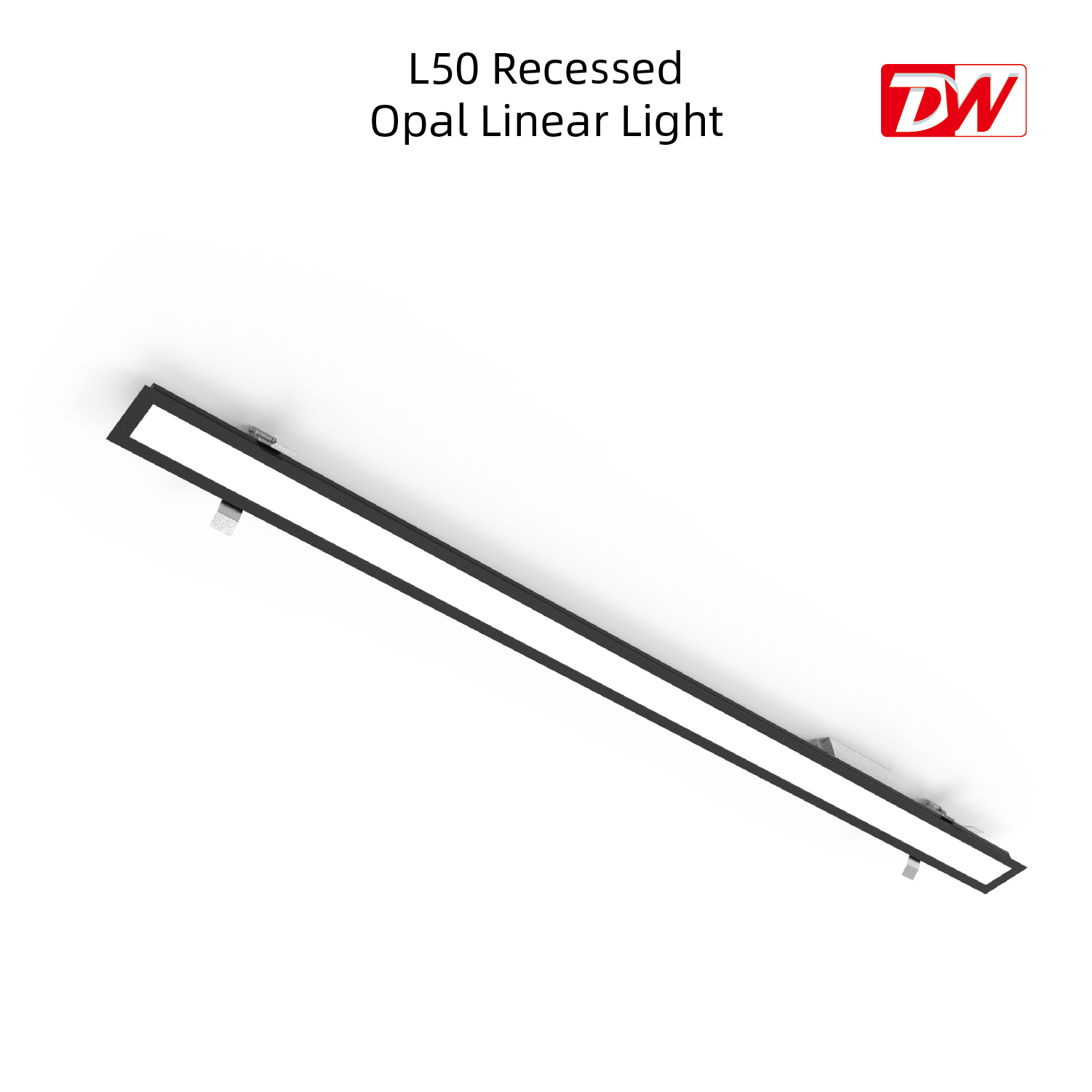

L50 Recessed Opal Linear Light Series

Thanks for choosing Dolight L50 Opal Linear lightThis Linear light combines innovative optical and mechanical design features to achieve lower glare and efficiency as high as 100lm/WIn order to offer universal applicationuser CCT selected by a DIP switch and Up/Down light version.

◈  FEATURES

    PC diffuser or prismatic diffuser, Uniform light output,

    Efficiency: 100lm/W;

    CCT color selected by DIP Switch,

.Samsung LEDs;

    Built -in driver or External driver optional,

    SKD components are available;

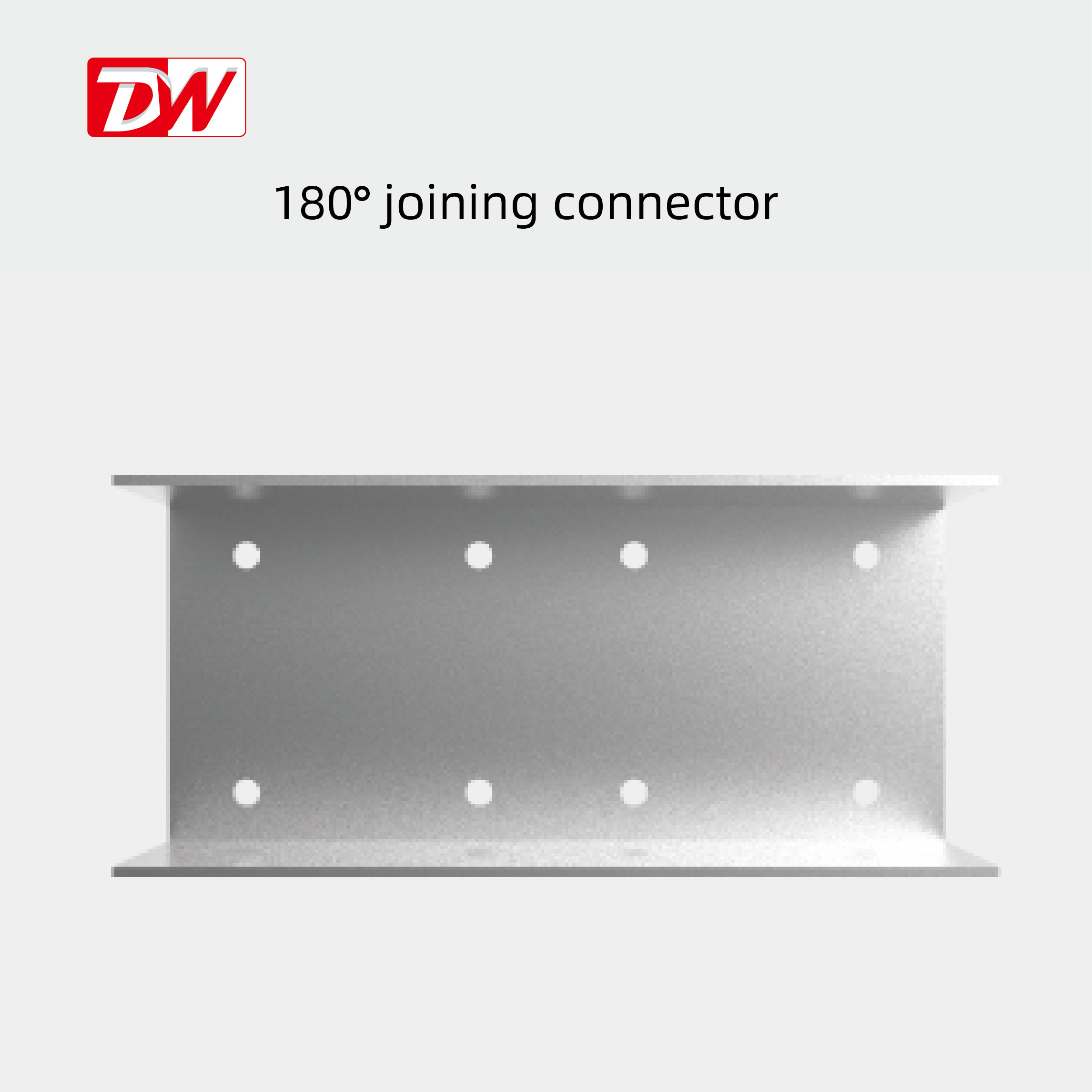

    Continuous line by joint connections,

    Easy and quick for installation;

◈  SIZE

Model No.LightingSizeEfficiencyWattageLuminousCCTDiffuser+Housing colorBeam AngleUGR
DWLF4281/2RDown50x72x1130mm100lm/w28W2800lm3000K&4000K&6500K White profile  pc diffuser110°
DWLF5341/2RDown50x72x1410mm100lm/w34W3400lmBlack profile  pc diffuser110°
DWLG4281/2RDown50x72x1130mm100lm/w28W2800lmWhite prismatic diffuser110°up down UGR <19
DWLG5341/2RDown50x72x1410mm100lm/w34W3400lmBlack prismatic diffuser110°up down UGR <19
Notd:CCT color selected by DIP Switch is available.






◈  APPLICATION

♦ Showrooms

♦ Boardrooms, offices, corridors

♦ Retail outlets

♦ Hospitals

♦ Hotels, motels
