L50 Reflector Linear Light Series

US $20.00 - US $50.00

Production Lead Time:

30 day(s)

Shipping Method:

by sea

Model No:

DWLR4231

Input Voltage:

AC200-240V, 50/60HZ

Power:

23W

LED Source:

SMD2835

Color Temp:

3000K/4000K/6500K

CRI:

Ra>80

Power Factor:

>0.9

IP Rate:

IP20

Optional:

On/Off, or Dali dimming

MOQ:

300PCS

Certificate:

CE,RoHS,CB,SAA

Warranty Time:

5 Years

Payment Terms:

T/T

Supply Ability:

7000pcs per month

Description

Contact Supplier

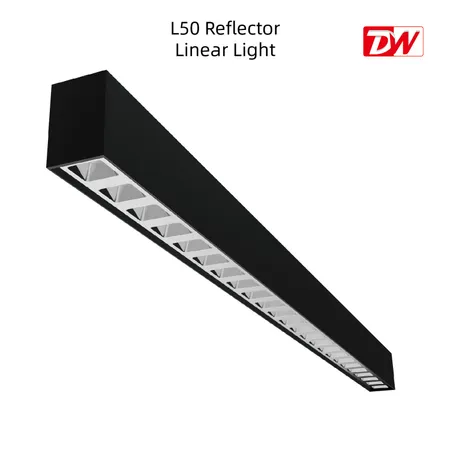

L50 Reflector Linear Light Series

◈ FEATURES

• Classic flavor grille design,

• High efficiency up to 120-130lm/W, UGR<19,

• CCT color selected by dip switch;

• Plug and play uplight LED module,

• Samsung LEDs;

• Screw free end cap,

• Built-in driver Option, On/off, Dimming 1-lOV, DALI dimming, CCT tunable driver,

• Continuous line by joint connections,

• Competitive price,

• Can use Emergency driver,

◈ SIZE

L50Reflector Linear Light
Model No.	Lighting	Size	Efficiency	Wattage	Luminous	CCT	Diffuser+Housing color	Beam Angle
DWLR4231	Down	50x72x1130mm	130lm/w	23W	3000lm	3000K&4000K&6500K	white+white	80°
DWLR5281	Down	50x72x1410mm	130lm/w	28W	3600lm		white+white	80°
DWLR4301U	Up/Down	50x72x1130mm	120lm/w	30W	3600lm		white+white	down80° up110°
DWLR5361U	Up/Down	50x72x1410mm	120lm/w	36W	4300lm		white+white	down80° up110°
DWLR4303U	Up/Down	50x72x1130mm	130lm/w	30W	3900lm		Silver+black	down70° up110°
DWLR5363U	Up/Down	50x72x1410mm	130lm/w	36W	4600lm		Silver+black	down70° up110°

L50Reflector Linear Light CCT color Selected by DIP Switch
Model No.	Lighting	Size	Efficiency	Wattage	Luminous	CCT	Diffuser+Housing color	Beam Angle
DWLR4231T	Down	50x72x1130mm	130lm/w	23W	3000lm	3000K&4000K&6500K Selected	white+white	80°
DWLR5281T	Down	50x72x1410mm	130lm/w	28W	3600lm		white+white	80°
DWLR4301UT	Up/Down	50x72x1130mm	120lm/w	30W	3600lm		white+white	down80° up110°
DWLR5361UT	Up/Down	50x72x1410mm	120lm/w	36W	4300lm		white+white	down80° up110°
DWLR4303UT	Up/Down	50x72x1130mm	130lm/w	30W	3900lm		Silver+black	down70° up110°
DWLR5363UT	Up/Down	50x72x1410mm	130lm/w	36W	4600lm		Silver+black	down70° up110°
Notd:Up/down lighting,up is 25%down 75%.
