LCD Panel FTF CTP 1024*768 Wide Viewing Angle 9.7 inch LVDS Custom Display Module

US $5.00 - US $15.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech-lcd

Model No.:

MTZ097GFF02A01-V1

Customised:

Yes

Size:

9.7

Description

Contact Supplier

LCD Panel FTF CTP 1024*768 Wide Viewing Angle 9.7 inch LVDS Custom Display Module

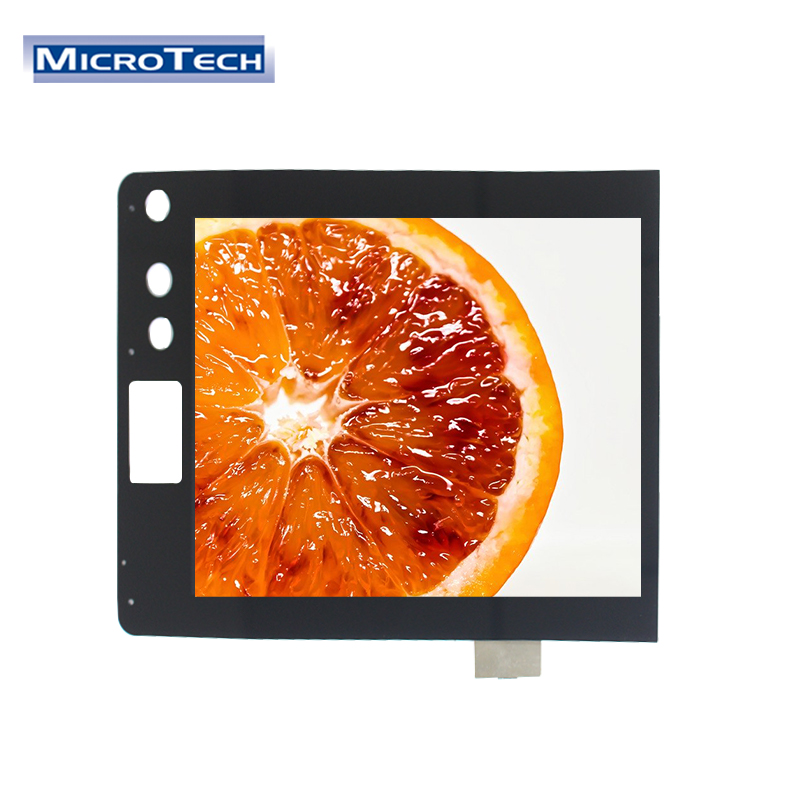

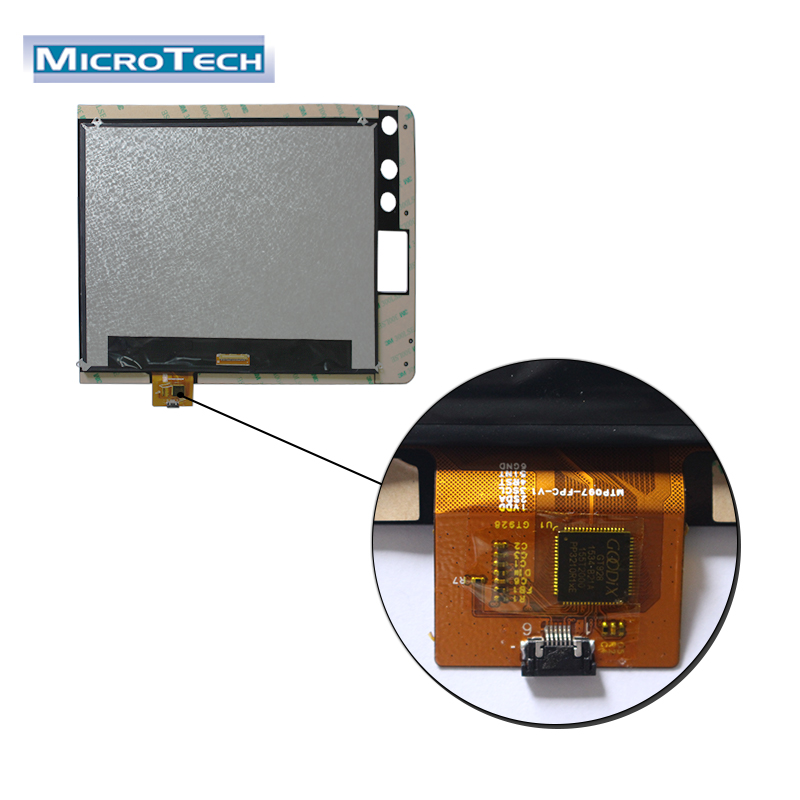

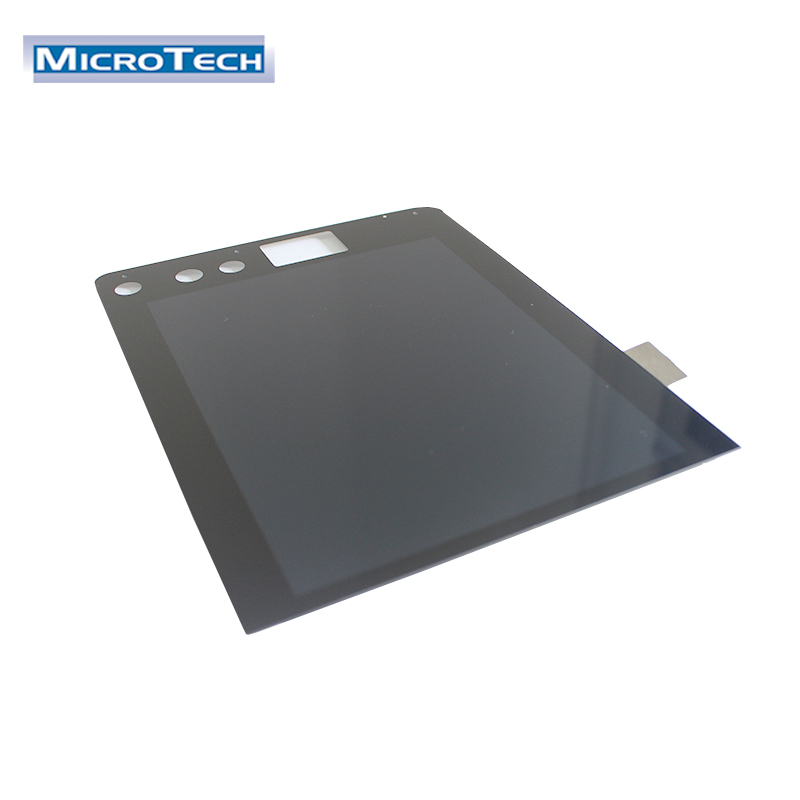

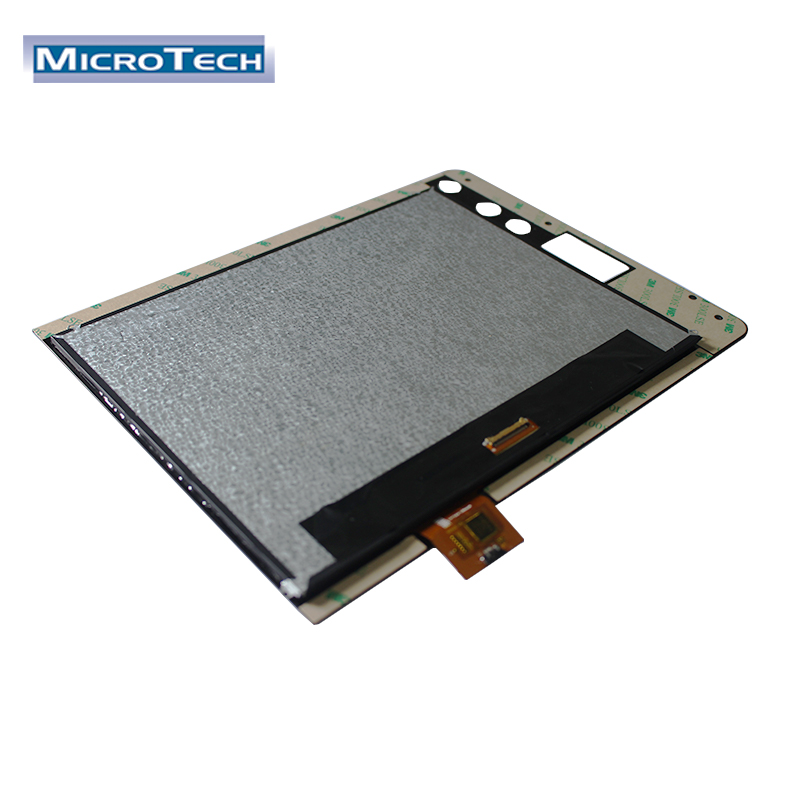

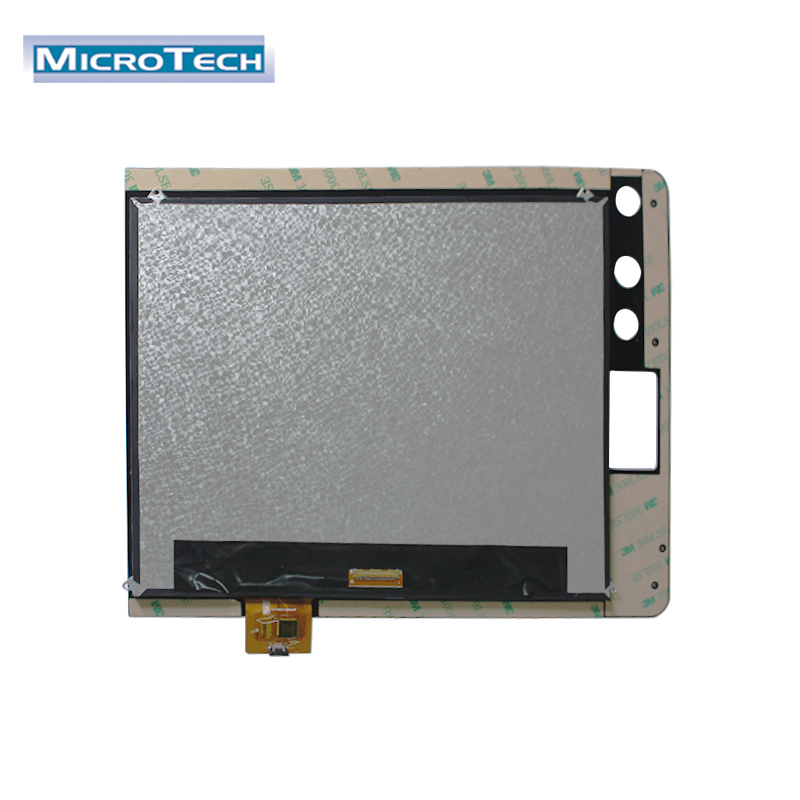

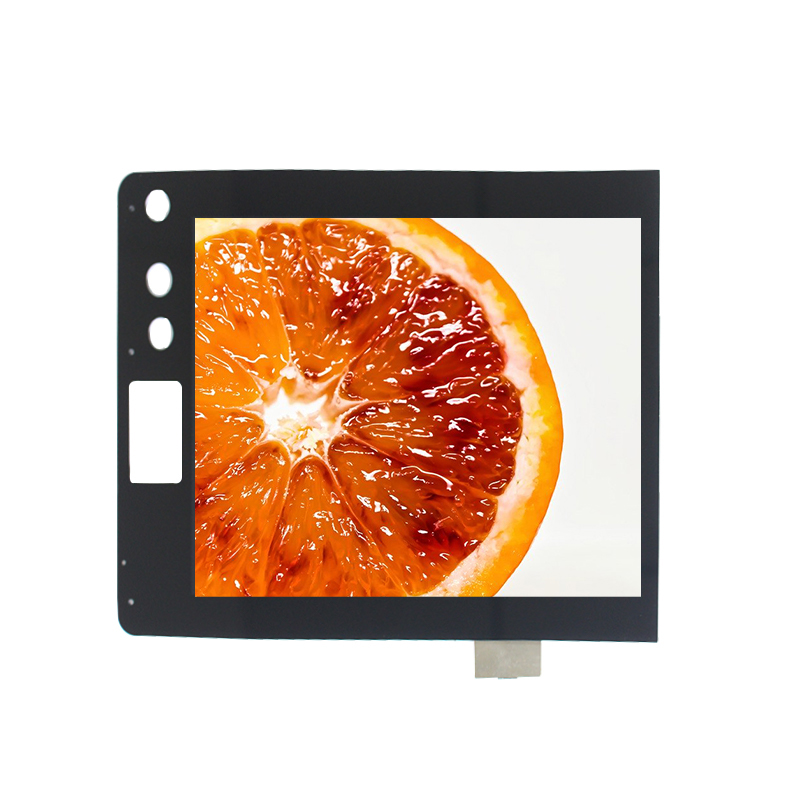

MICROTECH Display model MTZ097GFF02A01-V1 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs and a backlight unit. The following table describes the features of this LCM.

Item	Specification	Unit
Panel Size	9.7	inch
Number of Pixels	1024 * 3(RGB) *768	pixels
Active Area	196.61(H) 147.46(V)*	mm
Pixel Pitch	0.192(H) *O.192(V)	mm
Outline Dimension	209.51(H) 163.55(V) 2.6 (Typ.)(D)	mm
Pixel arrangement	RGB - stripe	-
Display Mode	IPS, Normally Black	-
Viewing Direction	All	-
Display Color	16.7M	-
Surface Treatment	Anti-Glare and Hard-coating 3H	-
Interface	LVDS	-
Backlight	White LED	-
Drive IC	-	-
Operation Temperature	-20〜50	℃
Storage Temperature	-30〜 60	℃
Weight	210 (Typ.)	g
