LED AC to DC Switch Driver
Weight:
1250 gram
Model No.:
LF1240
Brand:
HS
Size:
236(L), 74(W), 40(H)mm
Port:
Keelung, Taiwan
Type of Payment:
T/T in advance
Minimum Order Quantity:
1 up
Input Signal:
AC
Output Signal:
DC
Body Colour:
Gray
Material:
Aluminum
Certification:
CE, EMC, FCC, LVD, PSE, RoHS, UL, ENEC
Warranty:
5 year
Description
Contact Supplier
Description

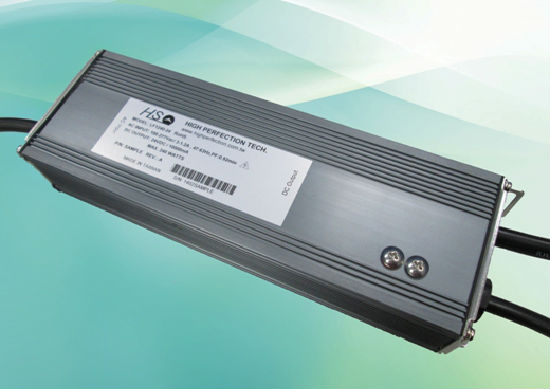

Convection cooled in Aluminum housing. This is an LED driver designed in a compact size. It is suitable for street lighting. general LED lighting.
AC input range: 100~277Vac.
Power Factor (PF): >0.92.
*Surge Immunity: 6KV(L-N), 12KV(LN-PE)
Max. power: 240W.
*With a dimming function: by 0~10V DC or VR or PWM (3-in-1 dimming controller)
*Low In-rush Current : < 5A /115Vac,< 10A / 230Vac
DC output Voltage(CV): 22~56Vdc
DC output current: 550-6,670mA.
DC output Vf: 20-220Vdc.
Warranty: five years (life @ TC: 80℃ 40,000 hours).
Certification: UL, CE, CB, FCC B, PSE.
Waterproof rate: IP67.
Weight: 1,250g.
AC input range: 100~277Vac.
Power Factor (PF): >0.92.
*Surge Immunity: 6KV(L-N), 12KV(LN-PE)
Max. power: 240W.
*With a dimming function: by 0~10V DC or VR or PWM (3-in-1 dimming controller)
*Low In-rush Current : < 5A /115Vac,< 10A / 230Vac
DC output Voltage(CV): 22~56Vdc
DC output current: 550-6,670mA.
DC output Vf: 20-220Vdc.
Warranty: five years (life @ TC: 80℃ 40,000 hours).
Certification: UL, CE, CB, FCC B, PSE.
Waterproof rate: IP67.
Weight: 1,250g.
