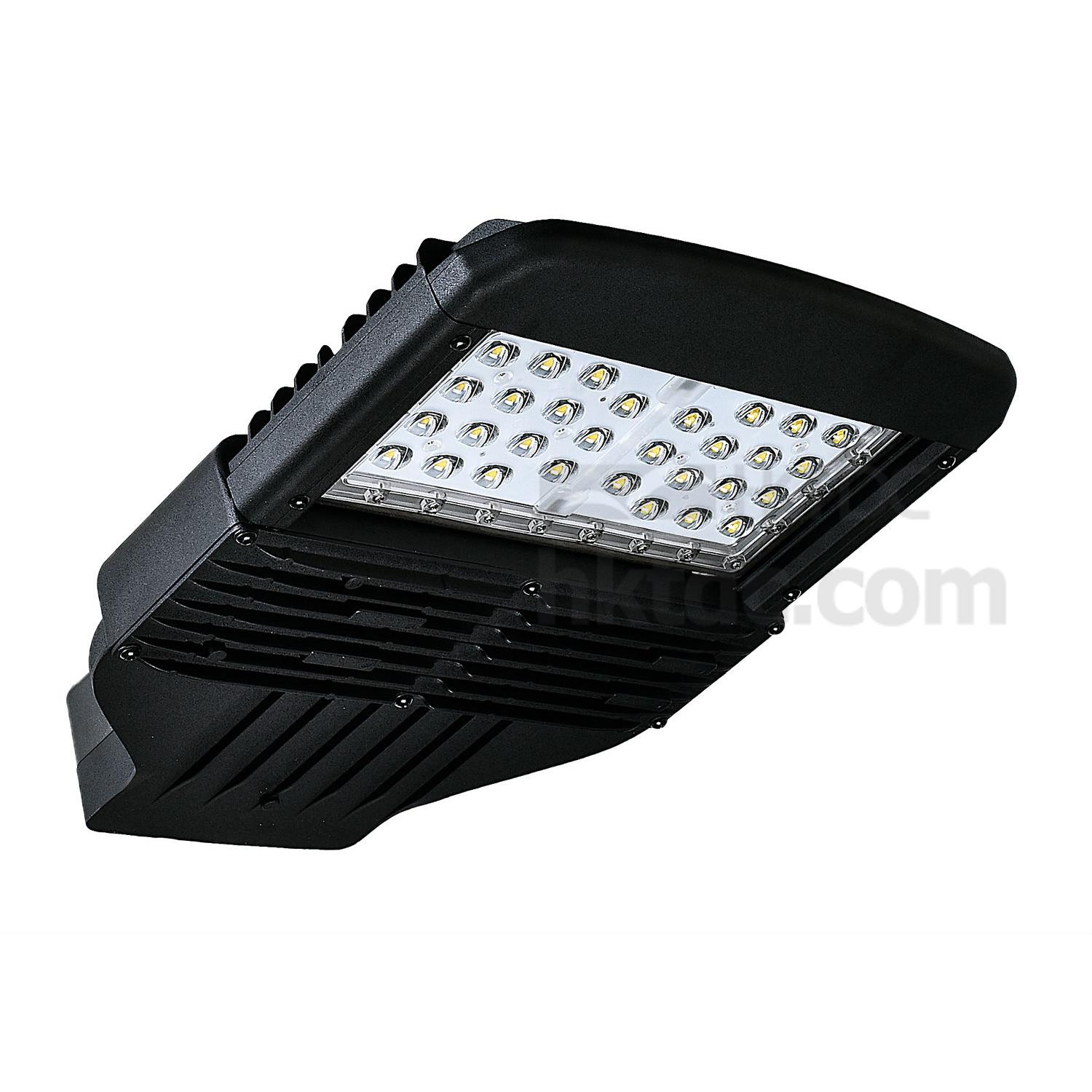

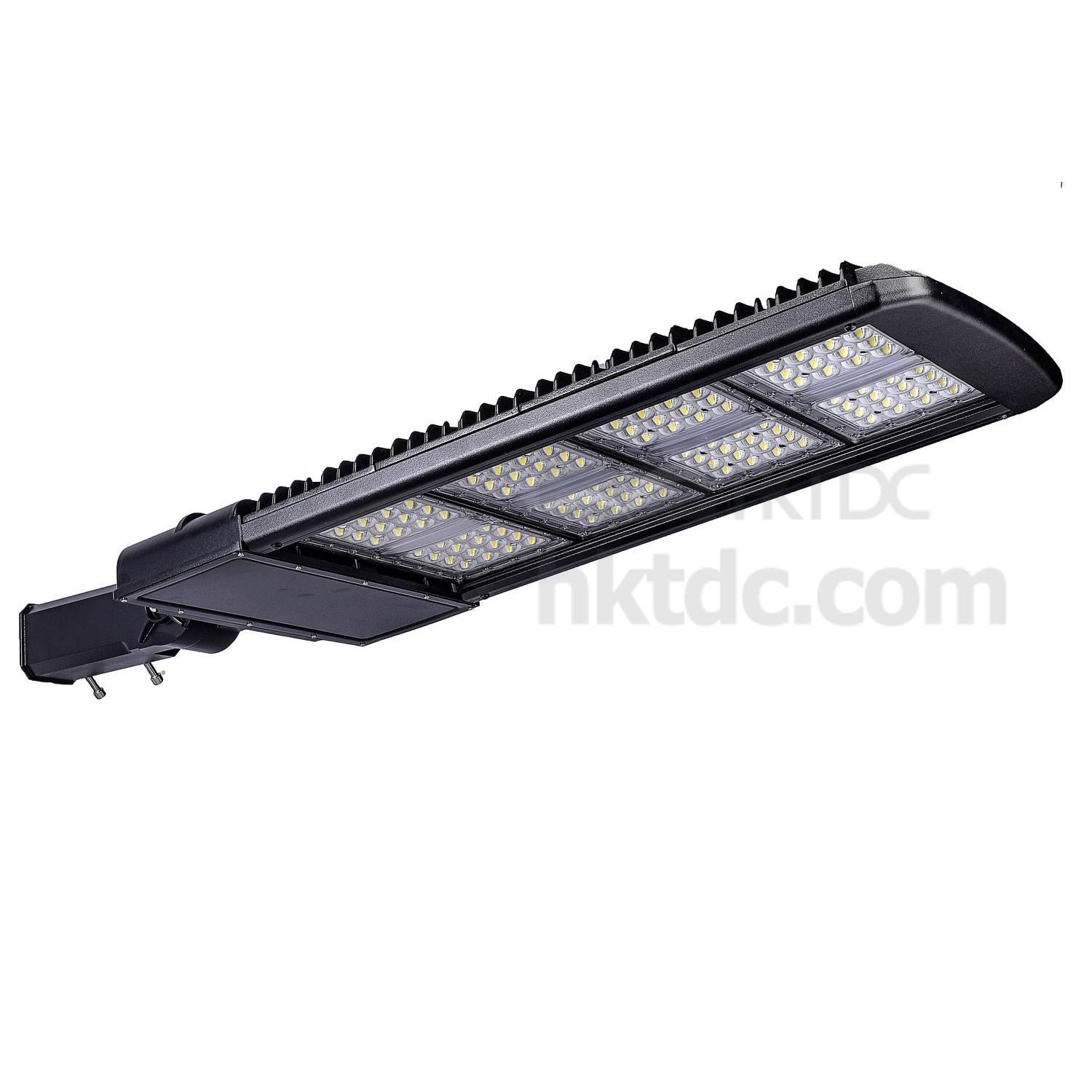

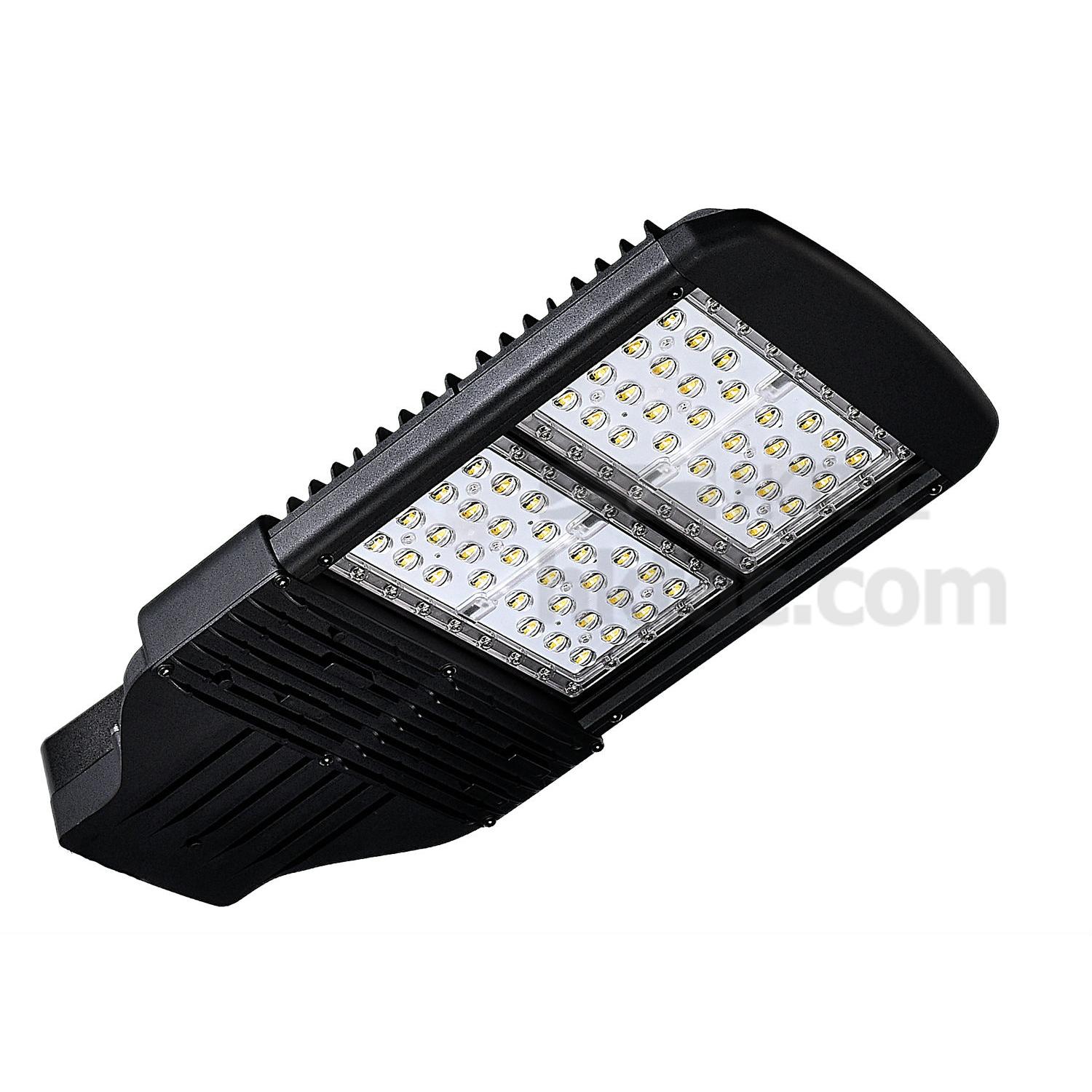

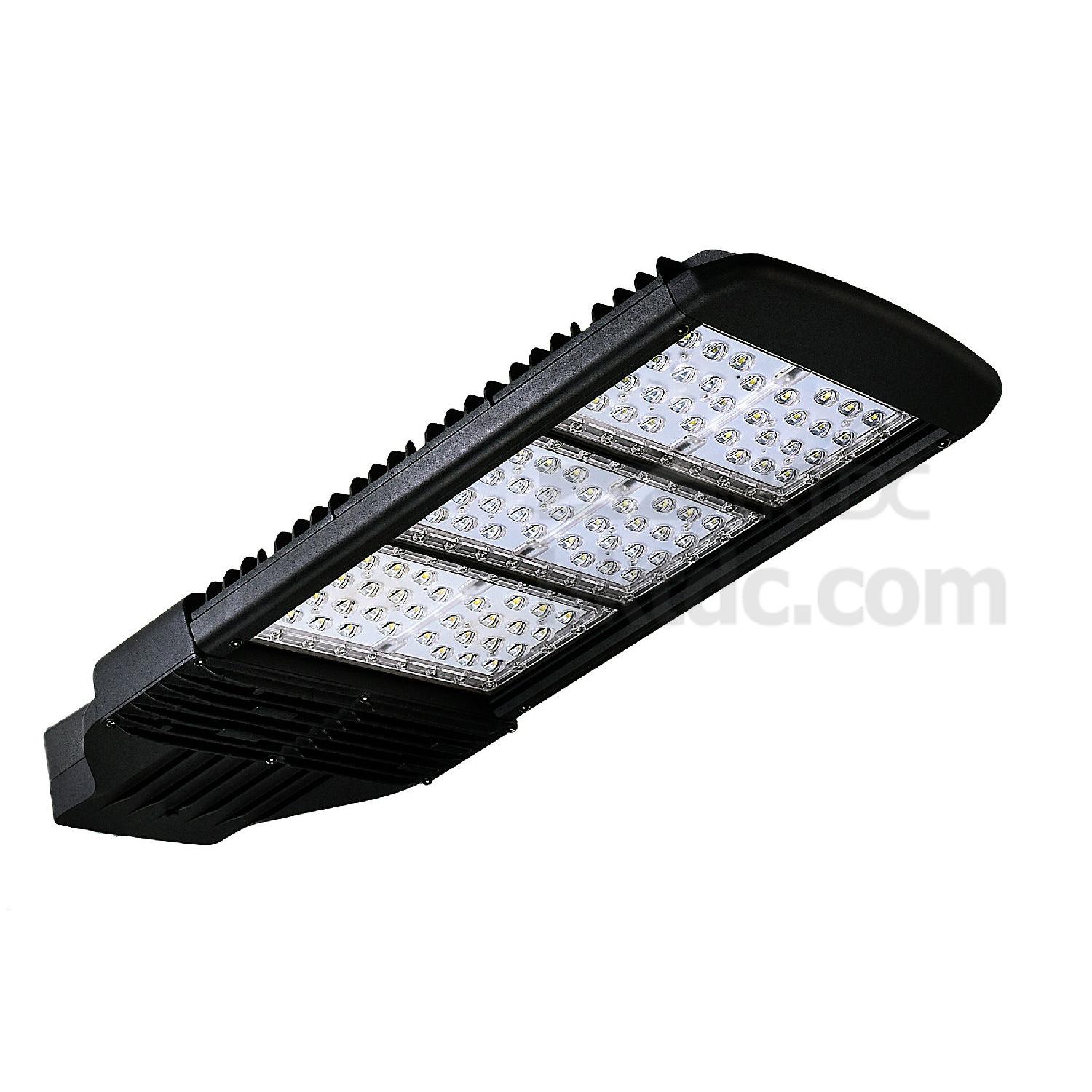

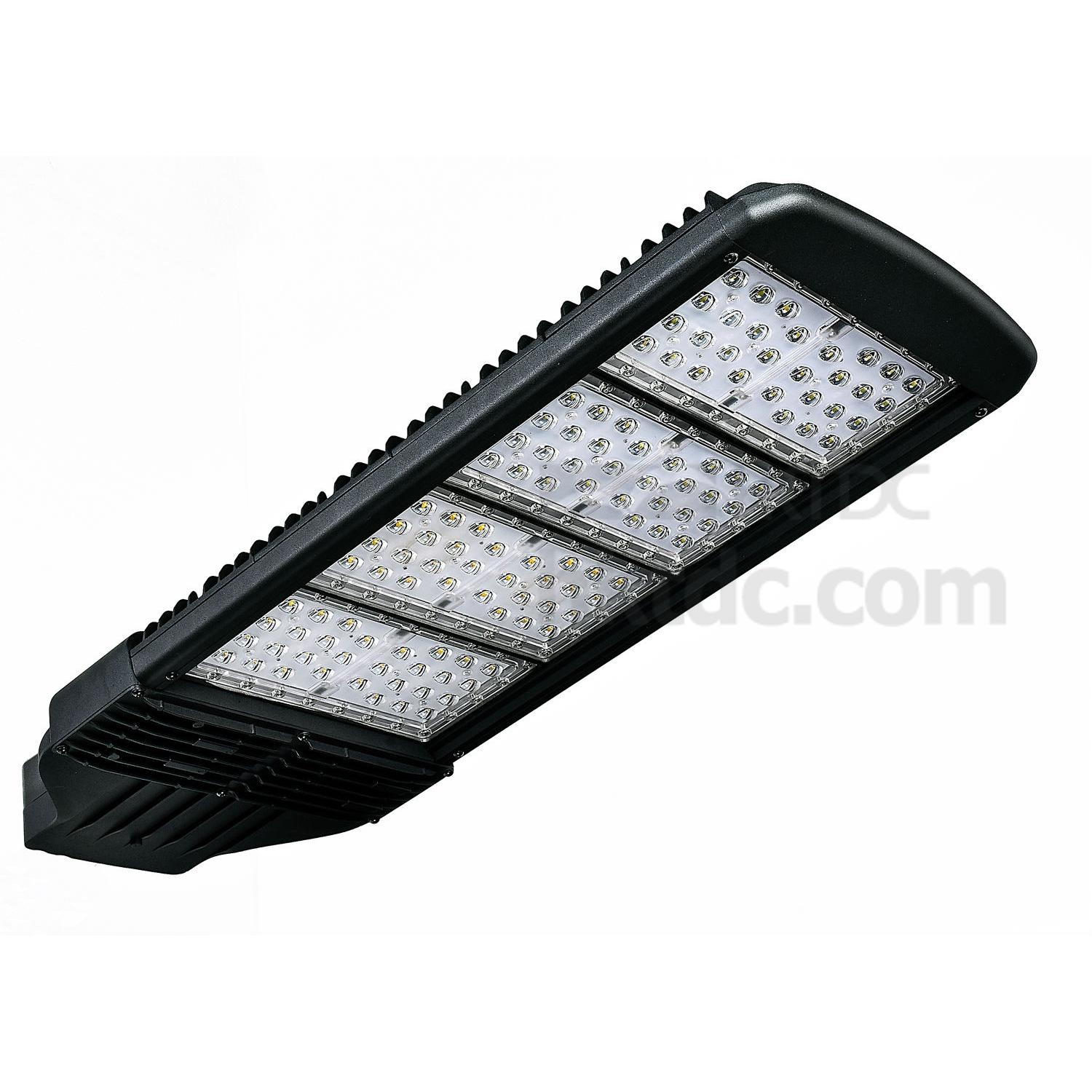

LED Area Light (SMD Series)
Production Lead Time:
45 day(s)
Model No.:
SV-LLD(80-350S)
Brand:
SunValley
Colour:
Black
Port:
Yantian Port, Shenzhen, China
Type of Payment:
T/T, Samples Order: T/T in advance
Minimum Order Quantity:
100
Voltage(V):
90-305
Certification:
CE, FCC, RoHS, UL, DLC, ETL
Wattage(W):
150
Warranty:
5 year
Light Source:
LED Bulb
Body Material:
Aluminum
Power Source:
AC
Including Bulbs:
Yes
Customized:
Yes
Description
Contact Supplier
Description
- Model: SV-LLD80,100,120,150,180,200,240,350
- Output power: 80W,100W,120W,150W,200W,240W,350W
- Material: ADC die-cast aluminium alloy
- Light source: LumiLeds
- Light distribution standard: Comply with North American and European standards
- Driver: INVENTRONICS
- Input voltage: 90-305 VAC or 127-300 VDC
- Output voltage: 48VDC
- Output current: 700mA-1050mA
- Frequency range: 47-63Hz
- Power factor: PF﹥0.95. 120VAC; PF﹥0.96. 220VAC
- Power-supply efficiency:＞92%
- Luminous efficacy class: LER＞120/W
- Protection: Short circuit/Over voltage/Over temperature automatic protection
- Operating temperature: 一40℃～+55℃
- Operating humidity:10～95% RH or damp location
- Driver: 0-10V / PWM Intelligent Dimming. Class 2 and SELV. SPD 4KV
- Protection level:be suitable for risky situations of ClassⅠ& Division 2 in North America. IP65.
- Heat-dissipating method:Natural air cooling
- Safety certification: UL, ETL, FCC, DLC and CE, RoHS
- Size: 465, 585, 725, 860 x 345 x 107mm
- Net weight: 7.5Kg-13.5Kg
- Packaging: Carton + polyfoam
