LED Display
Share this page
Model No.:
Thin 4/6/8
Description
Contact Supplier
Description

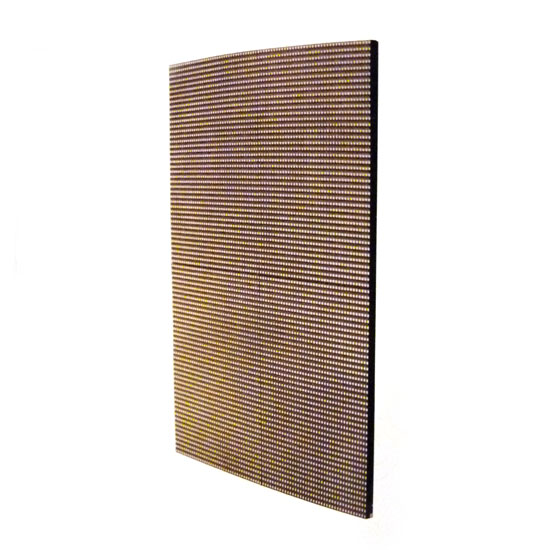

This LED display is designed for advertisement and different kinds of public announcements. Graphics and text messages can be shown with this display device. It is ideal for use in public areas such as stations and malls.
  • Pixel pitch: thin4/4.6mm, thin6/6.25mm, thin8/7.8mm.
  • Pixel matrix: thin4/108x108 dot, thin6/80x80 dot, thin8/64x64 dot.
  • LED quantity/module: thin4/46,648 dot, thin6/25,600 dot, thin8/16,394 dot.
  • Weight: thin4/6.3kg/panel, thin6/6.3kg/panel, thin8/6.2 kg/panel.
  • Power consumption: thin4/170W/panel, thin6/185W/panel, thin8/130W/panel.
  • Shortest viewing distance: thin4/5m, thin6/6 m, thin8/8m.
  • Pixel configuration: SMD 3-IN-1.
  • Brightness: 1,200-2,000 nit.
  • Data refresh rate: 800-1,600Hz.
  • Gray scale: 12 bit.
  • Brightness adjustment: 256 levels.
  • Contrast: 2000:1.
  • Unit size: 500 x 500 x 55mm/panel.
  • Unit area: 0.25 sq.m/panel.
  • Viewing angle: 140°/110°.
  • Out-of-control point: <0.0002.
  • Tenure life of lamp-hour (50% brightness): >50,000 hours.
  • Protection level: IP43/54 (optional).
  • Working temperature: -10°C-+40°C.
  • Relative humidity: 10%-90%RH.
  • Work voltage: AC110-240V/ 50-60Hz.
  • Drive mode: static constant current.
  • Operating system: Windows (2000/XP/Vista).
  • Control system: AV, S-Video, VGA, CVBS, HDMI, DVI.
  • Control distance: HSYV; <100m.
  • Certificate: CE.
