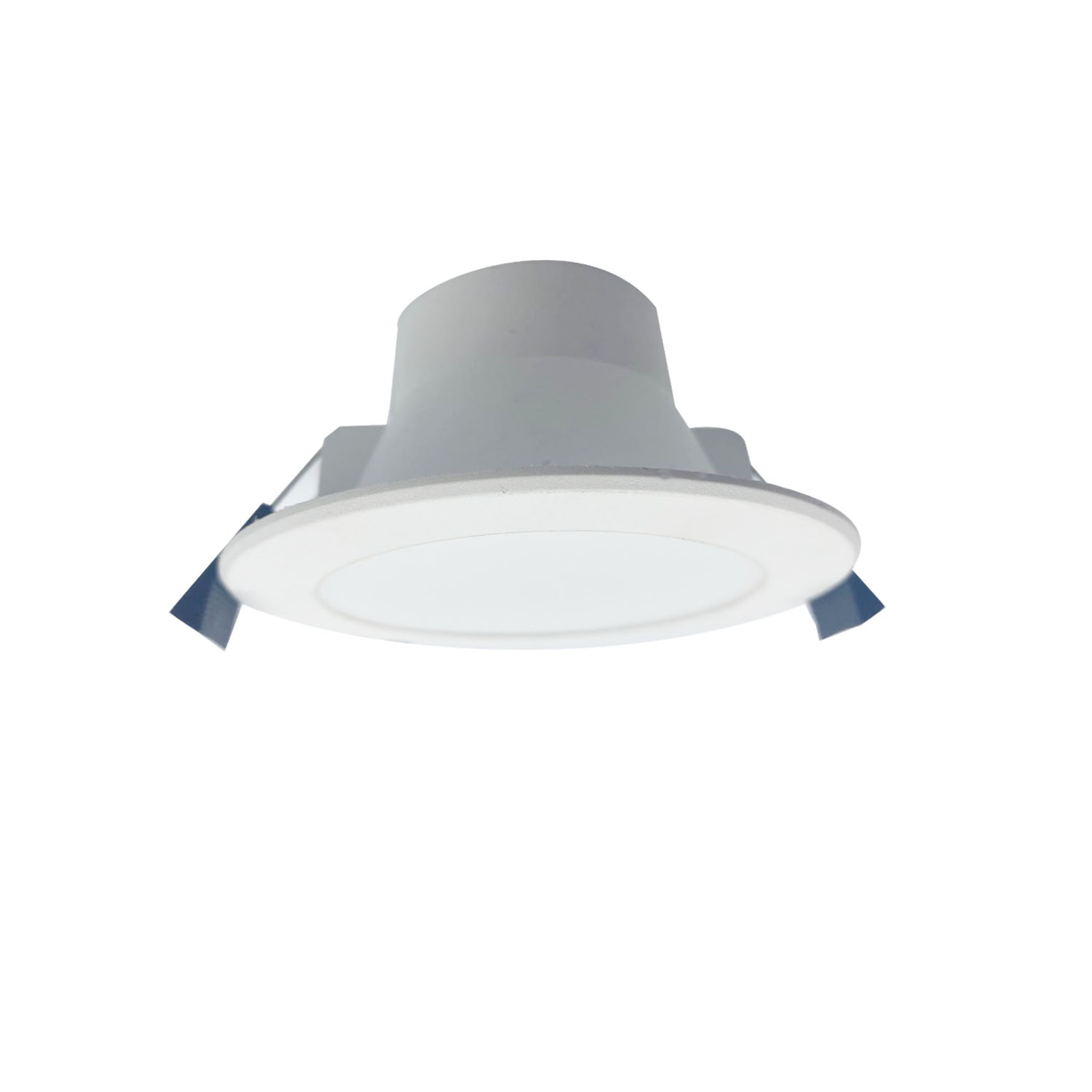

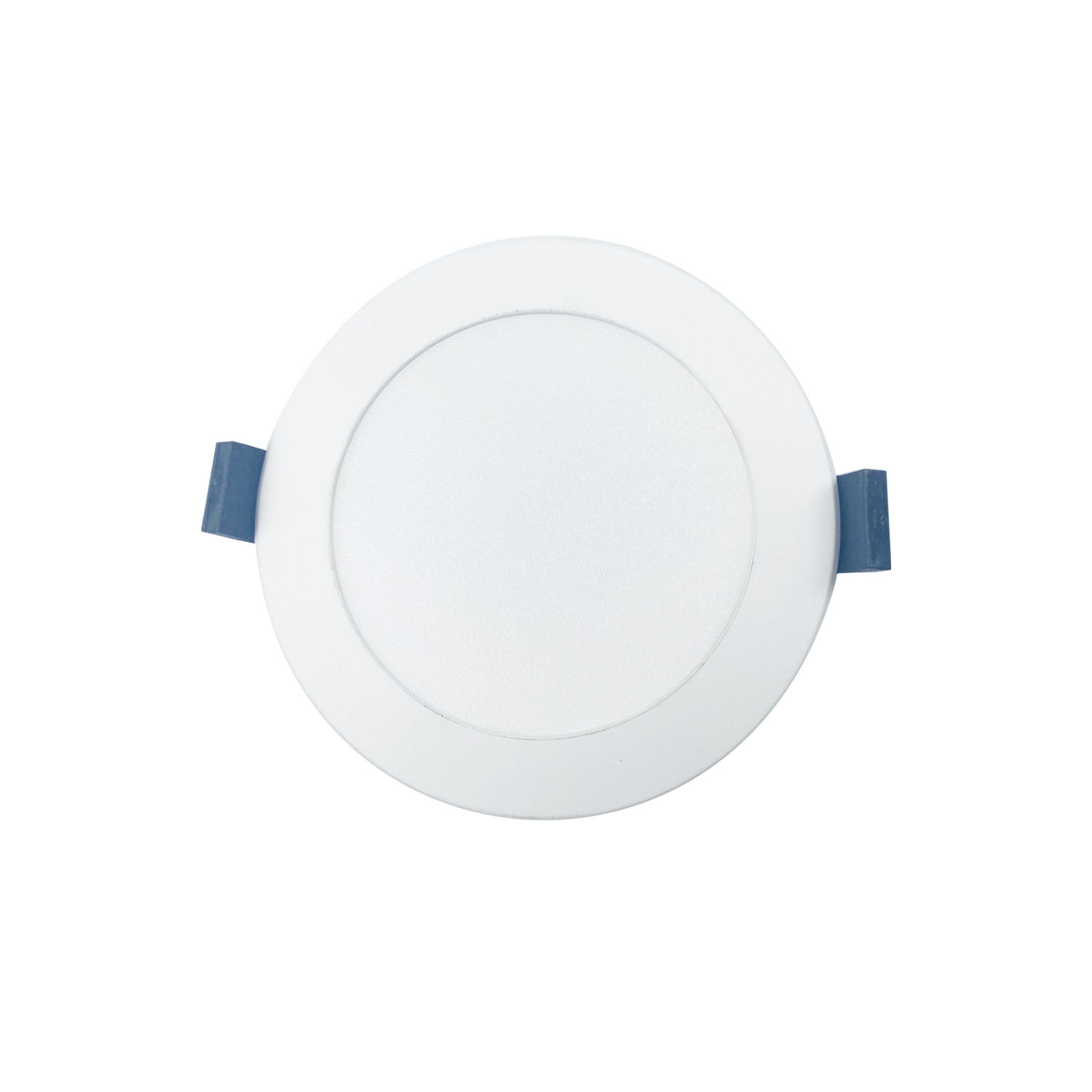

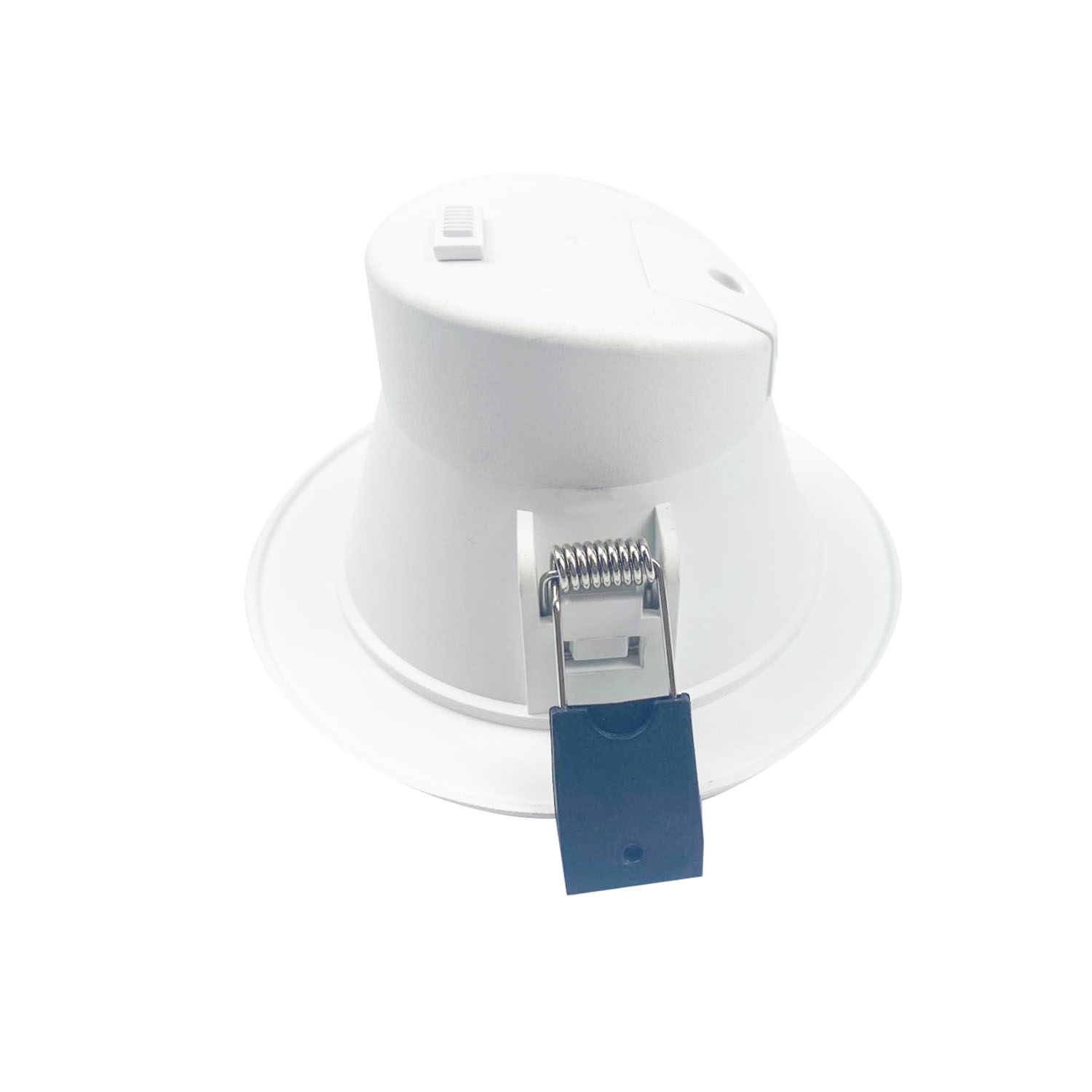

    LED Downlight
    Share this page
    Production Lead Time:
    20-35 day(s)
    Shipping Method:
    Air Freight, Sea Freight, Express
    Model No.:
    DL01-F
    Brand:
    SIMONS
    Power:
    5W, 8W, 10W
    Lumens Efficiency:
    80-100lm/w
    Input Voltage:
    220-240V
    PF:
    >0.9
    Beam Angle:
    100˚
    Material:
    Aluminum Coated Plastic
    Cover:
    PC
    Working Temperature:
    -20~50℃
    CRI:
    Ra 80, 90
    IP Rating:
    IP44
    CCT:
    Single Color (3000K-5000K), 3 CCT
    LED Chip:
    SMD 2835
    Light Body Colour:
    White, Black
    Installation:
    Recessed
    Fascia:
    Flat
    Working Frequency:
    50/60HZ
    Lifetime:
    30000Hrs
    Application:
    Office, Shop, Family etc
    Certification:
    SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80
    Origin:
    Xiamen, China
    Description
    Contact Supplier
    Description

    Features


    1. Advanced thermal conductive plastics radiator, good heat dissipation performance, long lifespan.


    2. Optional to dimmable and non-dimmable.

    3. Built-in driver, good dimming performance and support most branded dimmers.

    4. Compared with aluminum downlight, it has higher cost effective.


    5. Approved with SAA, C-tick, CE, RoHs certification.

    6. IC-4 rated, can be safely covered and abutted to building insulation.

    7. High lumen output, lumen efficiency can up to 100lm/w

    8. Optional to be single CCT and Tri-colour

    9. Using the high light transmittance PC diffuser, high lumen output. It has three buckles on the diffuser to promise it won’t be dropped down.

    10. Chips on the PCB board, reasonable distribution, shinning evenly. No dark space even though dim to lowest.

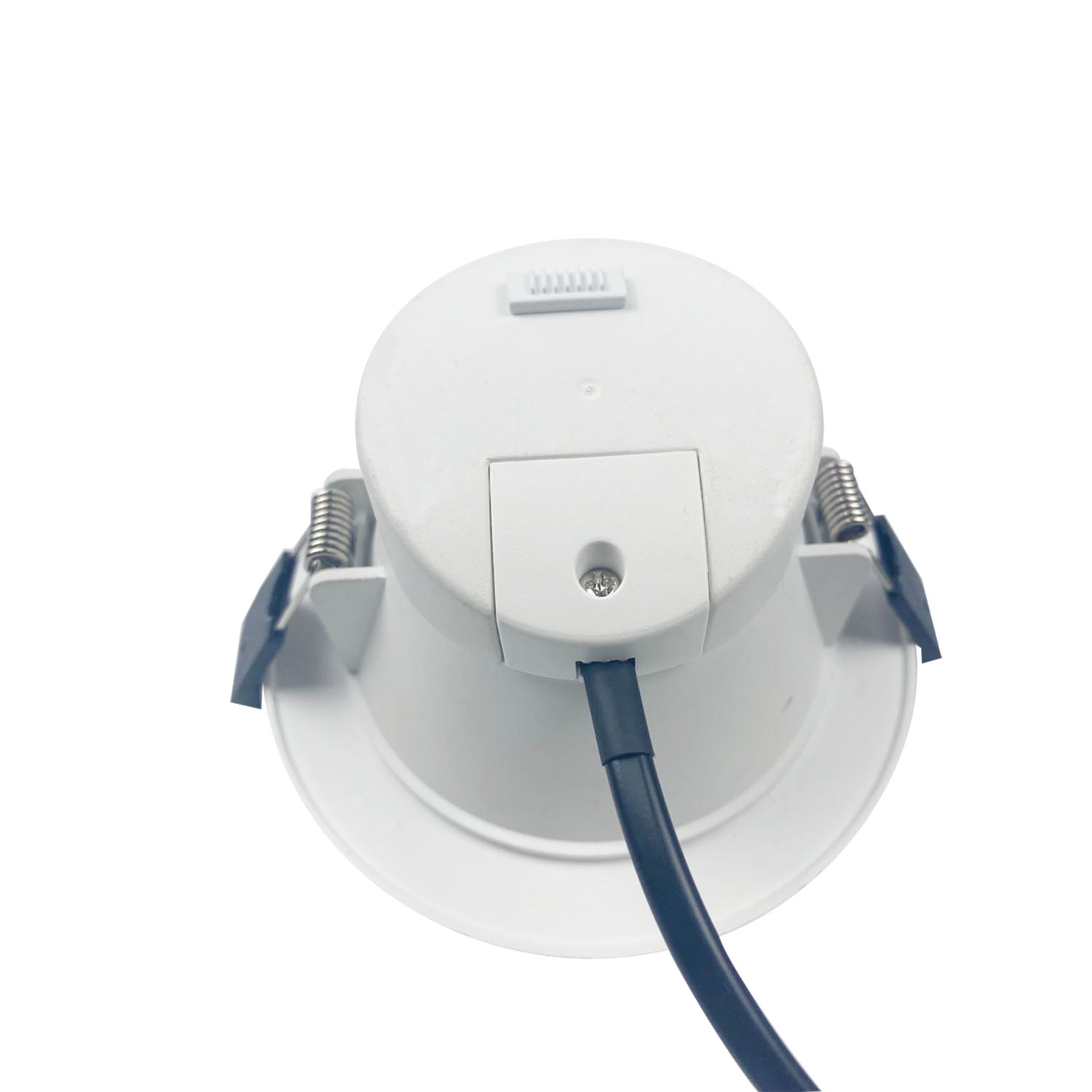

    11. For tri-colour downlight, the switcher is on the top of the light, customer can switch to 3000K/4000K/5000K and reduce the stock. The colour of the switcher can be changed to any colour you want.

    12. Optional to use metal fascia on the light. Chrome, nickel, zinc, silver, black , copper and golden fascias all can be done.


    Models

    Model

    Power

    Cut-out

    Diameter

    Height

    SM-DL01-02-05-F

    5W

    70mm

    92mm

    55mm

    SM-DL01-02-08-F

    8W

    70mm

    92mm

    55mm

    SM-DL01-03-05-F

    5W

    90mm

    115mm

    60mm

    SM-DL01-03-08-F

    8W

    90mm

    115mm

    60mm

    SM-DL01-03-10-F

    10W

    90mm

    115mm

    60mm
