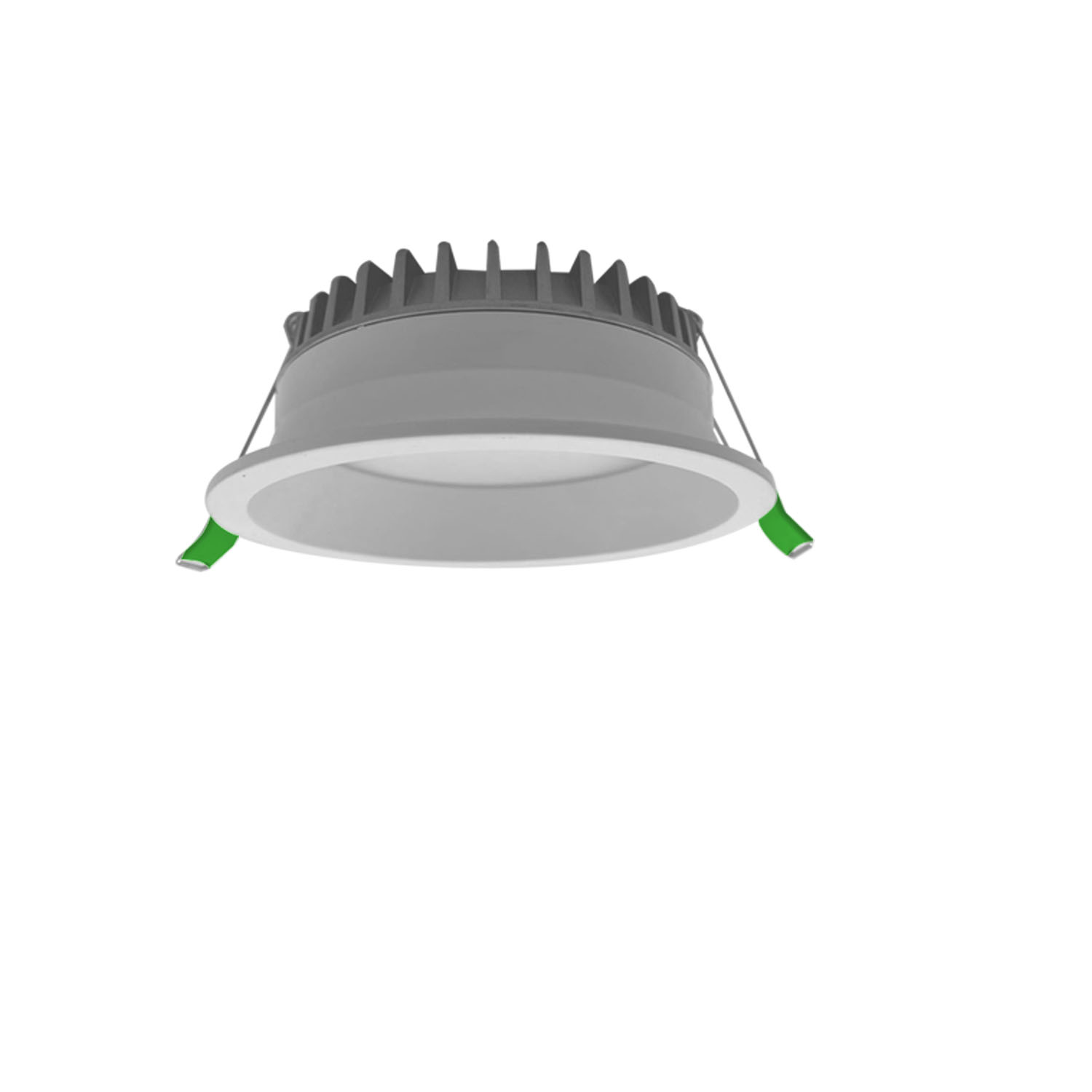

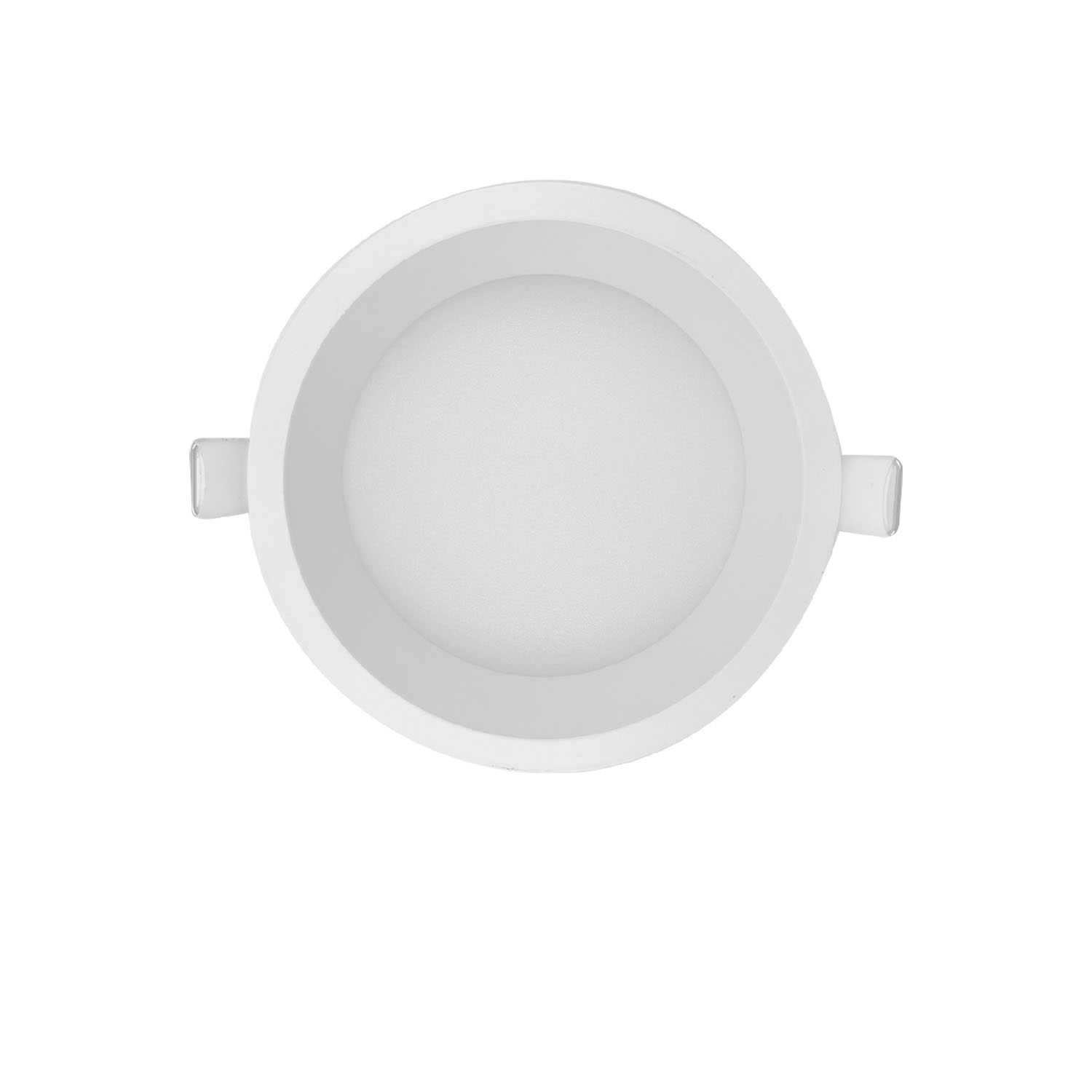

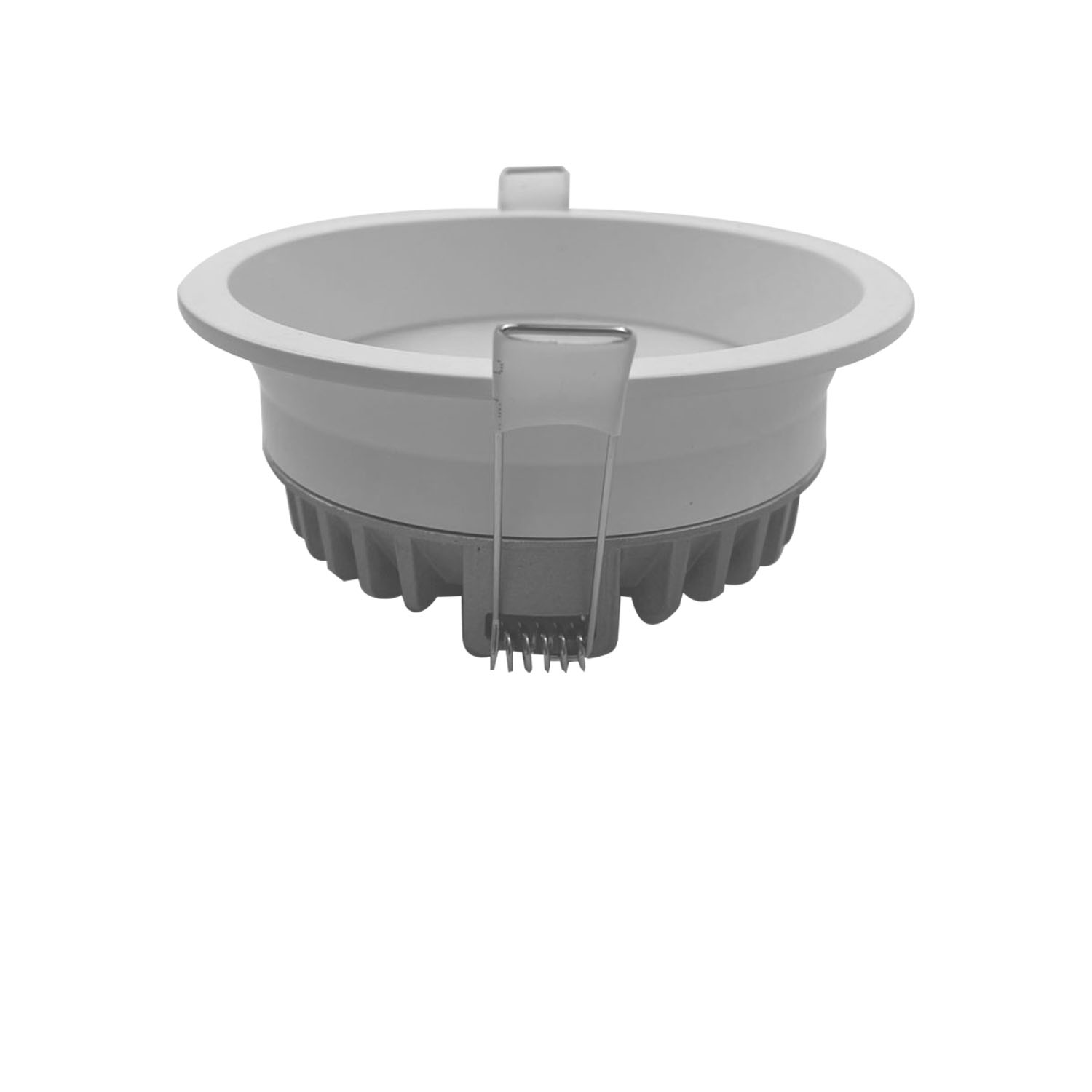

LED Downlight
Production Lead Time:
20-35 day(s)
Shipping Method:
Air Freight, Sea Freight, Express
Model No.:
DL06
Brand:
SIMONS
Customised:
Yes
Power:
3W, 5W, 7W, 8W, 9W, 10W, 12W, 18W, 20W, 25W
Lumens Efficiency:
80-100lm/w
Input Voltage:
220-240V
Beam Angle:
90˚
PF:
>0.9
CRI:
RA 80,90
IP Rating:
IP44
CCT:
Single Color (3000K-5000K), 3 CCT
Material:
Die-casting Aluminum
Cover:
PC diffuser
Working Temperature:
-20~50℃
LED Chip:
SMD 2835
Light Body Colour:
White, Black
Installation:
Recessed
Working Frequency:
50/60HZ
Lifetime:
30000Hrs
Application:
hotel, receiption, shop, office, mall, restaurant, bar etc
Certification:
SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80
Origin:
Xiamen, China
Description
Contact Supplier
Description
Features
1. Easy selectable colour temperature with an switch on the driver

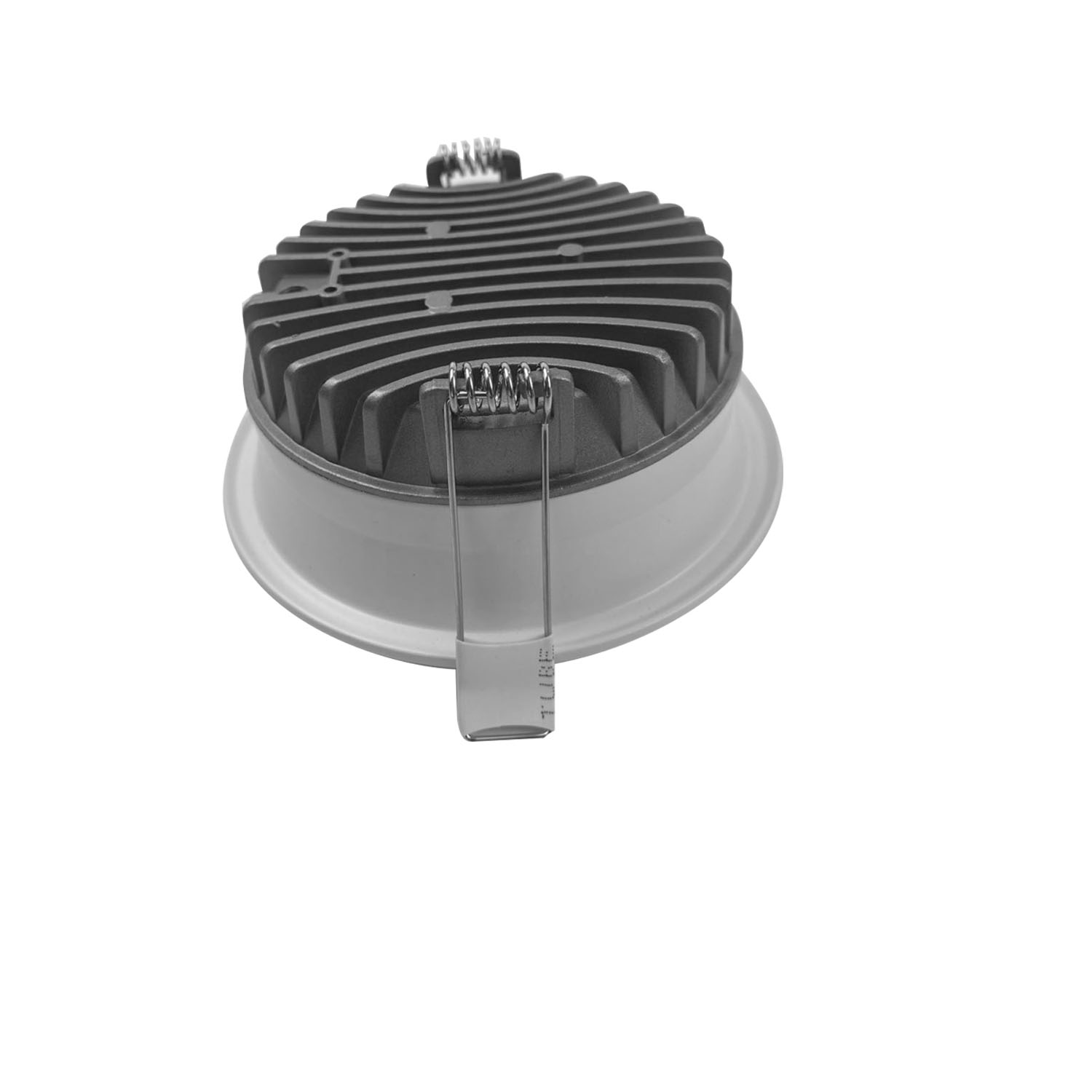

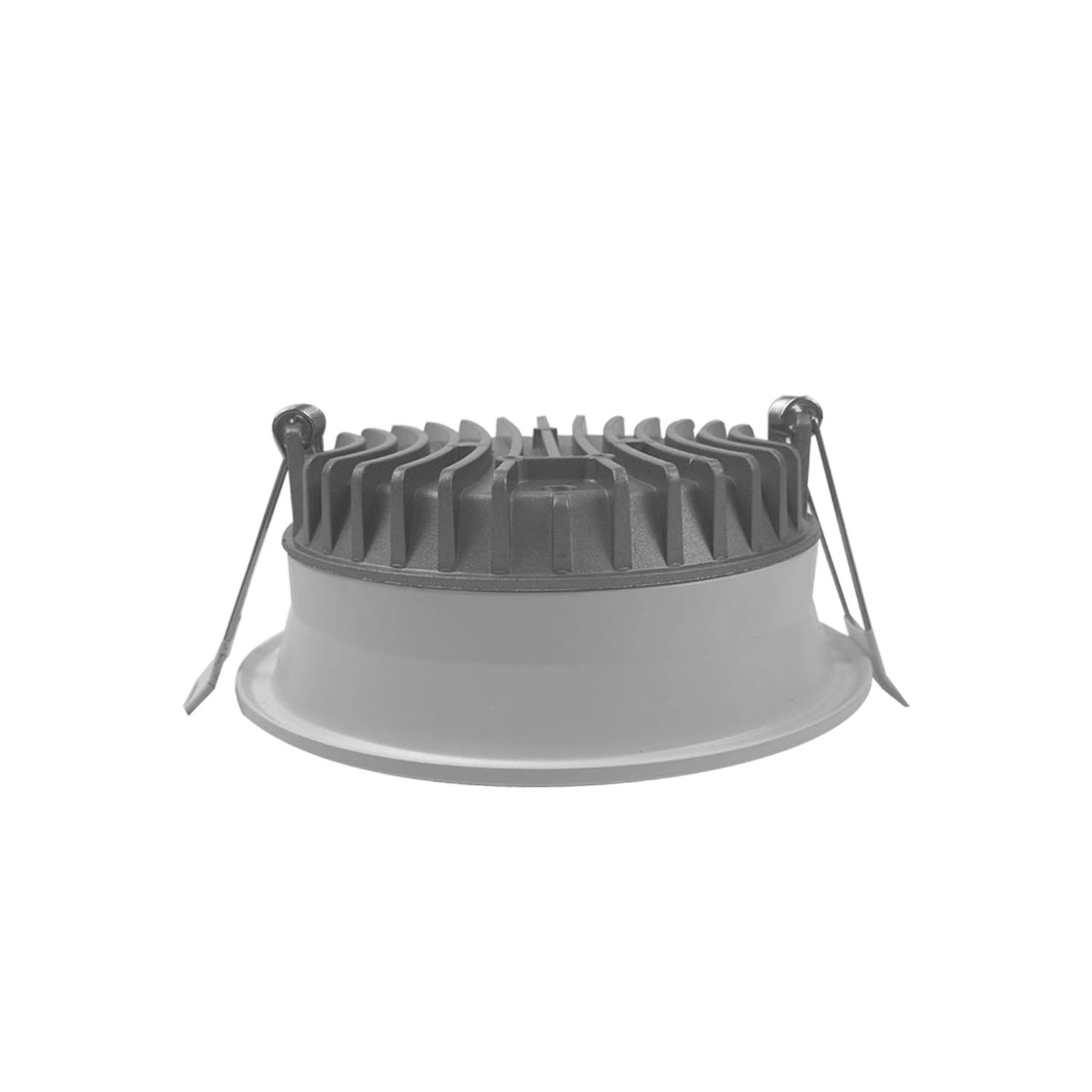

2. Strong heat dissipation of the heatsink, IC-4 rated
3. Durable die-cast aluminum body profile, with white, black or silver trim
4. Constant current trailing edge dimmable and non-dimmable driver configurations fitted with flex and plug
5. Dimmer Type: Trailing edge, 0-10V, DALI / DSI, Tuya Smart
6. Stylish powder coat finish
7. High efficiency SMD LED chips
8. IP44 protection degree for indoor use
9. Deep Anti-glare design
Models
Model | Power | Cut-out | Diameter | Height |
SM-DL06-02-03 | 3W | 75mm | 85mm | 50mm |
SM-DL06-02-05 | 5W | 75mm | 85mm | 50mm |
SM-DL06-85-05 | 5W | 85mm | 95mm | 50mm |
SM-DL06-85-07 | 7W | 85mm | 95mm | 50mm |
SM-DL06-03-08 | 8W | 90mm | 102mm | 56mm |
SM-DL06-03-09 | 9W | 90mm | 102mm | 56mm |
SM-DL06-04-09 | 9W | 110mm | 124mm | 56mm |
SM-DL06-04-10 | 10W | 110mm | 124mm | 56mm |
SM-DL06-04-12 | 12W | 110mm | 124mm | 56mm |
SM-DL06-07-18 | 18W | 168mm | 175mm | 56mm |
SM-DL06-07-20 | 20W | 168mm | 175mm | 56mm |
SM-DL06-07-25 | 25W | 168mm | 175mm | 56mm |
