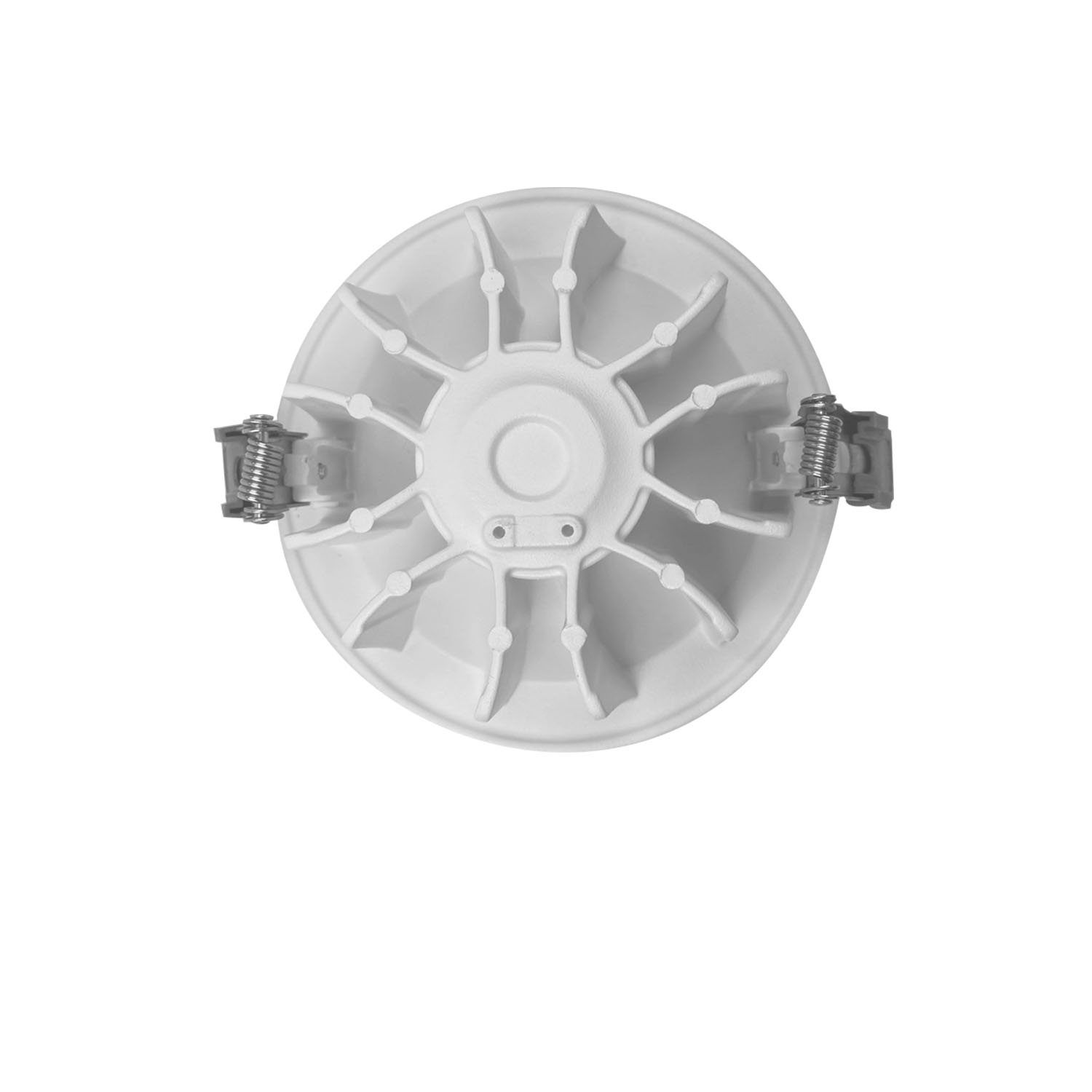

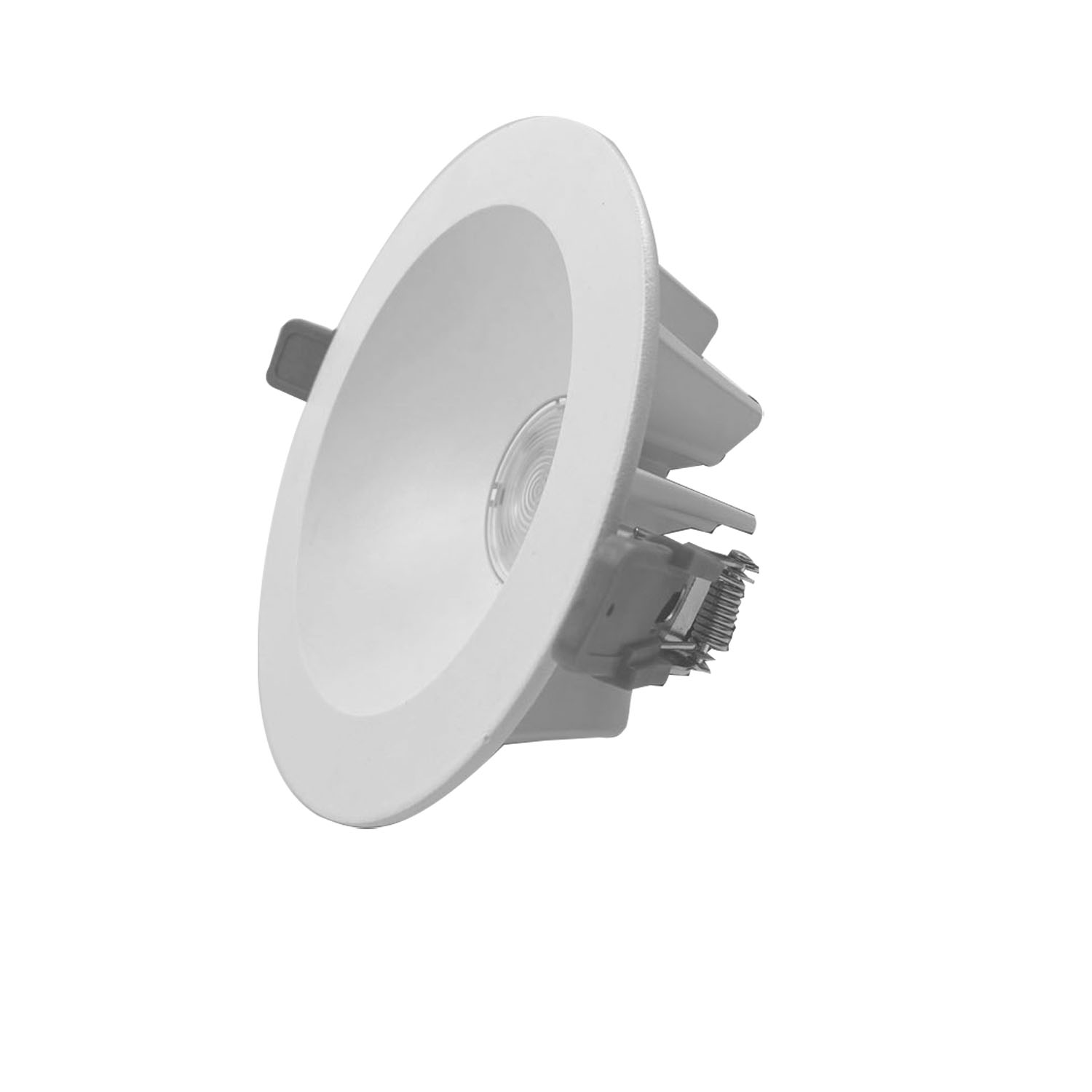

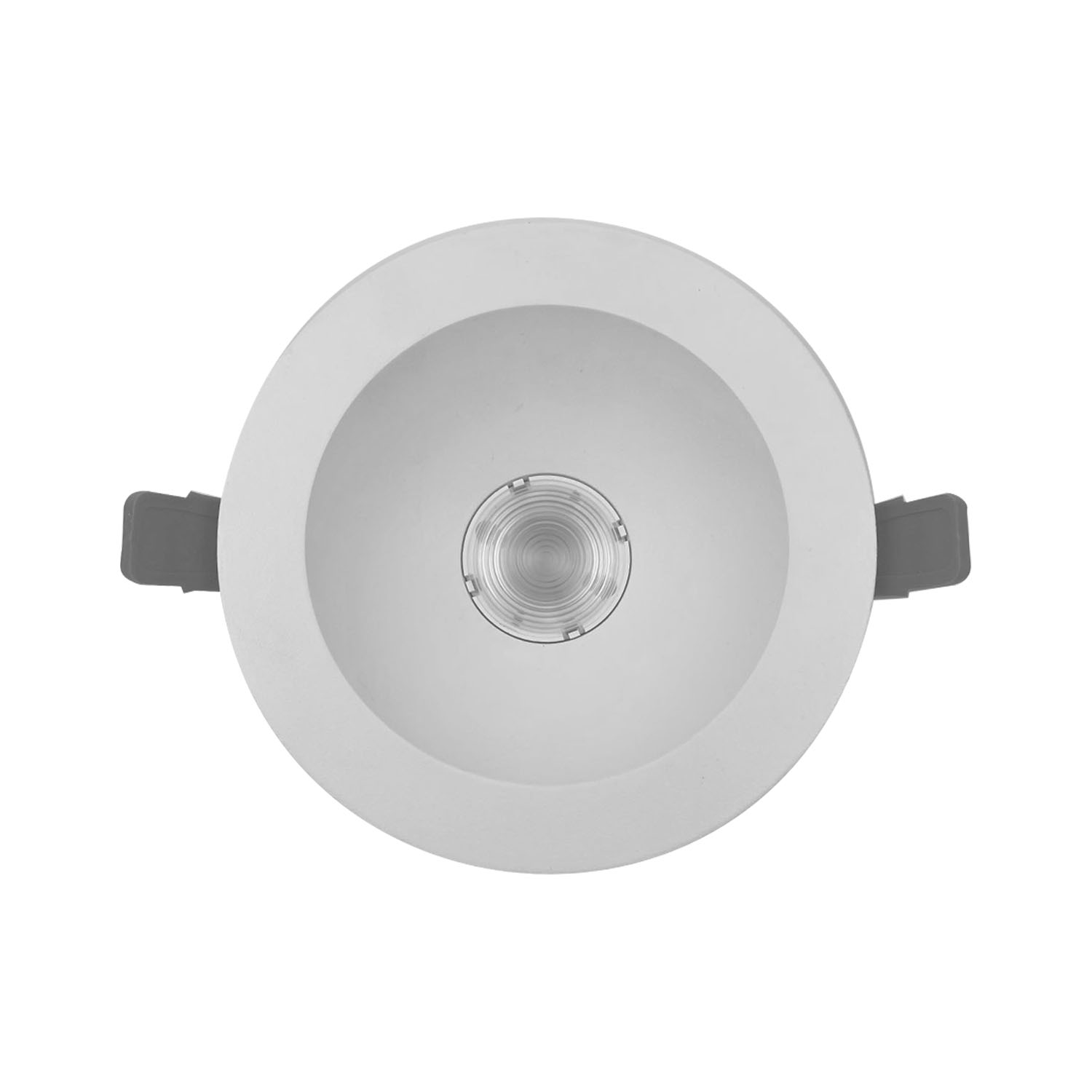

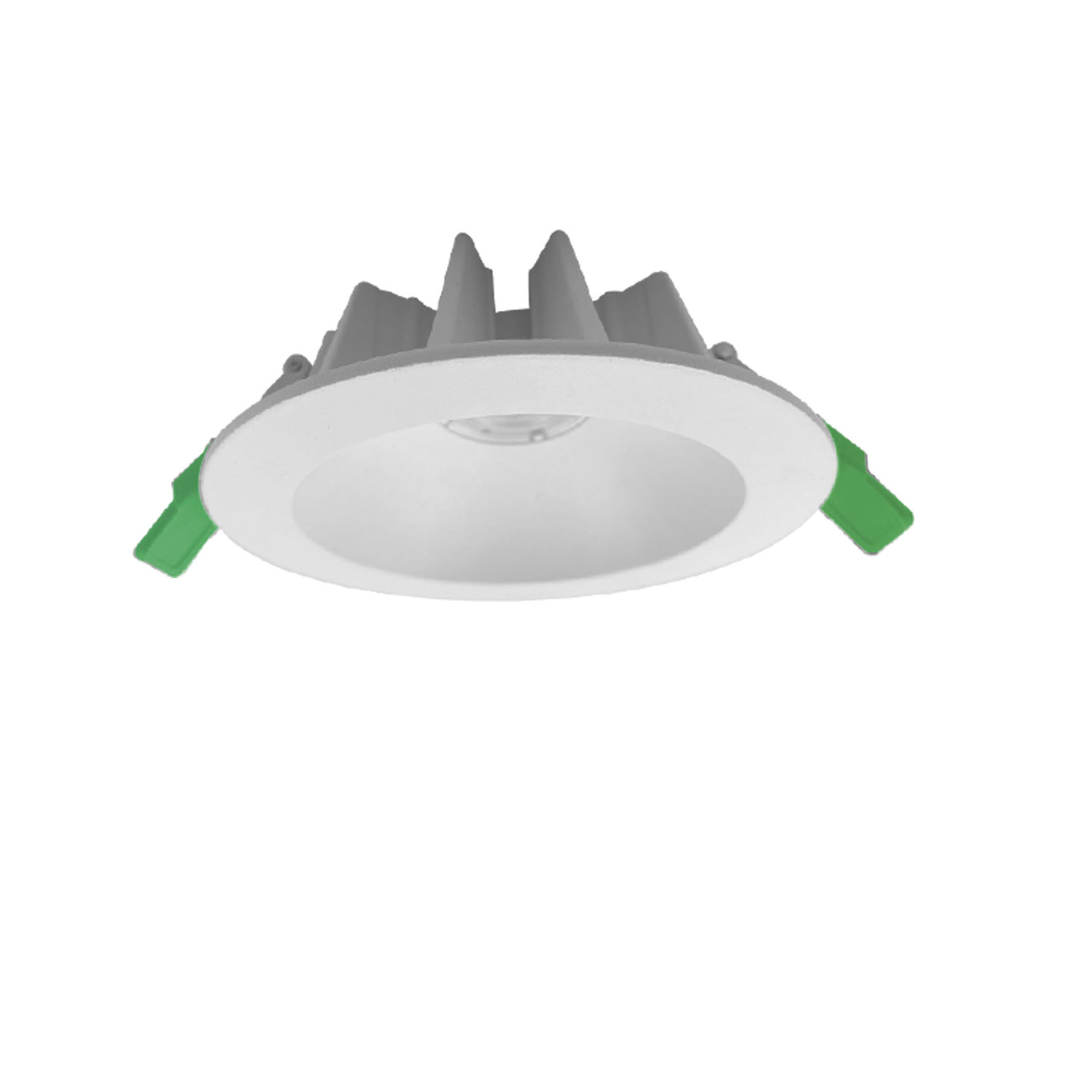

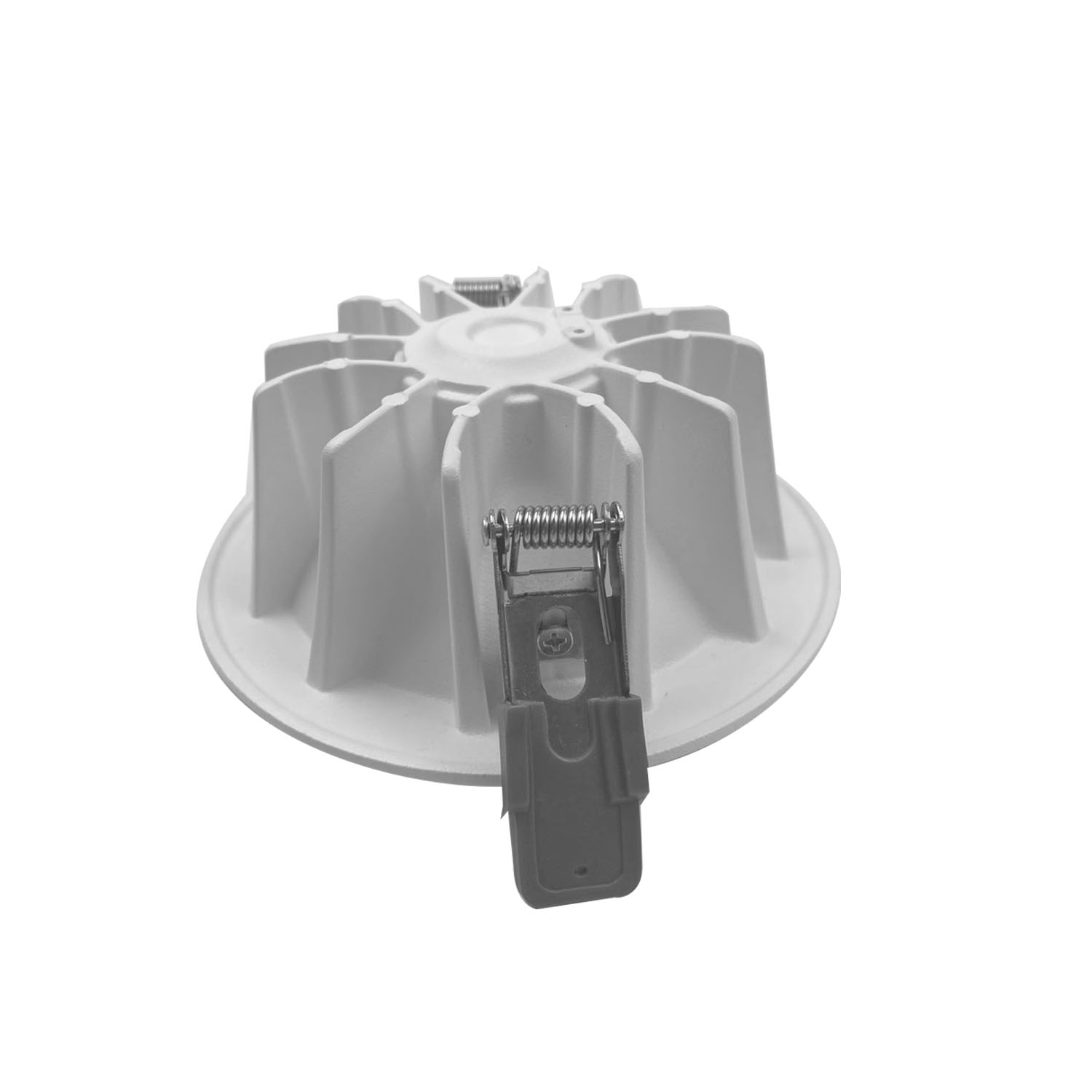

LED Downlight
Production Lead Time:
20-35 day(s)
Shipping Method:
Air Freight, Sea Freight, Express
Model No.:
DL14
Brand:
SIMONS
Customised:
Yes
Input Voltage:
220-240V
Power:
7W, 8W, 10W, 12W, 13W, 15W, 16W, 18W, 20W, 22W, 25W, 26W, 28W, 30W, 35W, 40W
Lumens Efficiency:
80-90lm/w
PF:
>90
CRI:
80,90
Beam Angle:
45°
IP Rating:
IP44
Material:
Die-casting Aluminum
Cover:
Lens
CCT:
Single Color (3000K-5000K), 3 CCT
Working Temperature:
-20~50℃
LED Chip:
COB
Light Body Colour:
White, Black
Installation:
Recessed
Fascia:
Deep Recessed
Working Frequency:
50/60HZ
Lifetime:
30000Hrs
Application:
hotel, receiption, shop, office, mall, restaurant, bar etc
Certification:
SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80
Origin:
Xiamen, China
Description
Contact Supplier
Description
Features
1. Assemble with Fresnel lens, accurate beam angle and nice output
2. Unique structure ensure product high end and gorgeous design.
3. Deep recessed design, UGR<19
4. Die-casting aluminum heat sink, better heat radiation, ensure the performance and long life span.
5. High performance & brightness LED chip, CRI >90Ra.
6. IP44 protection degree for indoor use
7. Dimmer Type: Trailing edge, 0-10V, DALI / DSI, Tuya Smart
8. Constant current trailing edge dimmable and non-dimmable driver configurations fitted with flex and plug
9. Optional to 3-CCT and single CCT
Models
Model | Power | Cut-out | Diameter | Height |
SM-DL14-02-07 | 7W | 75mm | 100mm | 50mm |
SM-DL14-02-08 | 8W | 75mm | 100mm | 50mm |
SM-DL14-02-10 | 10W | 75mm | 100mm | 50mm |
SM-DL14-03-12 | 12W | 95mm | 115mm | 55mm |
SM-DL14-03-13 | 13W | 95mm | 115mm | 55mm |
SM-DL14-03-15 | 15W | 95mm | 115mm | 55mm |
SM-DL14-04-15 | 15W | 120mm | 140mm | 60mm |
SM-DL14-04-16 | 16W | 120mm | 140mm | 60mm |
SM-DL14-04-18 | 18W | 120mm | 140mm | 60mm |
SM-DL14-05-20 | 20W | 140mm | 160mm | 65mm |
SM-DL14-05-22 | 22W | 140mm | 160mm | 65mm |
SM-DL14-05-25 | 25W | 140mm | 160mm | 65mm |
SM-DL14-06-25 | 25W | 170mm | 195mm | 70mm |
SM-DL14-06-26 | 26W | 170mm | 195mm | 70mm |
SM-DL14-06-28 | 28W | 170mm | 195mm | 70mm |
SM-DL14-06-30 | 30W | 170mm | 195mm | 70mm |
SM-DL14-08-30 | 30W | 200mm | 225mm | 80mm |
SM-DL14-08-35 | 35W | 200mm | 225mm | 80mm |
SM-DL14-08-40 | 40W | 200mm | 225mm | 80mm |
