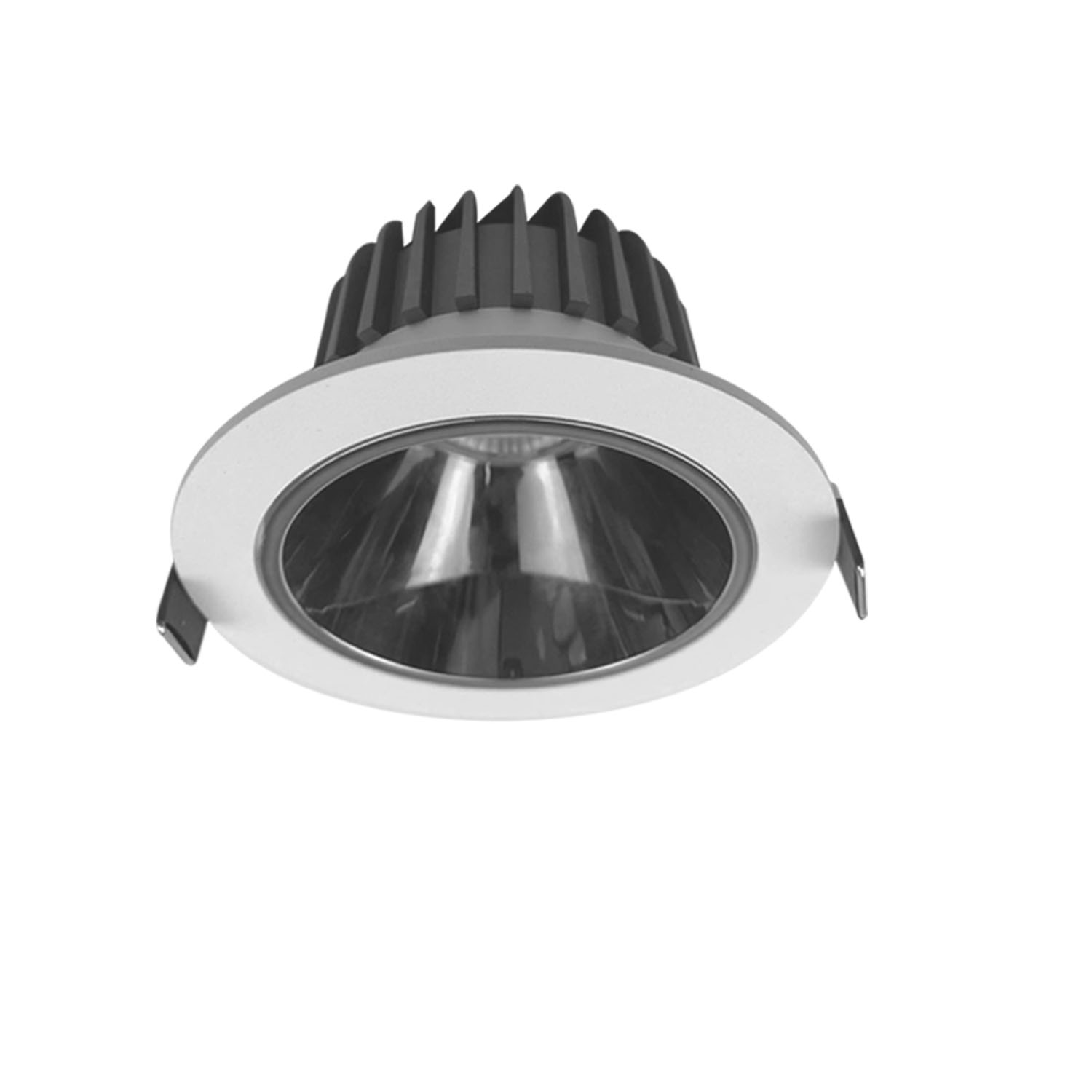

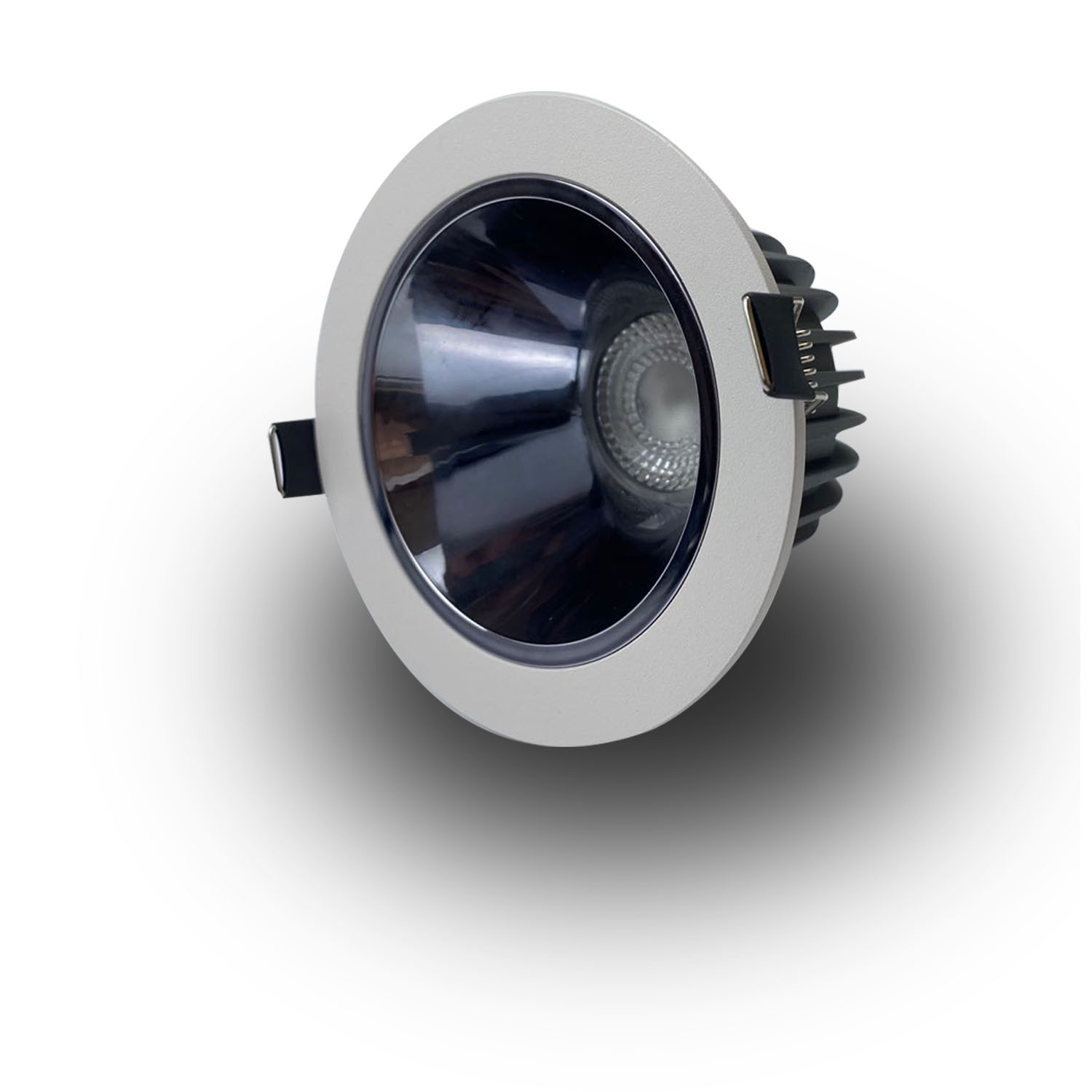

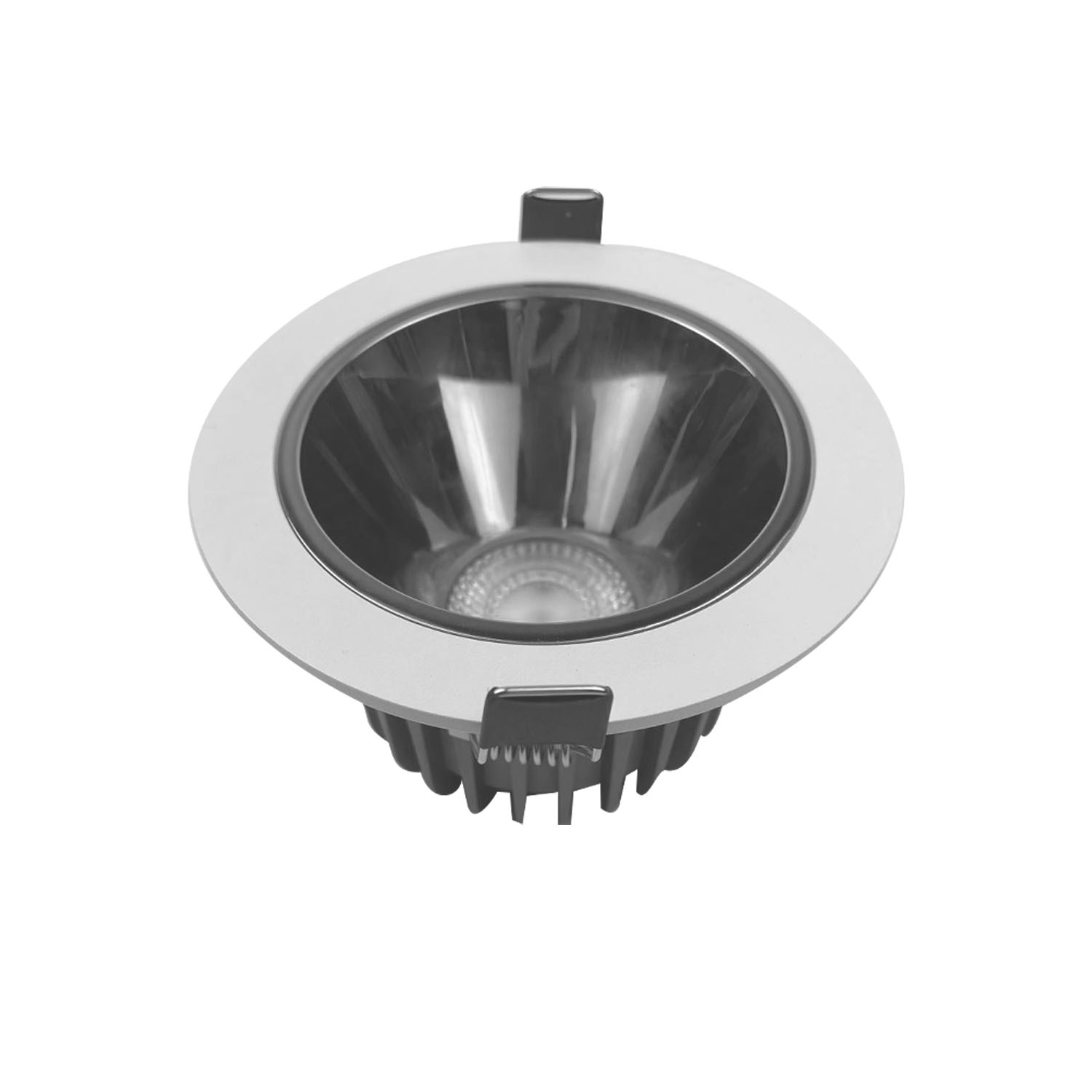

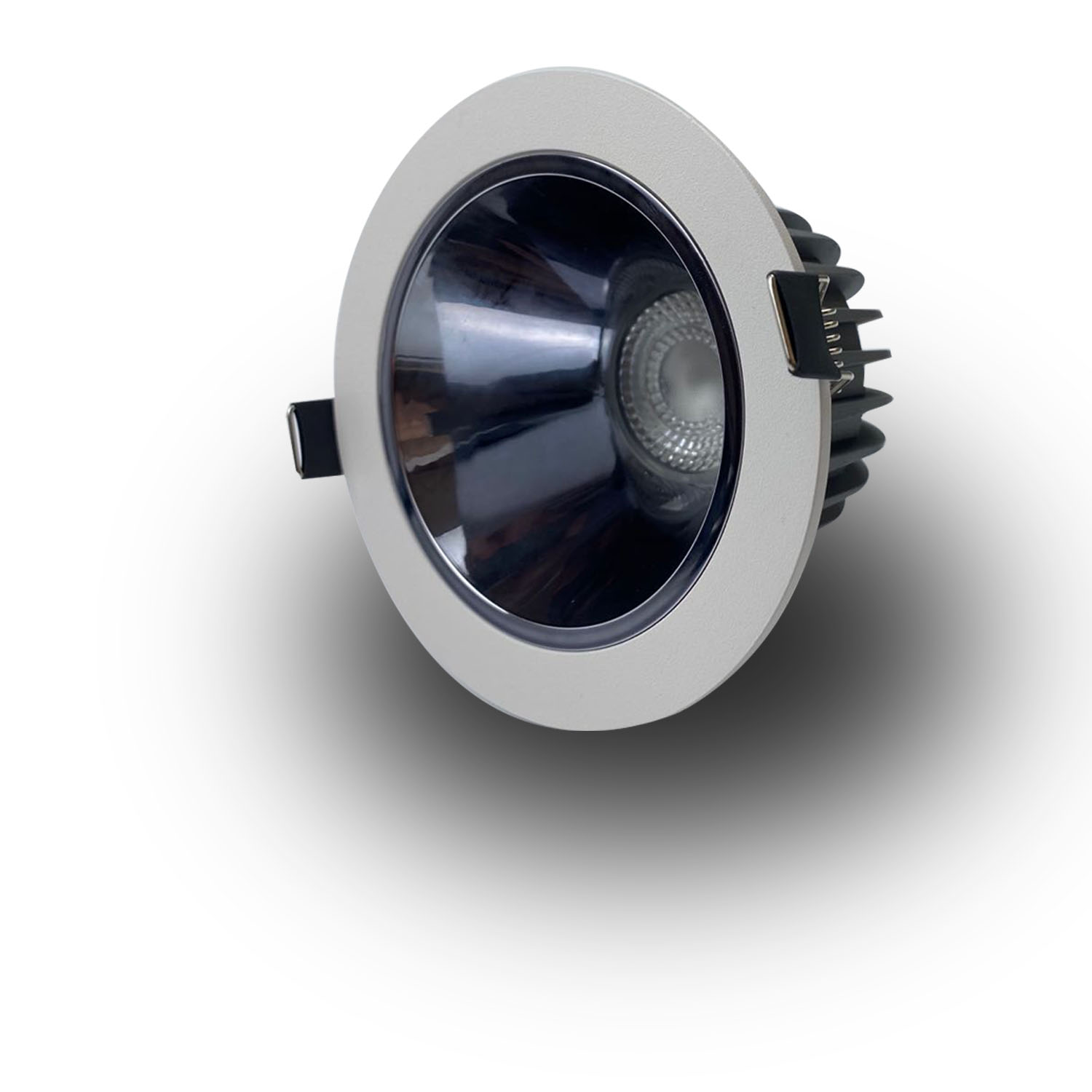

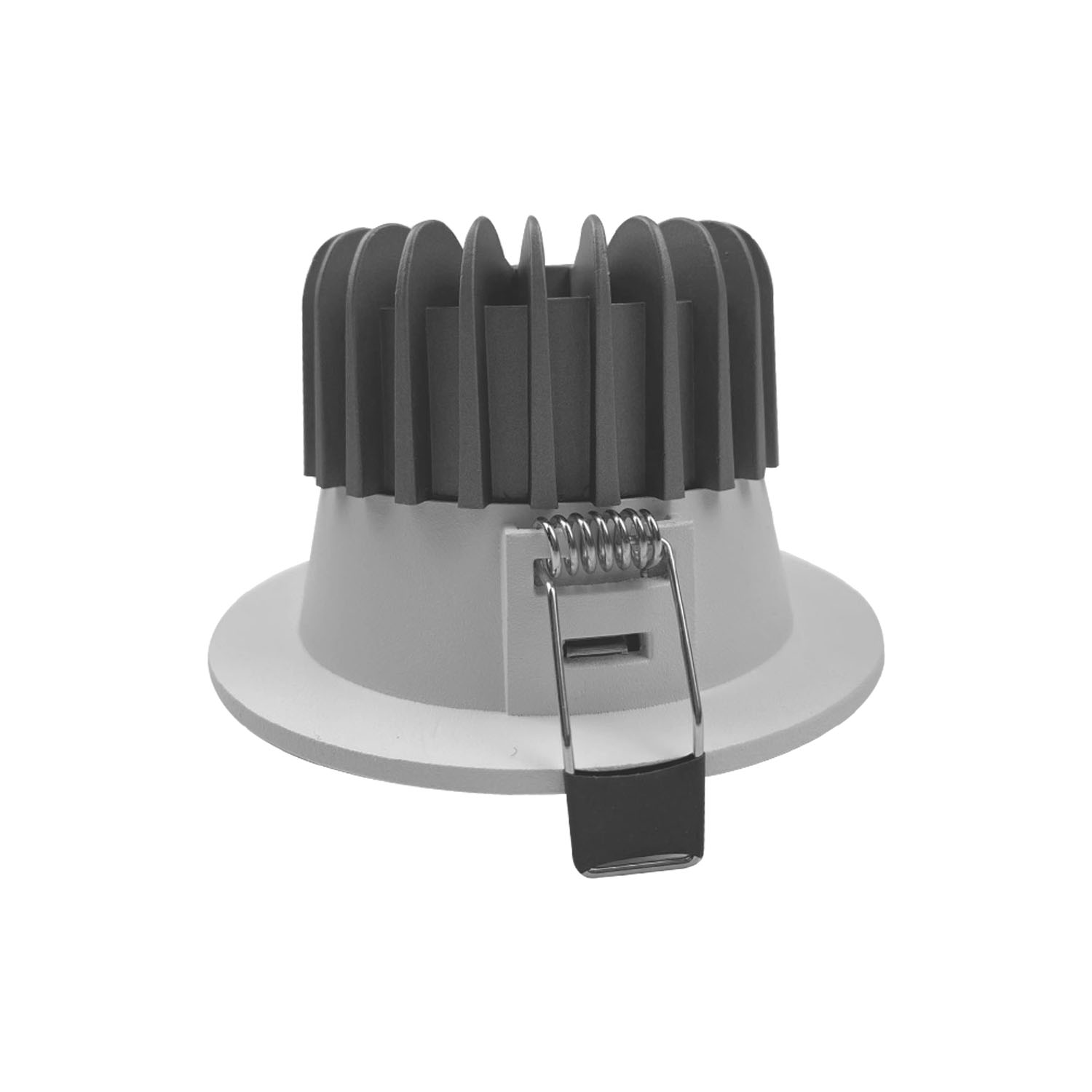

LED Downlight

Production Lead Time:

20-35 day(s)

Shipping Method:

Air Freight, Sea Freight, Express

Model No.:

DL16

Brand:

SIMONS

Customised:

Yes

Input Voltage:

220-240V

Power:

8W, 10W, 12W, 13W, 15W, 18W, 20W, 22W, 24W, 25W, 28W, 30W, 36W

Lumens Efficiency:

80-90lm/w

PF:

>0.9

CRI:

80, 90, 95

CCT:

Single Color (3000K-5000K), 3 CCT

Beam Angle:

24º

IP Rating:

IP44

Material:

Die-casting Aluminum

Cover:

Lens

Working Temperature:

-20~50℃

LED Chip:

COB

Light Body Colour:

White, Black, Grey

Installation:

Recessed

Fascia:

Deep Recessed

Working Frequency:

50/60HZ

Lifetime:

30000Hrs

Application:

hotel, receiption, shop, office, mall, restaurant, bar etc

Certification:

SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80

Origin:

Xiamen, China

Description

Contact Supplier

Features

1. Durable die-cast aluminum body profile

2. Stylish powder coat finish in white or plated satin nickel

3. IC- 4 rated

4. Constant current trailing edge dimmable and non-dimmable driver configurations fitted with flex and plug

5. Dimmer Type: Trailing edge, 0-10V, DALI / DSI, Tuya Smart

6. High efficiency COB chips, CRI>95

7. LED driver with flex and plug

8. Anti-dazzle cup on the light, UGR<19

9. CCT changeable switcher on the driver.

10. Optional to 3-CCT and single CCT.

Models

Model	Power	Cut-out	Diameter	Height
SM-DL17-02-08	8W	80mm	94mm	64mm
SM-DL17-02-10	10W	80mm	94mm	64mm
SM-DL17-02-12	12W	80mm	94mm	64mm
SM-DL17-03-12	12W	95mm	114mm	68mm
SM-DL17-03-13	13W	95mm	114mm	68mm
SM-DL17-03-15	15W	95mm	114mm	68mm
SM-DL17-04-18	18W	120mm	140mm	74mm
SM-DL17-04-20	20W	120mm	140mm	74mm
SM-DL17-04-22	22W	120mm	140mm	74mm
SM-DL17-04-24	24W	120mm	140mm	74mm
SM-DL17-06-24	24W	150mm	184mm	80mm
SM-DL17-06-25	25W	150mm	184mm	80mm
SM-DL17-06-28	28W	150mm	184mm	80mm
SM-DL17-06-30	30W	150mm	184mm	80mm
SM-DL17-06-36	36W	150mm	184mm	80mm
