LED Driver | Environmental Protection | Home Products, Lights & Constructions

Inventronics (Hangzhou) Inc

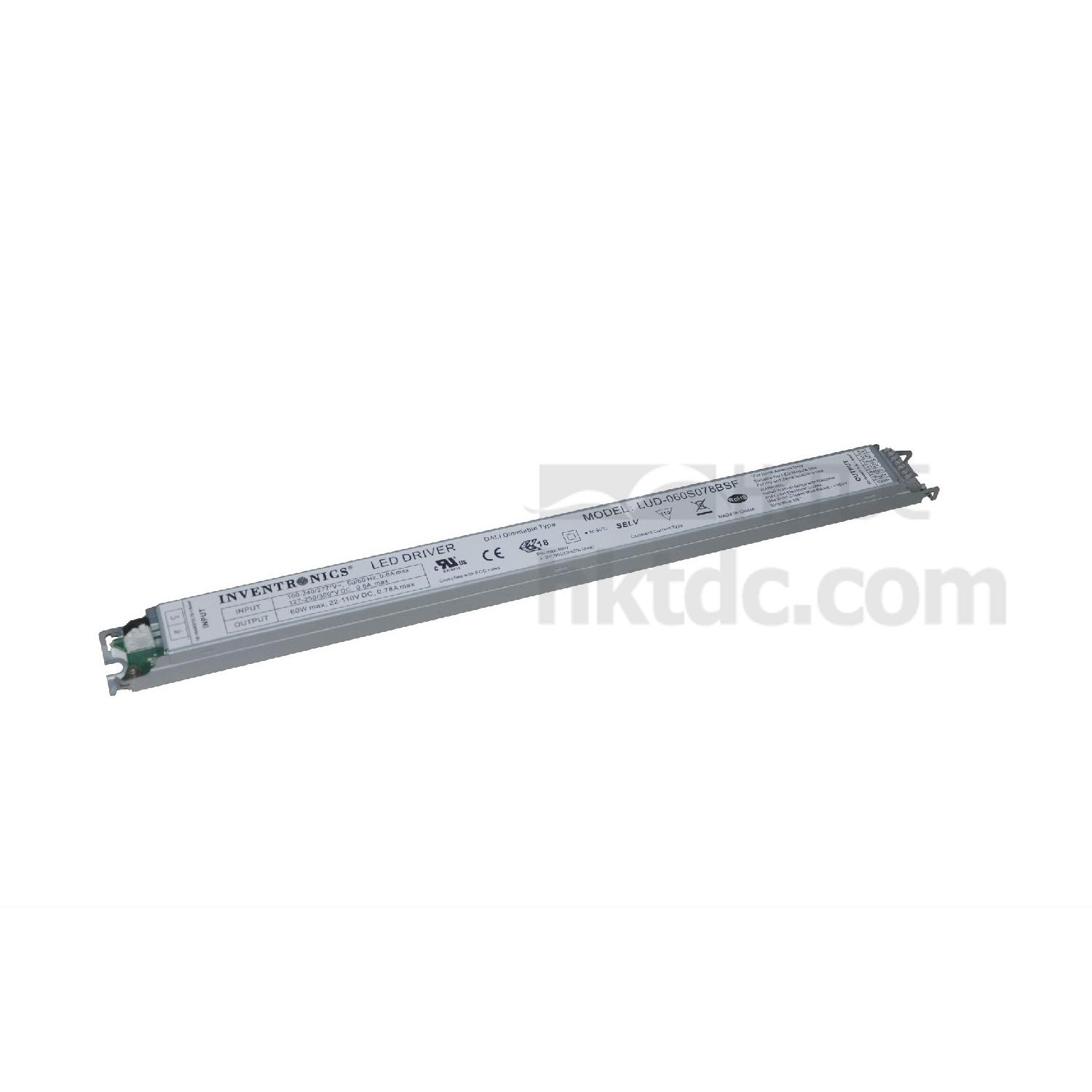

LED Driver

Weight:

380g

Model No.:

LUD-060S078BSF

Brand:

Inventronics

Colour:

Silver White

Size:

418mm*30mm*21mm

Certification:

CE, CQC, FCC, RoHS , UL, ENEC, CB, CUL

Warranty:

5 years

Output Voltage(V):

22-110v

Input Voltage(V):

90-305v

Description

Contact Supplier

Series: indoor series.
Feature: Constant power (60W)
Full Power at 70-100% Max Current (Constant Power)
DALI Dimmable and Dim off
Low Dimming Level to 1% with Good Accuracy
Standby Power ≤0.5 W
Short-circuit, over-voltage and over-temperature protection, external thermal protection NTC, thermal sensing and protection for LED panel/strings.
Power factor: typical 0.9.
THD:20% (Max).
High efficiency: 90%.
Output current: 5.46-780 mA.
Full-power current:546-780mA (output current range with constant power at 60W).
Operating temperature: -30 to +70℃.
Storage temperature: -40 to +85℃.
Constant voltage precision: ±5%.
Humidity: 10-90%RH.
MTBF calculation: up to 204,000 hours.
Lifetime: 120,000 hours.
Lifetime safety approval: UL 8750,UL1310,CAN/CSA-C22.2 No. 250.13-12,CAN/CSA-C22.2 No. 223-M9, EN61347-1, EN61347-2-13
Class II, SELV and Class 2
Complies with DALI protocol IEC62386-101,102 and part of 207
