LED Driver | Environmental Protection | Home Products, Lights & Constructions

Inventronics (Hangzhou) Inc

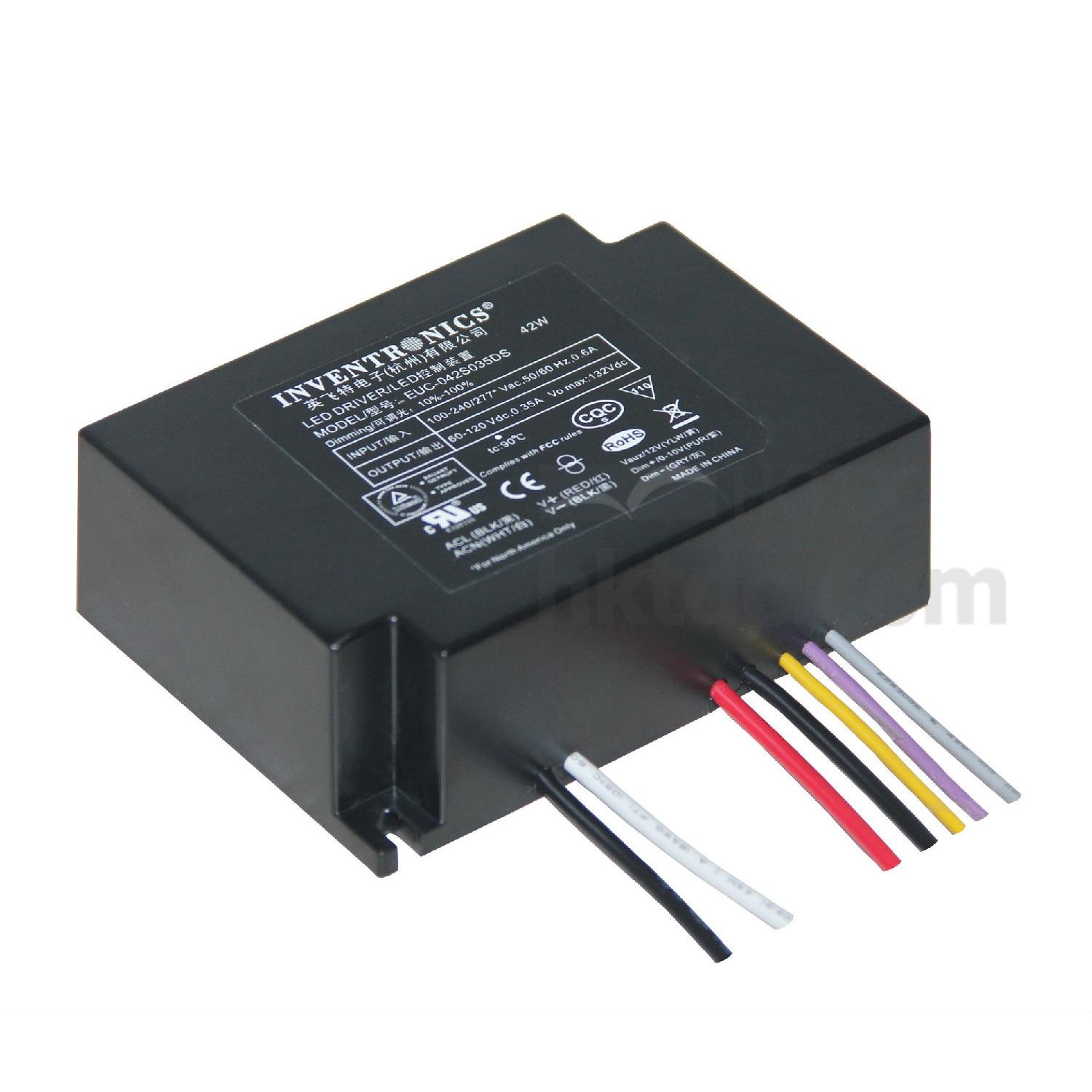

LED Driver

Production Lead Time:

21 day(s)

Weight:

350g

Model No.:

EUC-042S035DS

Brand:

Inventronics

Colour:

Silver White

Size:

95mm*70mm*32mm

Certification:

CCC, CE, FCC, PSE, RoHS , UL, ENEC, TUV, CB,CUL

Warranty:

5 years

Output Voltage(V):

60-120Vdc

Input Voltage(V):

90-305Vac

Description

Contact Supplier

Series: outdoor series.
IP66 and damp location
Dimming control
Feature: Constant current (350mA)
Short-circuit, over-load, over-voltage and over-temperature protection
APFC: typical 0.95.
THD:20% (Max).
Typical efficiency: 90%.
Operating temperature: -40 to +70℃.
Storage temperature: -40 to +85℃.
Output current tolerance: ±5%.
Humidity: 5-100%RH.
MTBF calculation: 327,000 hours.
Lifetime: 116,000 hours.
Lifetime safety approval: UL8750, UL1012, UL1310 Class 2, CSA-C22.2 No. 107.1, CSA C22.2 NO. 223-M91 Class 2, EN 61347-1, EN61347-2-13, GB19510.14-2009, GB19510.1-2009, GB17743-2007, GB17625.1-2003
SELV and Class 2
