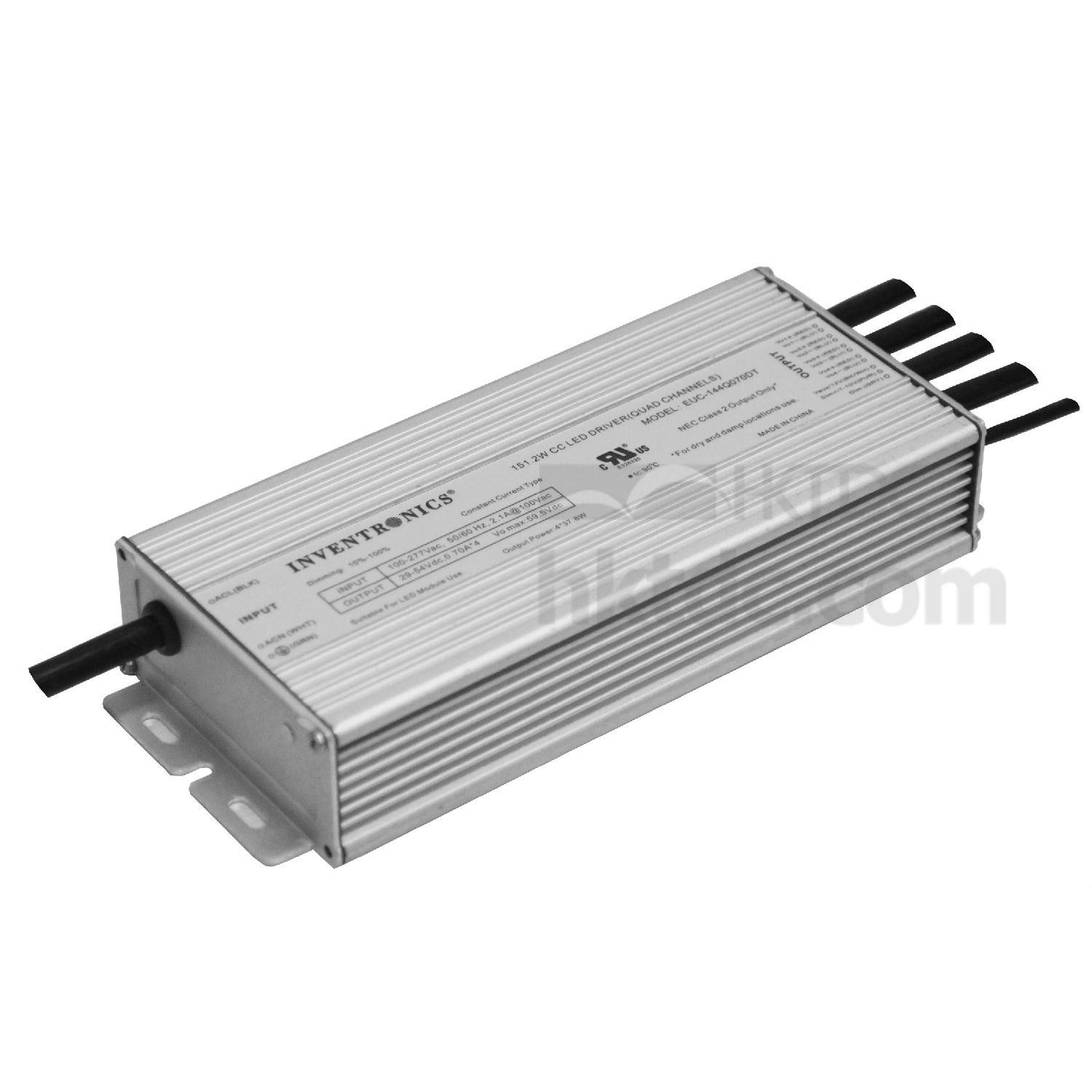

LED Driver

Weight:

1340g

Model No.:

EUC-144Q070DT

Brand:

Inventronics

Colour:

Silver White

Size:

188mm*88mm*38mm

Certification:

CE, FCC, UL

Warranty:

5 years

Output Voltage(V):

29-54Vdc

Input Voltage(V):

90-305Vac

Description

Contact Supplier

Series: outdoor series.
IP67 and damp & wet location
Feature: Constant current (700mA)
Four channels output
Short-circuit, over-voltage and over-temperature protection
Lightning protection
APFC: typical 0.99.
THD:20% (Max).
Typical efficiency: 91%.
Operating temperature: -40 to +70℃.
Storage temperature: -40 to +85℃.
Output current tolerance: ±5%.
Humidity: 5-100%RH.
MTBF calculation: 383,000 hours.
Lifetime: 95,000 hours.
Lifetime safety approval: UL8750, UL1012, UL1310 Class 2, CSA-C22.2 No. 107.1, CSA C22.2 NO. 223-M91 Class 2, EN 61347-1, EN61347-2-13
SELV and Class 2
