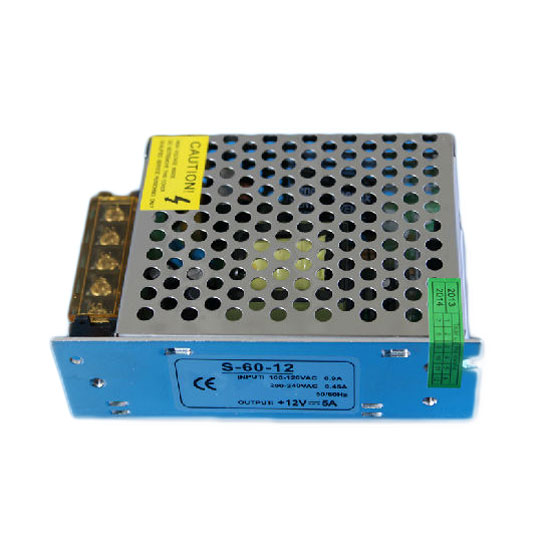

This is an LED driver coming in a rectangular shape. It offers stable and reliable electrical power to your LED fixtures. Professionally engineered, this LED driver is easy to install and use.

• Power: 60W.
• IP rating: IP20.
• Input voltage: AC90-240V.
• Frequency: 47-63Hz.
• Input current: 12A/5A/2.5A.
• Inrush current: cold state 20A@120V AC.
• Output voltage: DC5V/DC12V/DC24V (±10%).
• Hold time (typ.) ≧20mS (230V input, Io=100%).
• Adjustable voltage rate: (full load)≦0.5%.
• Overloading: 105%-150% nominal power, auto. recover.
• Over-voltage: 105%-150% nominal voltage.
• Dielectric strength: Input-output: 1,500VAC/1minute.
• Input - ground wire: 1,500VAC/1minute.
• Output - ground wire: 500VAC/1 minute.
• Safety: conform to GB4943, UL60950 and EN60950.
• EMC: conform to GB9254 and NE55022 class A, EN61347-2-13:2008.
• Operating temperature: -20℃- 60℃.
• Operating humidity: 20%-90% RH (Without Frost).
• Storage temperature: -40℃-80℃.
• Operating humidity: 10%-95% RH (without frost).
• Cooling way: convection cooling.
• Weight: 0.22kg/pc.
