LED Driver
US $11.95 - US $12.95
Production Lead Time:
5 day(s)
Shipping Method:
TNT/DHL/FedEx/UPS/Air/Sea
Brand:
K&C FULIGHT
Model No.:
KD-50-1050-1400-G1D2
Material:
retardant PC materials
Application:
downlight,spotlight,wall light ,Also for class l light
Power Source:
AC Power
Description
Contact Supplier
Description
Features
·Single channel output, output current level selectable by DIP S.W.
·Meet DALI Protocol IEC 62386-207
·Support Touch DIM (Push DIM)function
·High efficiency up to 88%
·Built-in active PFC function
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load, no load
·Suitable for indoor LED lighting application, such as down light, panel light, and so on

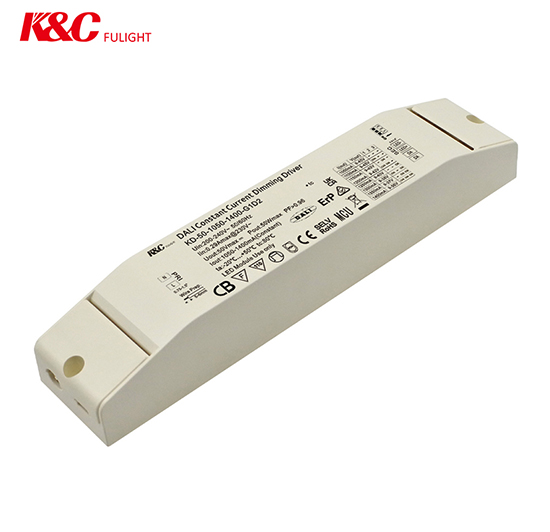

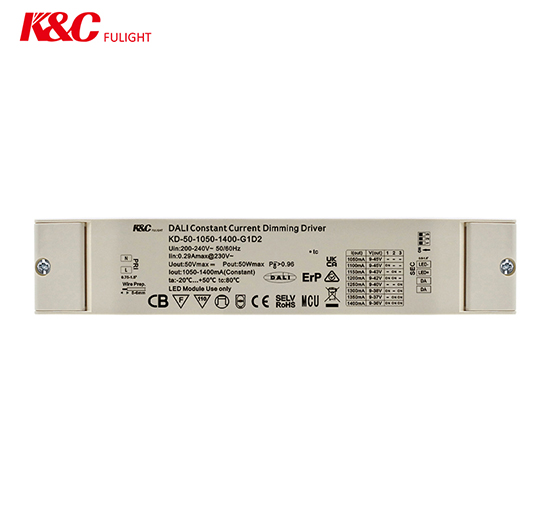

50W 1050/1100/1150/1200/1250/1300/1350/1400mA Constant Current DALI Driver KD-50-1050-1400-G1D2(DALI-2)
KD-50-1050-1400-G1D2 is a 50W AC/DC constant current mode output LED driver featuring the
multiple levels selectable by DIP switch and complies with DALI standard protocol IEC62386.
KD-50-1050-1400-G1D2 can be connected to DALI main controller or Touch DIM(Push DIM) to
achieve a smooth dimming effect.
Technical Parameter
| Model | KD-50-1050-1400-G1D2 | ||
| Input | Efficiency | 87%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | 0.95@230VAC,Full load | ||
| THD | <10%@230VAC, Full load | ||
| Current | 0.28Amax@230VAC, Full load | ||
| Inrush Current | Cold start,40A(twidth=30us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) | 1050mA/9-45VDC/47.25W 1100mA/9-45VDC/49.5W 1150mA/9-43VDC/49.45W 1200mA/9-42VDC/50.4W 1250mA/9-40VDC/50W 1300mA/9-38VDC/49.4W 1350mA/9-37VDC/49.95W 1400mA/9-36VDC/50.4W | |
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| Standby Power | <0.5W | ||
| No load output voltage | 50VDC Max | ||
| Turn On Delay Time | <1.5s, at 230Vac | ||
| Function | Dimming Mode | DALI DT6 | |
| Dimming Range | 0.1%-100% | ||
| Protection | No Load | The LED Driver will not be damaged. | |
| Short Circuit | No Output, recovers automatically after fault condition is removed | ||
| Over Load | Hiccup mode, recovers automatically after fault condition is removed | ||
| Safety | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:60℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >25,000 times | ||
| Packing Size | 375*330*180mm(L*W*H), 11Kg±5%/Carton/50PCS | ||

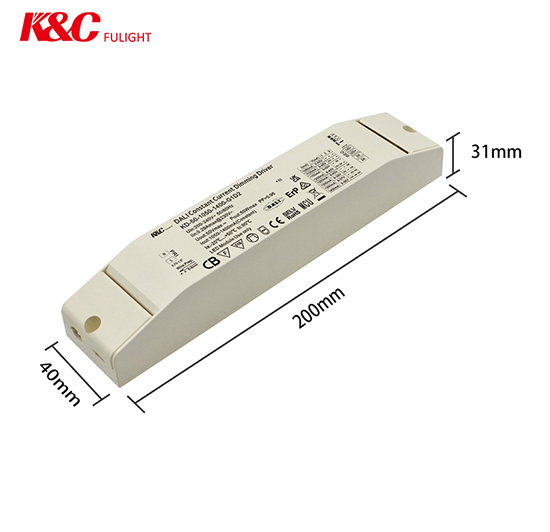

| Dimension | 200*40*31mm(L*W*H) | ||
| G.W | 200g±5% | ||
