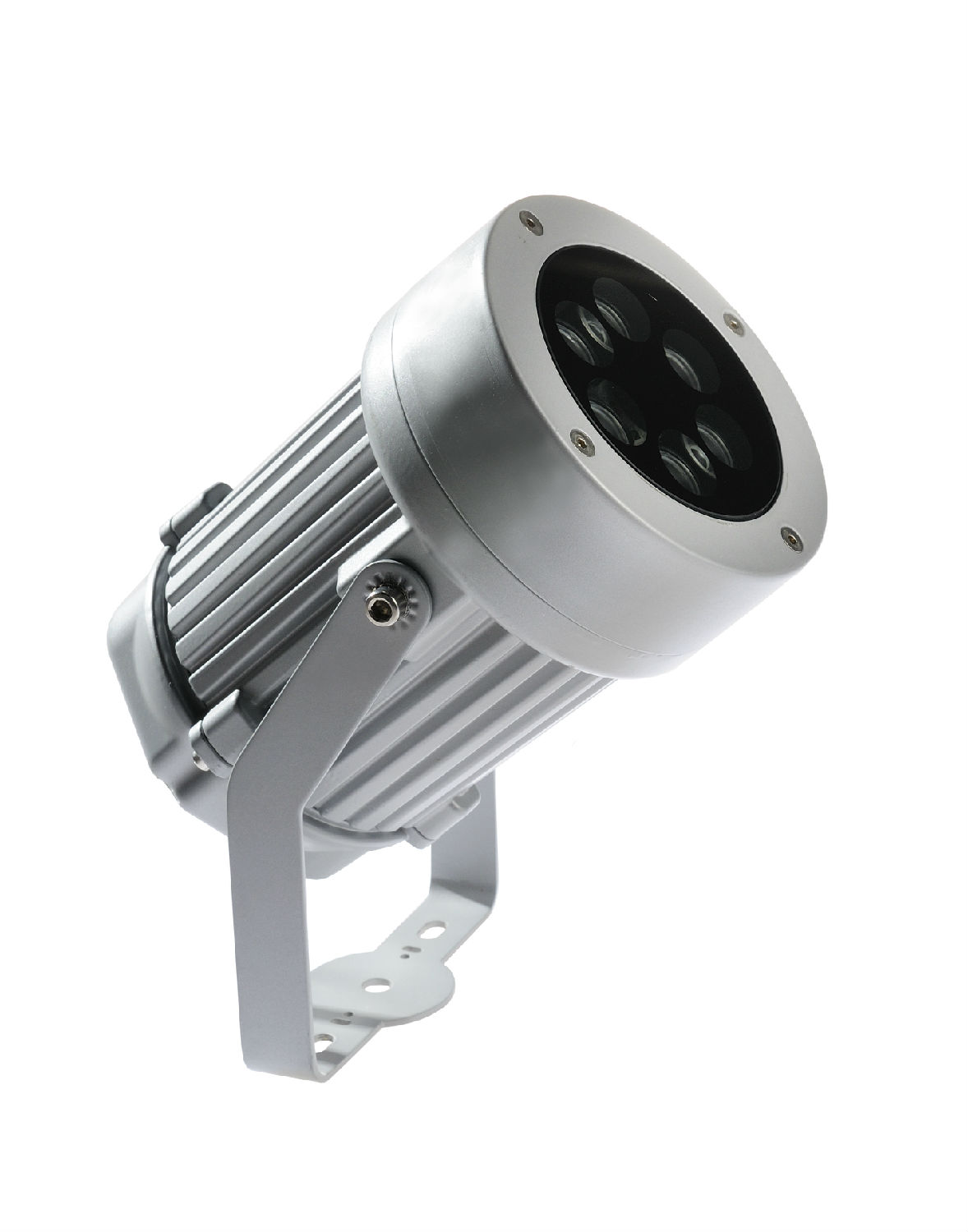

LED Floodlight
Model No.:
F1015
Brand:
Roled
Colour:
Red,Green,Blue,Amber,White,warm white

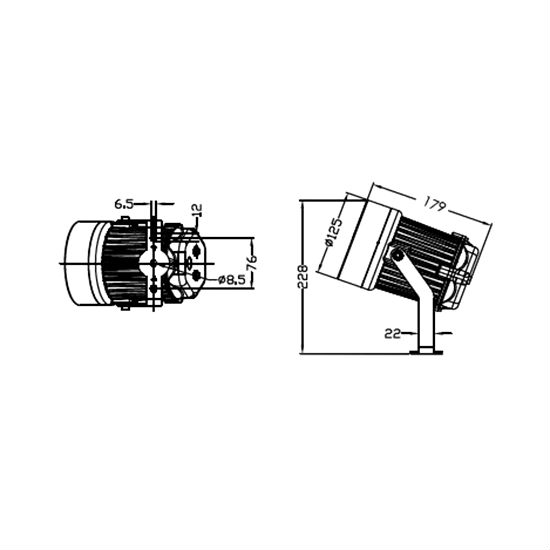

Size:
see the dimension
Port:
Shanghai
Type of Payment:
T/T
Minimum Order Quantity:
1-50 piece(s)
Protection Level:
IP66
Customized:
Yes
Voltage(V):
Universal voltage
Certification:
CE
Light Source:
LED floodlight
Body Material:
Aluminum
Power Source:
AC
Style:
Modern
Finish:
silver gray powder paint with high corrosion resistance.
Including Bulbs:
Yes
Applicable:

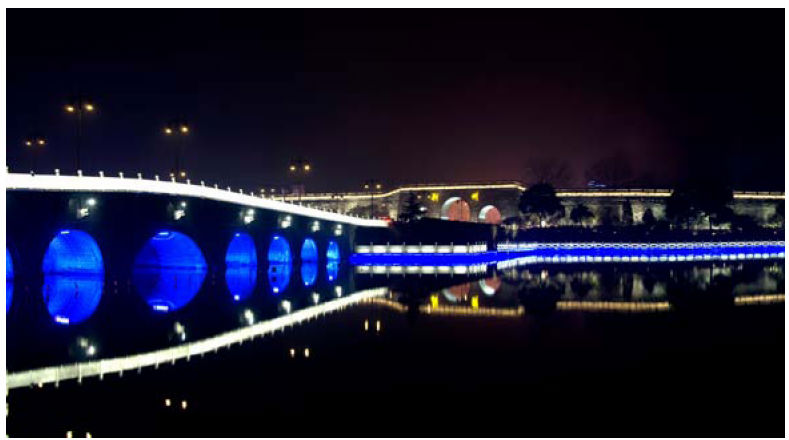

Buildings Wall, Town Square
Description
Contact Supplier
Description
Waterproof:
Technical parameter
- Adopt new patent of air filter device for preventing moisture
- condensation inside the luminaire. (new model patent No.：
- ZL200720068796.X；Outlook patent No.：ZL200730075322.3）
- Anti-static:Special electronic component and circuit against static (ESD) and surge has been adopted according to the standard of IEC61000-4(level 4).Max.(Peak Current)up to 3000 A(8/20μs).
- 1. Integrated heating solution to guarantee the LED luminous
- efficiency and life span.
- 2. Imported silicon rubber material is adopted for waterproof
- gasket.
Technical parameter
- Type F1015A/B series (Professional)
- LED Germany OSRAM、 USA LUMILEDS、USA CREE, Imported Light Emitting Diode(LED)
- Single LED Wattage 1 W/3W
- LED lifespan 50,000 hours
- LED quantity 6 pcs
- LED color (single color) Red、Green、Blue、Amber、White、Neutral white、Warm white
- LED color (color changing) Red、Green、Blue

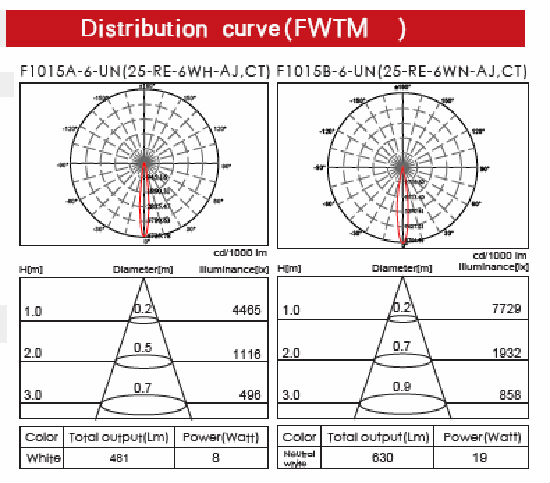

- Beam angle 15°/25°/40°/60°
- Housing Die-cast aluminum , silver gray powder paint with high corrosion resistance.
- Glass material 8mm thickness tempered glass, surface color Jasper black
- Power input 100～240VAC±10%, 50/60Hz
- LED driver 350mA/700mA constant current driver
- Power consumption 8W/19W
- Anti-static IEC61000-4（Level 4）
- Ingress protection IP66
- Classification Ⅰ
- Power cable 3×1. 0mm2 rubber cable
- Signal cable double screen for 4 pairs signal cable STP-5E
- Control DMX512 Compatible(1990)
- Ambient operating Temperature -20℃~+55 ℃(Ta+10℃)
- Power Factor(PF) 0.88（A）/0.94（B）
- Inrush Current(MAX) 43A
- Net weight 2.9 KG
