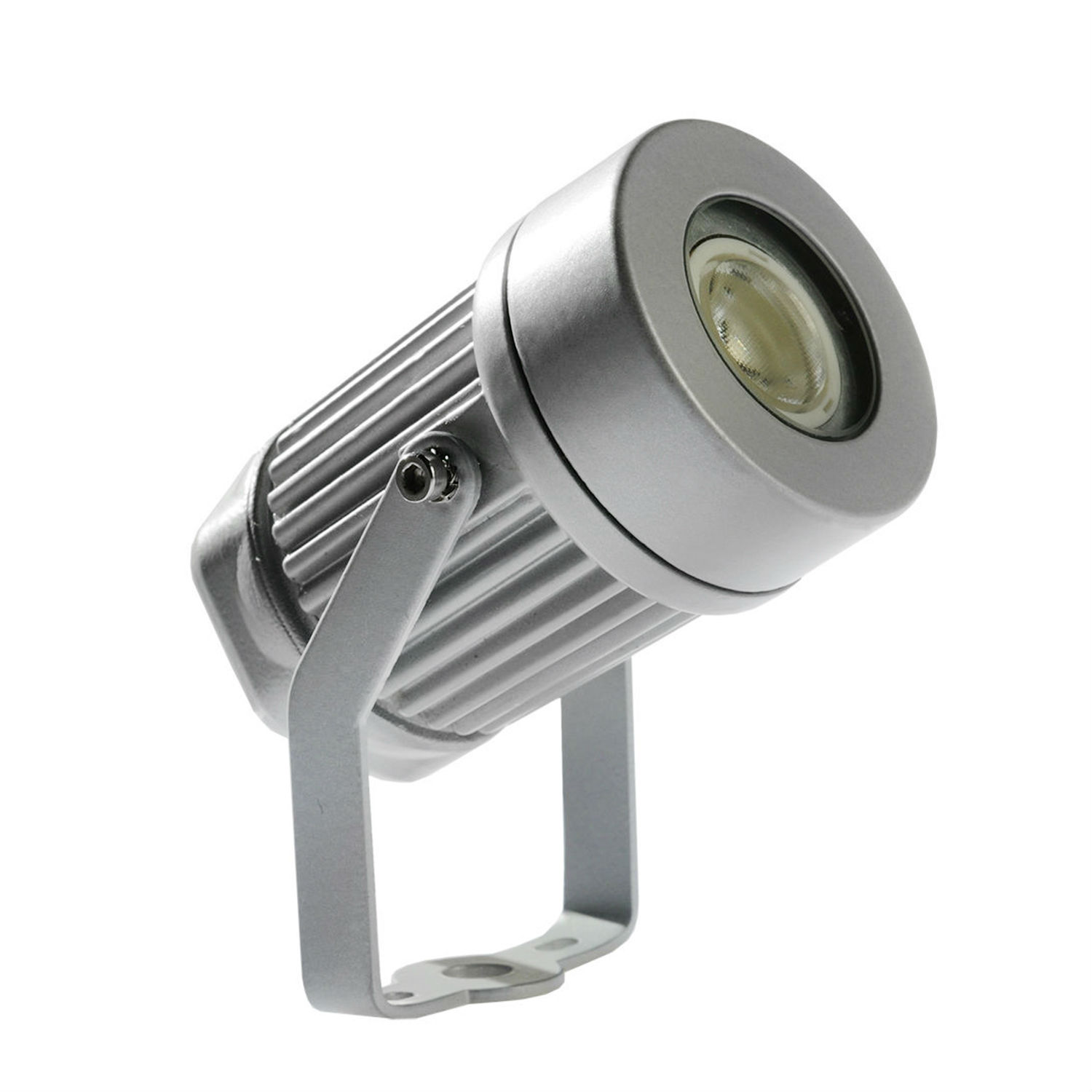

LED Floodlight
Model No.:
F1011
Brand:
Roled
Colour:
Red,Green,Blue,Amber,White,Neutral white
Size:

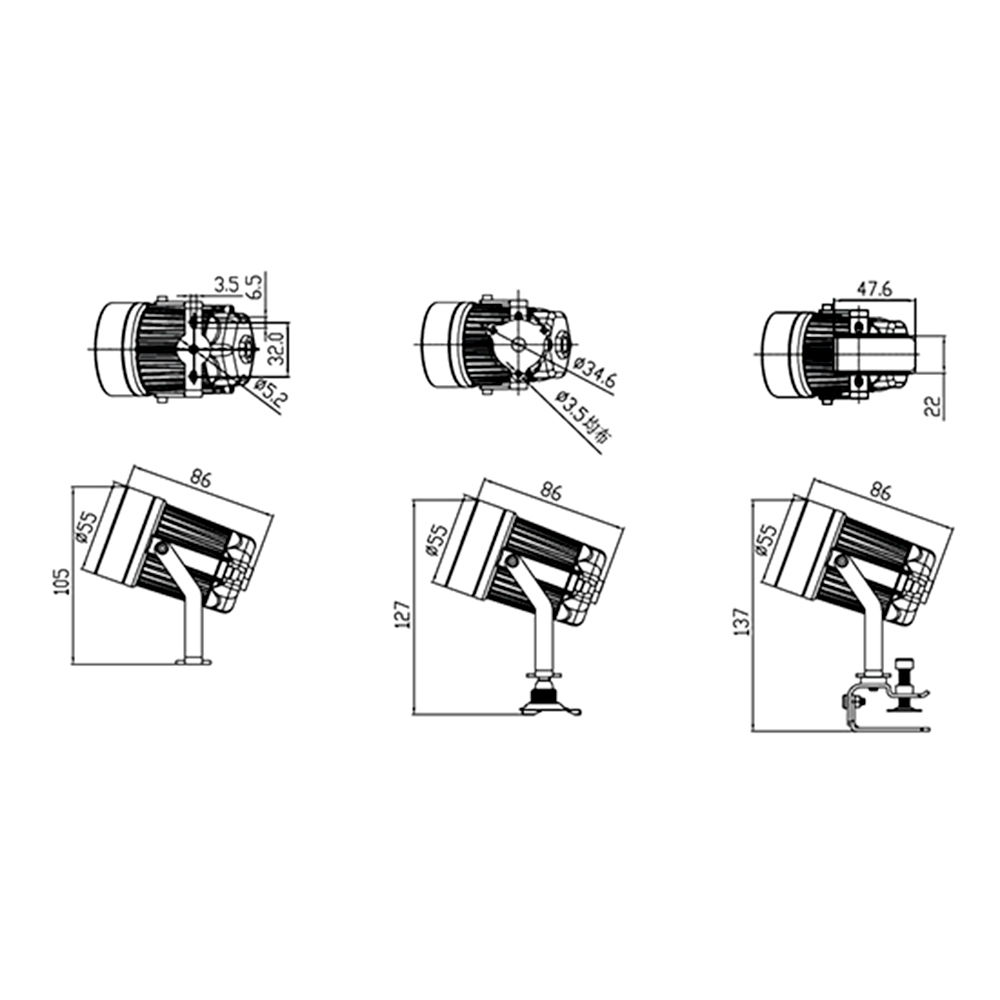

diameter 55mm,refer to the dimension
Port:
Shanghai
Type of Payment:
30% down payment,70% T/T before delivery
Minimum Order Quantity:
1-50 piece(s)
Protection Level:
IP66
Customized:
Yes
Voltage(V):
Universal voltage
Certification:
CE
Light Source:
LED floodlight
Body Material:
Aluminum
Power Source:
AC
Style:
Modern
Finish:
ilver gray powder paint with high corrosion resistance
Including Bulbs:
No
Applicable:
Buildings Wall, Town Square
Description
Contact Supplier
Description
configuration:
- 1. Integrated heating solution to guarantee the LED luminous
- efficiency and life span.
- 2. Imported silicon rubber material is adopted for waterproof
- gasket.
- the advantages are as followings：
- 1.Easy for the installation of control system and solving
- the waterproof issue of decoder,cost saving for the overall
- installation of control system.
- 2.Time saving for the overall commission of LED projects

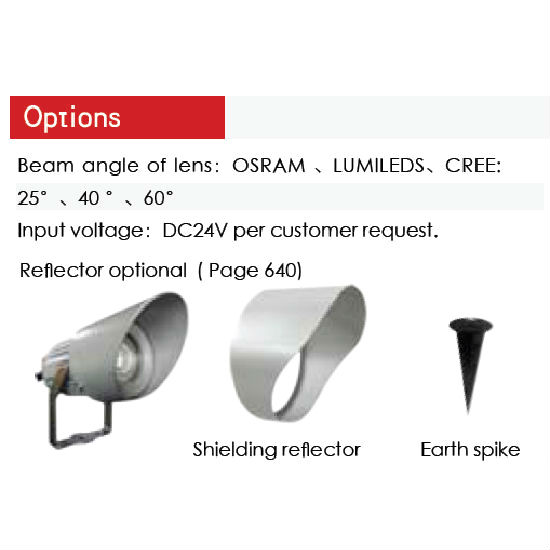

- Multiple brackets are available for different applications.
- Type F1011A/B series (Professional)
- LED Germany OSRAM、 USA LUMILEDS、USA CREE Light Emitting Diode(LED)
- Single LED Wattage 1 W/3W
- LED lifespan 50,000 hours
- LED quantity 1 pcs
- LED color (single color) Red、Green、Blue、Amber、White、Neutral white、Warm white

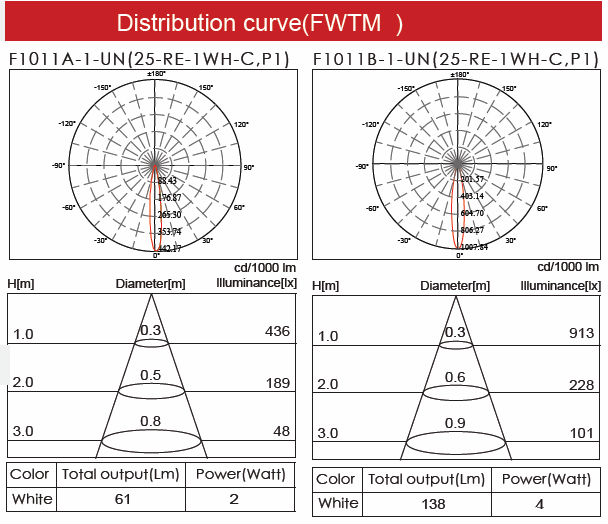

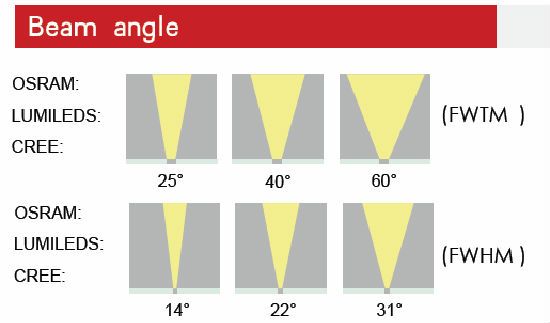

- Beam angle 25°/40°/60°
- Housing Die-cast aluminum , silver gray powder paint with high corrosion resistance.
- Glass material 5mm thickness tempered glass
- Power input 100～240VAC±10%,50/60Hz
- LED driver 350mA /700mA constant current driver
- Power consumption 2W/4W
- Anti-static IEC61000-4（Level 4）
- Ingress protection IP66
- Power cable 3×1. 0mm2 rubber cable
- Classification Ⅰ
- Ambient operating Temperature -20℃~+55 ℃(Ta+10℃)
- Power Factor(PF) 0.54
- Inrush Current(MAX) 30A
- Net weight 0.37 KG
