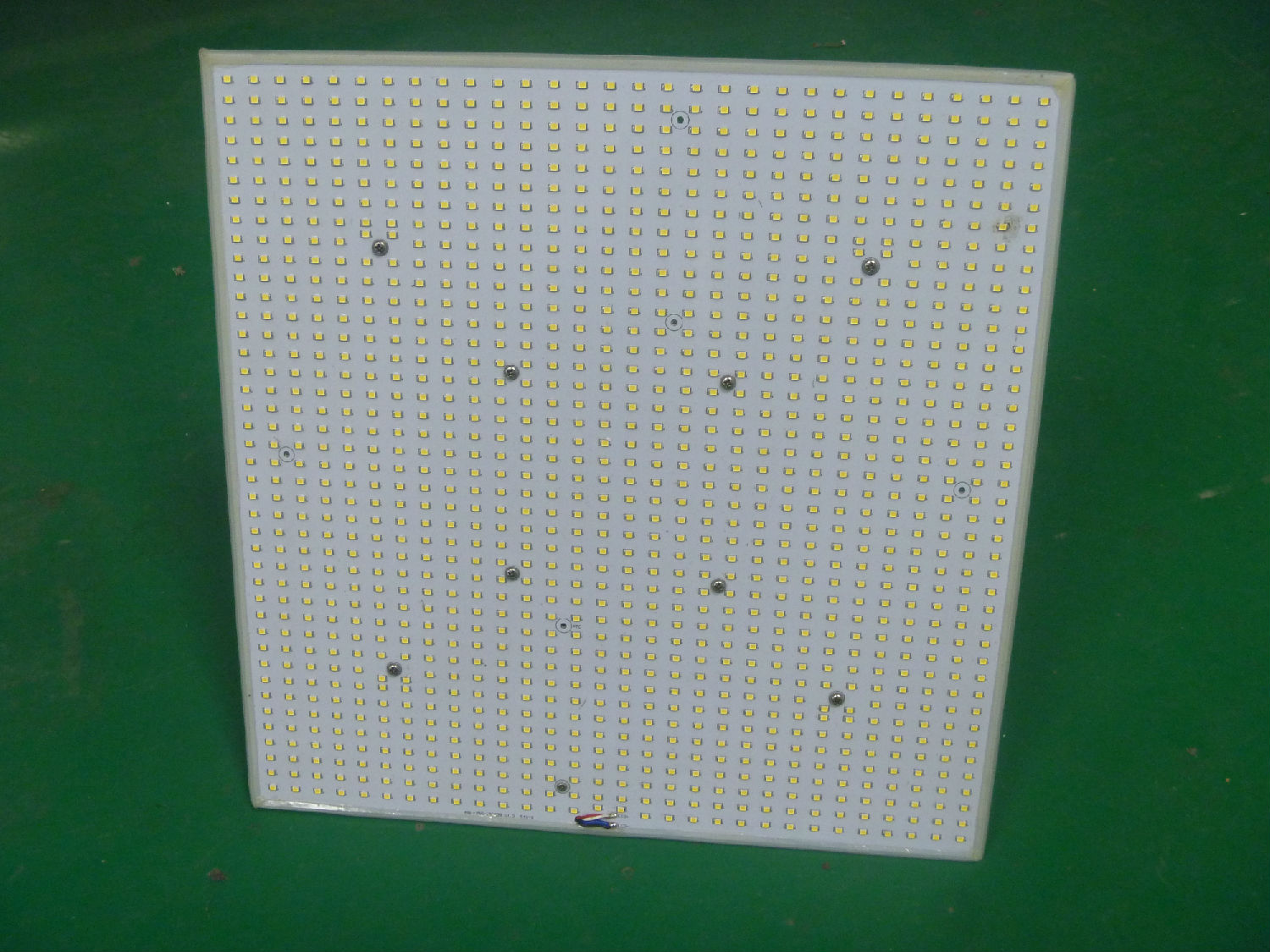

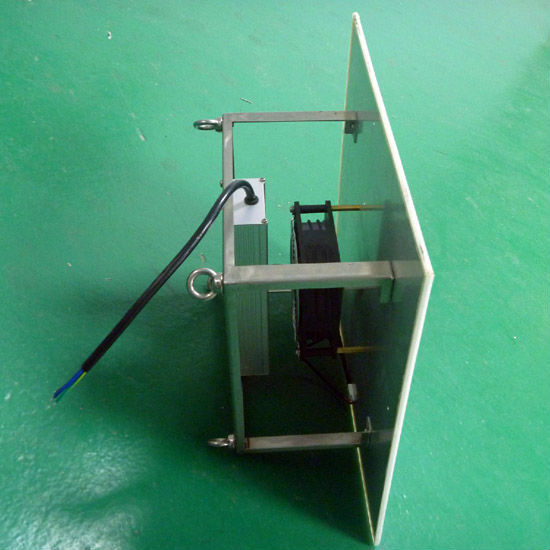

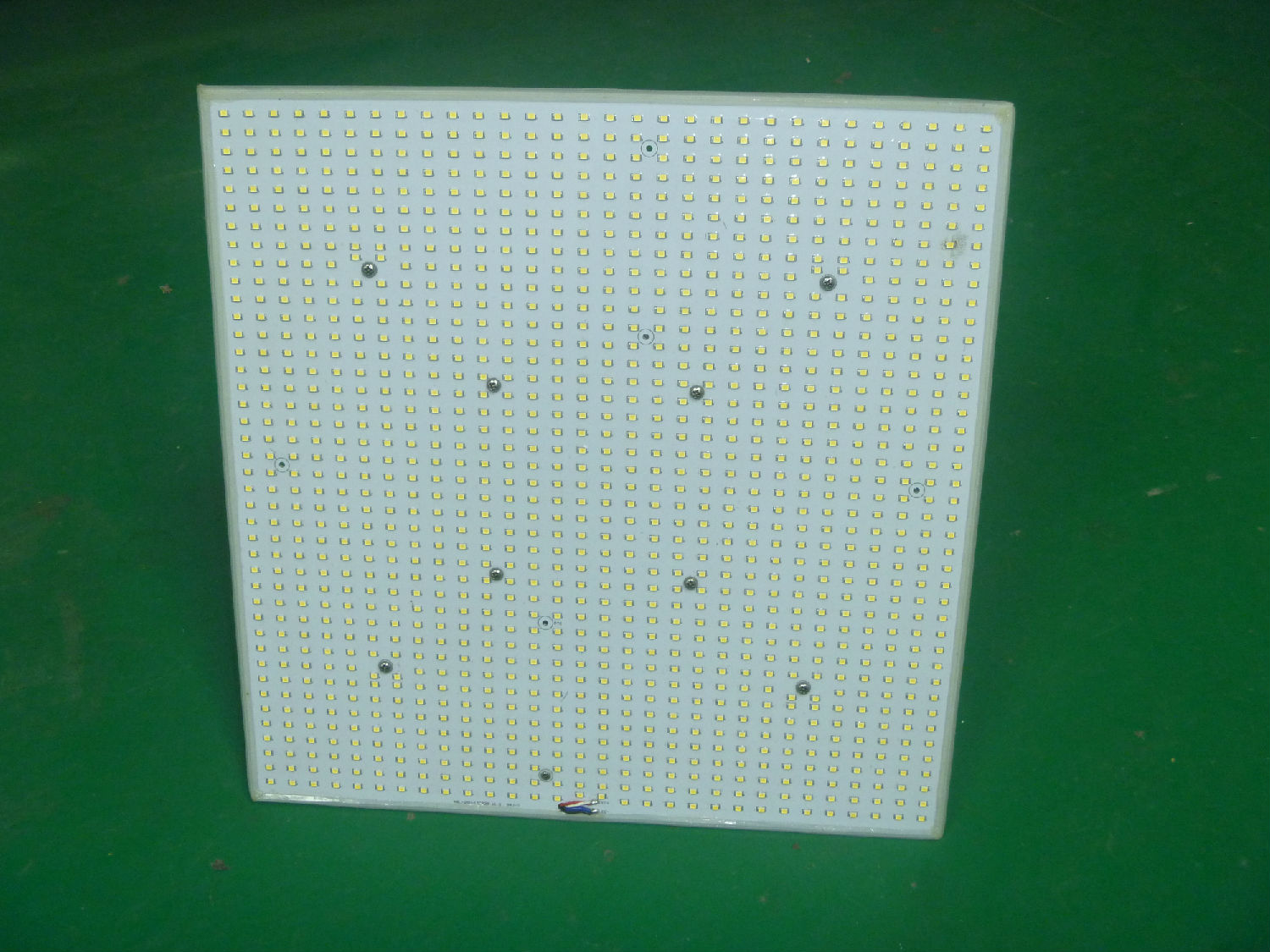

LED High Bay Kit
Production Lead Time:
28 day(s)
Brand:
Ausllast
Colour:
Natural color
Size:
Dimensions (LWH): 400*400*180mm
Port:
Shenzhen
Type of Payment:
30% deposit
Minimum Order Quantity:
50
Voltage(V):
90-265V
Certification:
CE, FCC, SAA, UL, TUV; IP65
Wattage(W):
240W
Warranty:
5 year
Light Source:
LED Bulb
Body Material:
Aluminum
Is Dimmable:
No
Power Source:
AC
Including Bulbs:
Yes
Customized:
Yes
Description
Contact Supplier
Description
- High bay kits with up to 50%-70% energy saving
- Materials: 2mm aluminum PCB, SS bracket, 4SS eyebolts, quality cooling fan, Meanwell HLG driver
- Dimensions (LWH): 400*400*180mm
- Mounting: Suspend
- Output Rated Power: 240W
- Efficacy (single LED): 140LM/W
- Efficacy (SSL): 130Lm/W
- Application: Commercial & Industrial
- Driver type: Meanwell HLG driver HLG-240H-48A
- Driver efficiency: 92%
- Driver power factor: 0.98
- Input voltage: 90-265VAC
- Output voltage: 45VDC
- Output current: 5A
- Single LED bead current/voltage: 60mA / 3V (2835 0.2W)
- LED type: 2835 0.2W Hongli Tronic
- LEDs Quantity: 15*82=1230pcs
- Beam angle: 120°
- Operating LED junction temp in SSL: 50℃
- CRI: 82
- Life at nominal operating temp: 50000 hours
- Warranty: 5 years
- Colour temp: As per client request
- Certificate: TUV/UL/FC/IP65 for driver, LM80 for LED 2835, CE for cooling fan
