LED IP54 CRI97 Downlight
Share this page
Production Lead Time:
7 day(s)
Model No.:
DL97
Colour:
white, black
Port:
Shenzhen
Type of Payment:
T/T, L/C, Pay Pal
Minimum Order Quantity:
1 carton
Voltage(V):
AC100-240V
Certification:
CE, RoHS, CB, SAA
Wattage(W):
7W 10W 13W 15W 18W 25W 35W
Body Material:
Polycarbonate (PC), Aluminum
Is Dimmable:
Yes
Power Source:
AC
Style:
Modern
Install Style:
Embeded
Description
Contact Supplier
Description

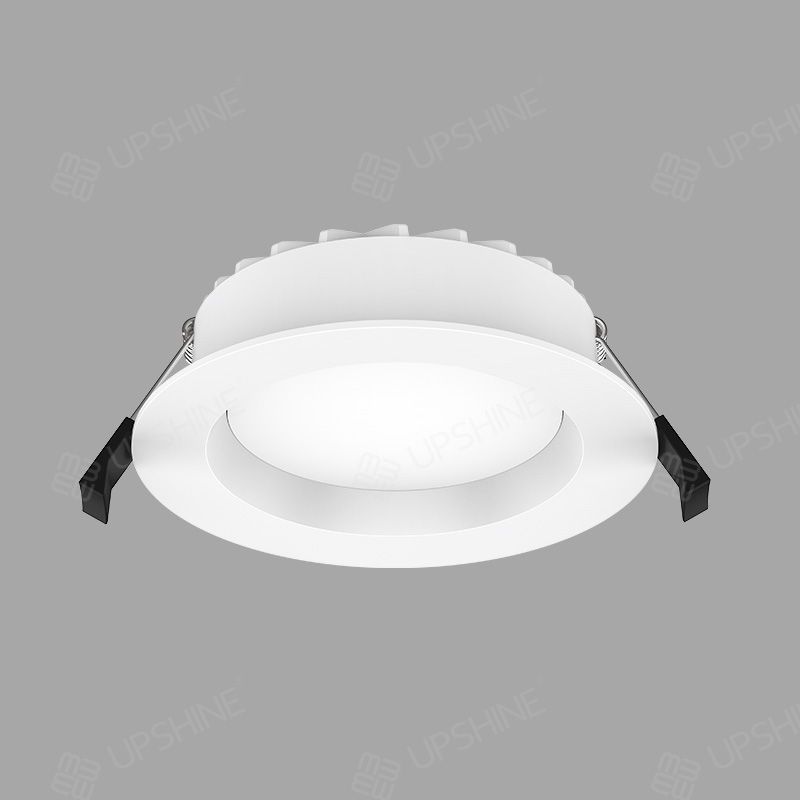

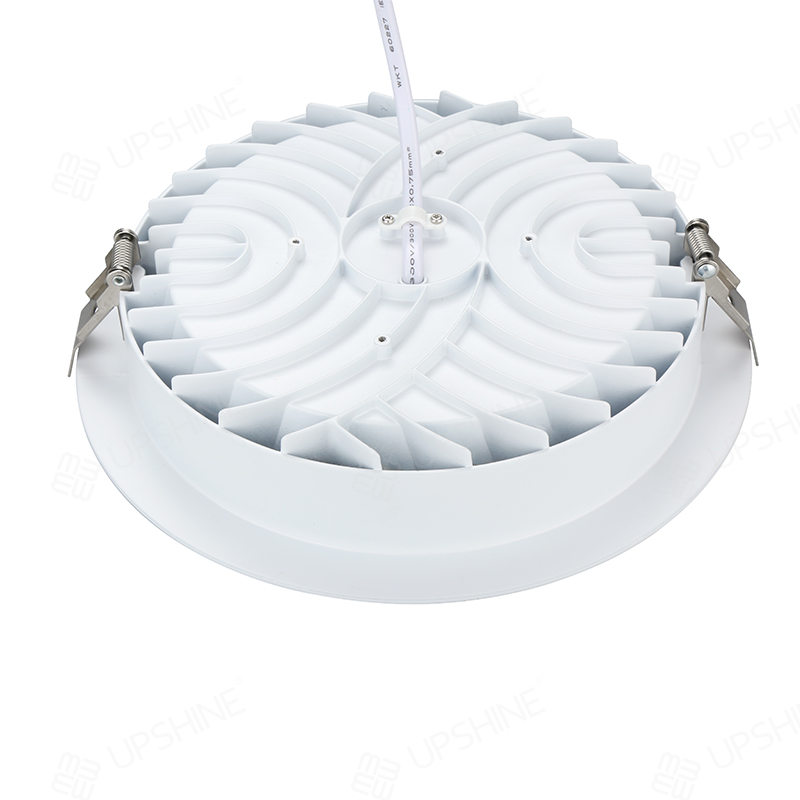

LED IP54 CRI97 Downlight (DL97)

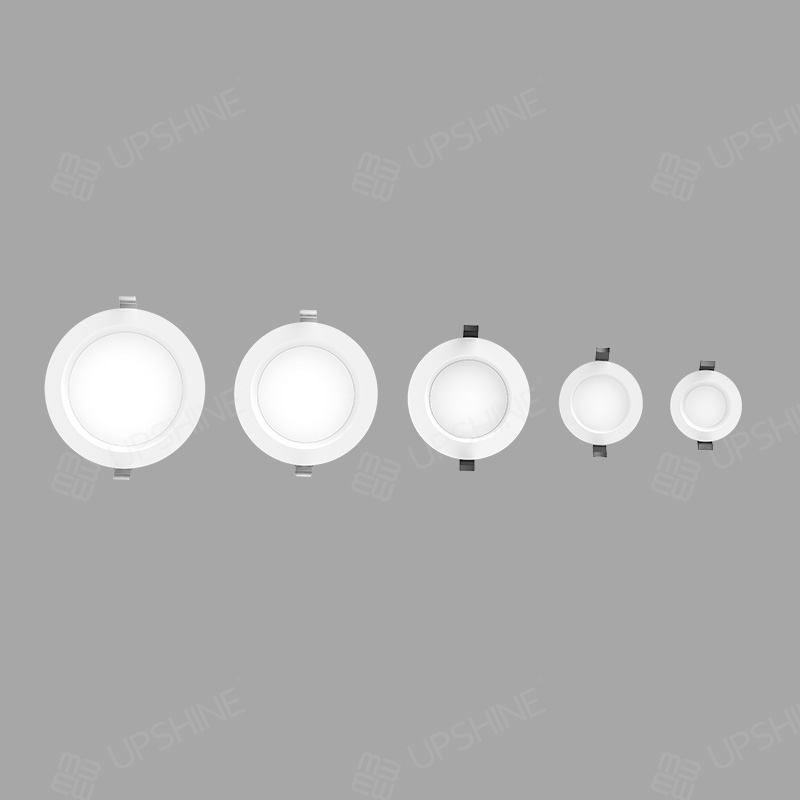

90° Beam angle IP54, IK06,DIM to Warm, CRI80, CRI97  3000K 4000K 5000K 5700K Size: diameter85*39mm(7W), Cutout70-75mm diameter100*38mm(10W 13W), Cutout90-95mm   diameter120*45mm(13W), Cutout100-110mm

diameter170*45mm(18W), Cutout140-150mm

diameter190*45mm(18W 25W 35W), Cutout160-170mm

diameter228*45mm(25W35W), Cutout200-210mm


DL97 series adopts high lumen SMD LED, PC diffuser with even light output. White, silver, chrome surface treatment are available for customer’s preference. Triac dimmable, 0-10V dimmable and DALI dimmable version share great popularity by excellent dimming effect.


1. Up to 70% energy saving compared to standard CFL.

2. Long lifetime of 40,000 hours.

3. Dimmable when using triac dimmer.

4. 90° wide beam angle.

5. CCT: 3000K / 4000K / 5000K / 5700K.

6. No UV/IR light.

7. Environment friendly, without Mercury or any other hazardous substances.


Application Areas:

It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
